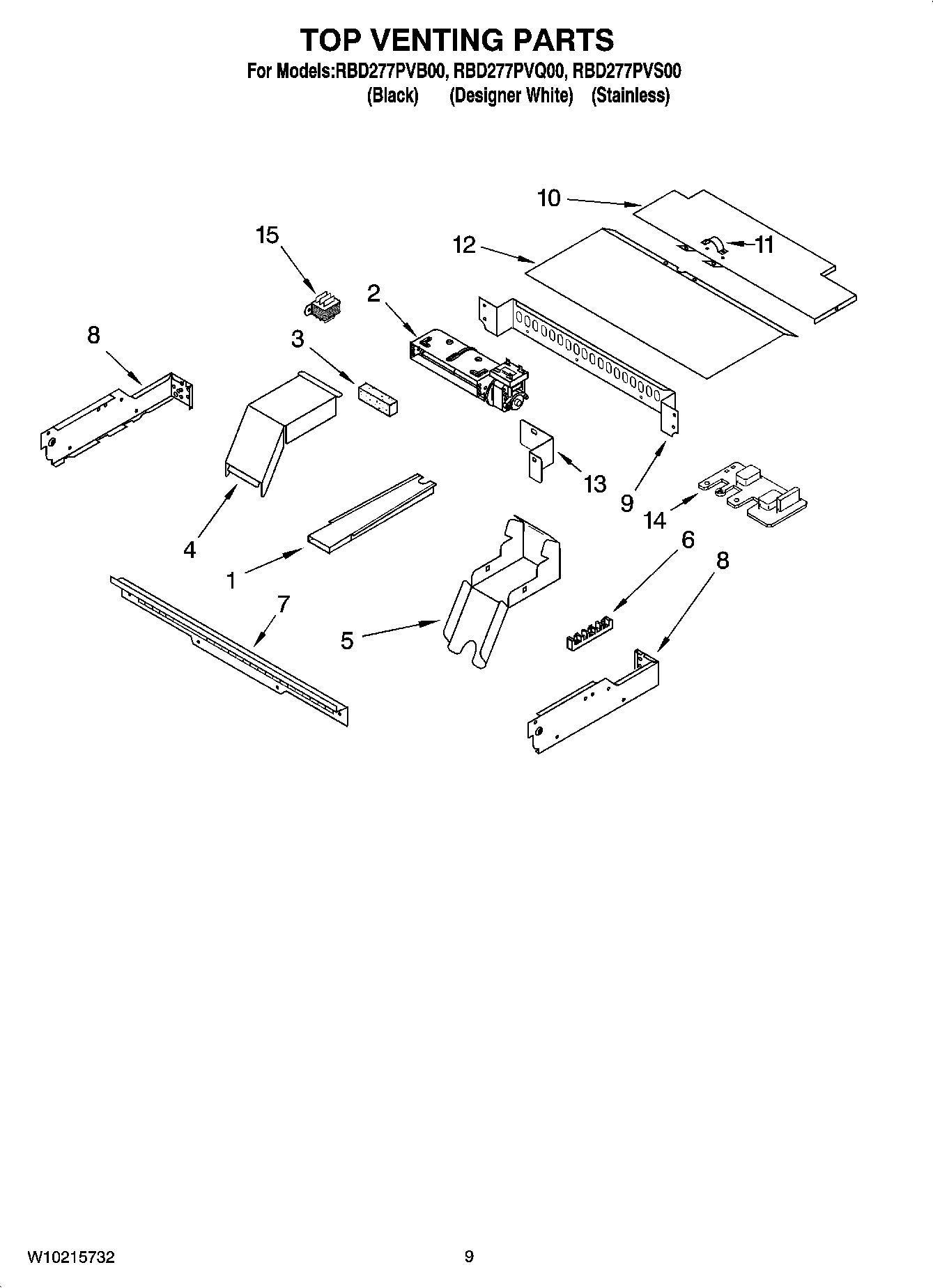

RBD277PVB00 07 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WIRING HARNESS PARTS
Conduit, Double
4452400 Whirlpool Microwave Wire Harness
WP261869 Whirlpool Microwave Paint
WPL 591014
4451761 Whirlpool Oven Support Bracket
261900 Whirlpool Microwave Spray
8301909 Whirlpool Oven Wire Harness
Miscellaneous
WPL 8301777
ADHESIVE
WP4448950 Whirlpool Screw
8528351 Whirlpool Clip
WP482338 Whirlpool Refrigerator Adhesive
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
Nut
4448664 Whirlpool Oven Mounting Bracket
4450800 Whirlpool Oven Screw
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
1Screw
14451759 Whirlpool Oven Exhaust Vent
2WPW10016550 Whirlpool Blower Cooling Fan
3W10491987 Whirlpool Foam Seal
44455178 Whirlpool Oven Top Elbow
54455177 Whirlpool Oven Bottom Elbow
6WP8203546 Whirlpool Terminal Block
6Screw
7WP4450038 Whirlpool Screw
7VENT, CONTROL PANEL
8W10755214 Whirlpool Side Complete
8W10790240 Whirlpool Side Assembly Complete
9Back, Control
10Cover, Top Rear
11WP112432 Whirlpool Nut Assembly
12Cover, Top Front
138302390 Whirlpool Support Bracket
14SUPPRESSOR
15Transformer
