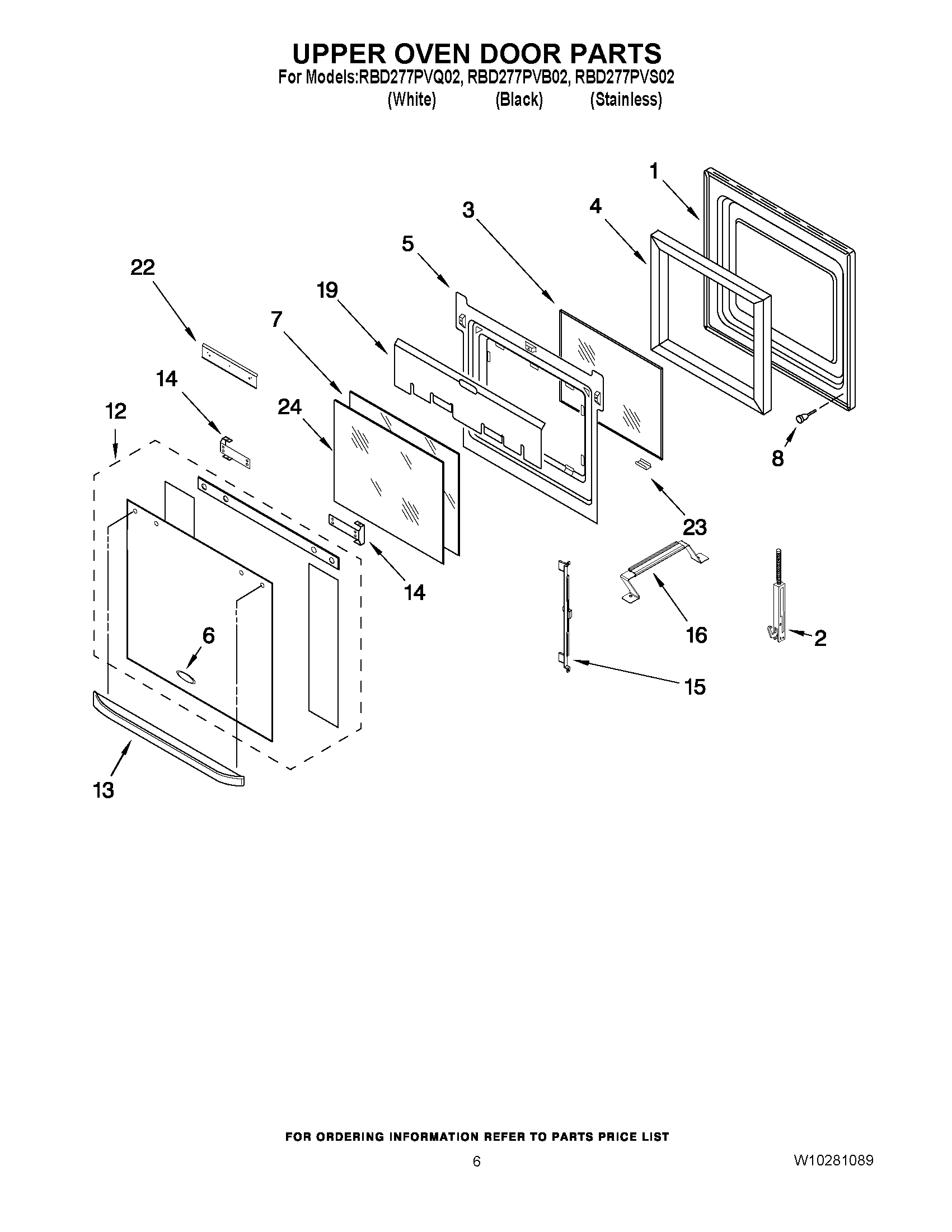

RBD277PVB02 04 – UPPER OVEN DOOR PARTS

RBD277PVB02 04 – UPPER OVEN DOOR PARTS

Written by

in

RBD277PVB02 04 – UPPER OVEN DOOR PARTS

Products

PositionProduct
1Door Liner
2WP9760576 Whirlpool Door Hinge (Left)
2HINGE-DOOR
2WP9760572 Whirlpool Door Hinge
2WP9760571 Whirlpool Door Hinge
2WP4449743 Whirlpool Screw
3WP4449253 Whirlpool Glass Window
4Insulation, Sides
5Retainer, Glass
6NAMEPLATE
7Glass, Inner
84448520 Whirlpool Oven Bumper
12Assembly, Door Glass (Black)
12Assembly, Door Glass (Stainless)
12Assembly, Door Glass (White)
13WPW10169800 Whirlpool Door Handle
13W10169802 Whirlpool Microwave Door Handle
13Door Handle (White)
14Bracket, Handle (L.Hand)
144455803 Whirlpool Oven Bracket
15WP9759229 Whirlpool Mounting Bracket
16Bracket (3rd Glsss)
19WP4449809 Whirlpool Screw
19Shield, Heat
22Shield, Heat (Bottom)
23Clip, Retainer (Black Model)
23Clip, Retainer (White Model)
24WP9759227 Whirlpool Glass Door
