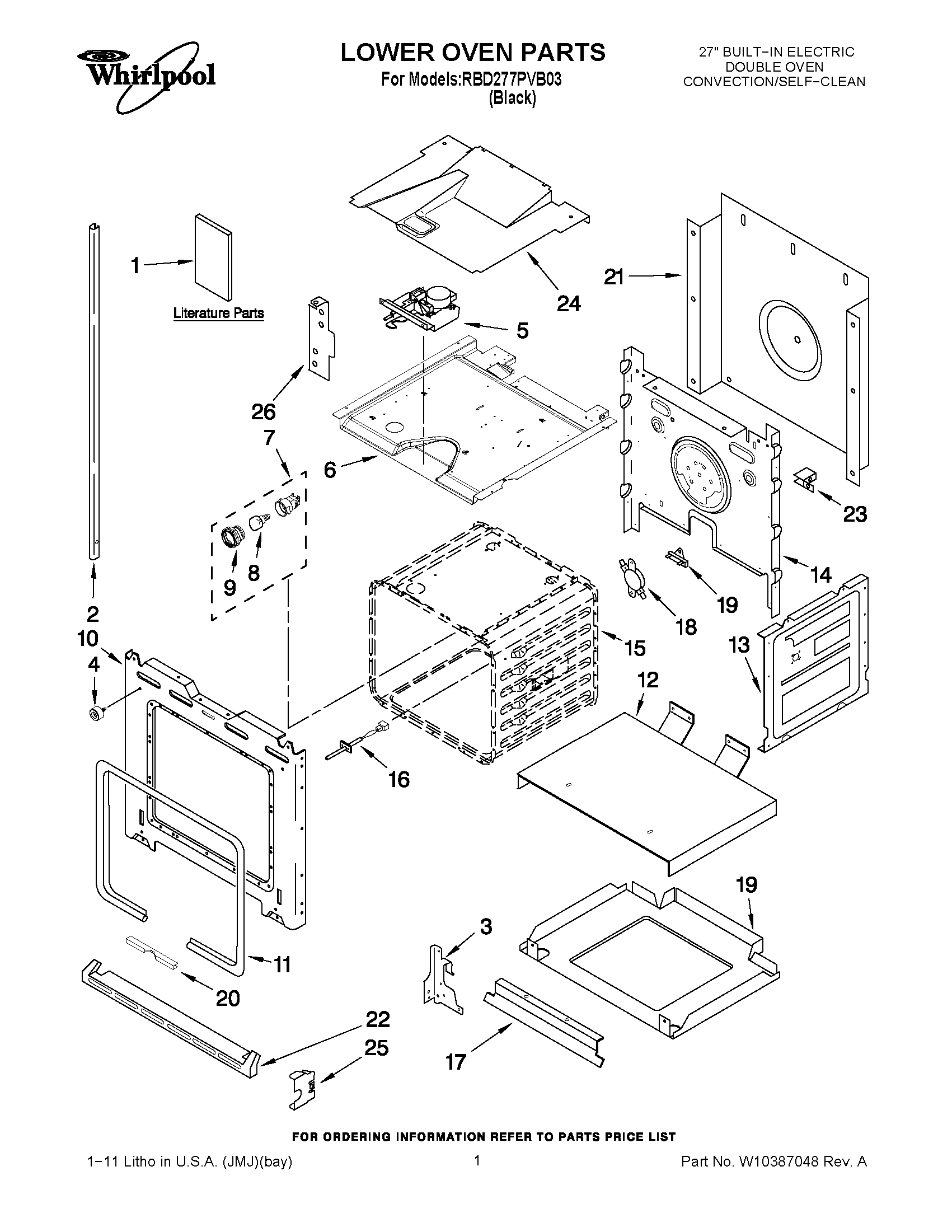

RBD277PVB03 01 – LOWER OVEN PARTS
Written by
in
RBD277PVB03 01 – LOWER OVEN PARTS
Products
Position
Product
NI
WPL 4449315
NI
WPL 4450364
1
Installation Instructions
1
Tech Sheet (Oven)
1
Use & Care Guide
1
Safer Cooking Tips (French)
1
SAFER COOKING TIPS (ENGLISH
2
WPW10339500 Whirlpool Trim
2
WPW10339499 Whirlpool Trim Assembly
3
WP4455605 Whirlpool Left Hand Hinge
3
WP4455606 Whirlpool Right Hand Hinge
4
W10105790 Whirlpool Bumper
5
WPW10195934 Whirlpool Door Latch
6
Top, Chassis
7
WPW10734065 Whirlpool Light
8
WP4173175 Whirlpool Light Bulb
9
Lens, Light (2)
10
Screw
10
Frame, Front
10
WP4450118 Whirlpool Nut
11
WP4455381 Whirlpool Door Gasket
12
Support, Insulation
13
W10782197 Whirlpool Side Panel
14
Back, Chassis
15
CABINET (NOT A SERVICEABLE PART)
16
WPW10131825 Whirlpool Oven Temperature Sensor
17
Deflector, Vent
18
WP9759242 Whirlpool Thermostat
19
Base, Chassis
20
WP4449154 Whirlpool Screw
20
WP4448933 Whirlpool Retainer
21
WP4451747 Whirlpool Rear Cover
22
WP3400832 Whirlpool Screw
22
Trim, Bottom Vent (Black)
23
WPL 4449845
23
SCREW
24
Divider, Vent
25
4452152 Whirlpool Oven Mounting Bracket
26
4455191 Whirlpool Oven Mounting Plate
←
