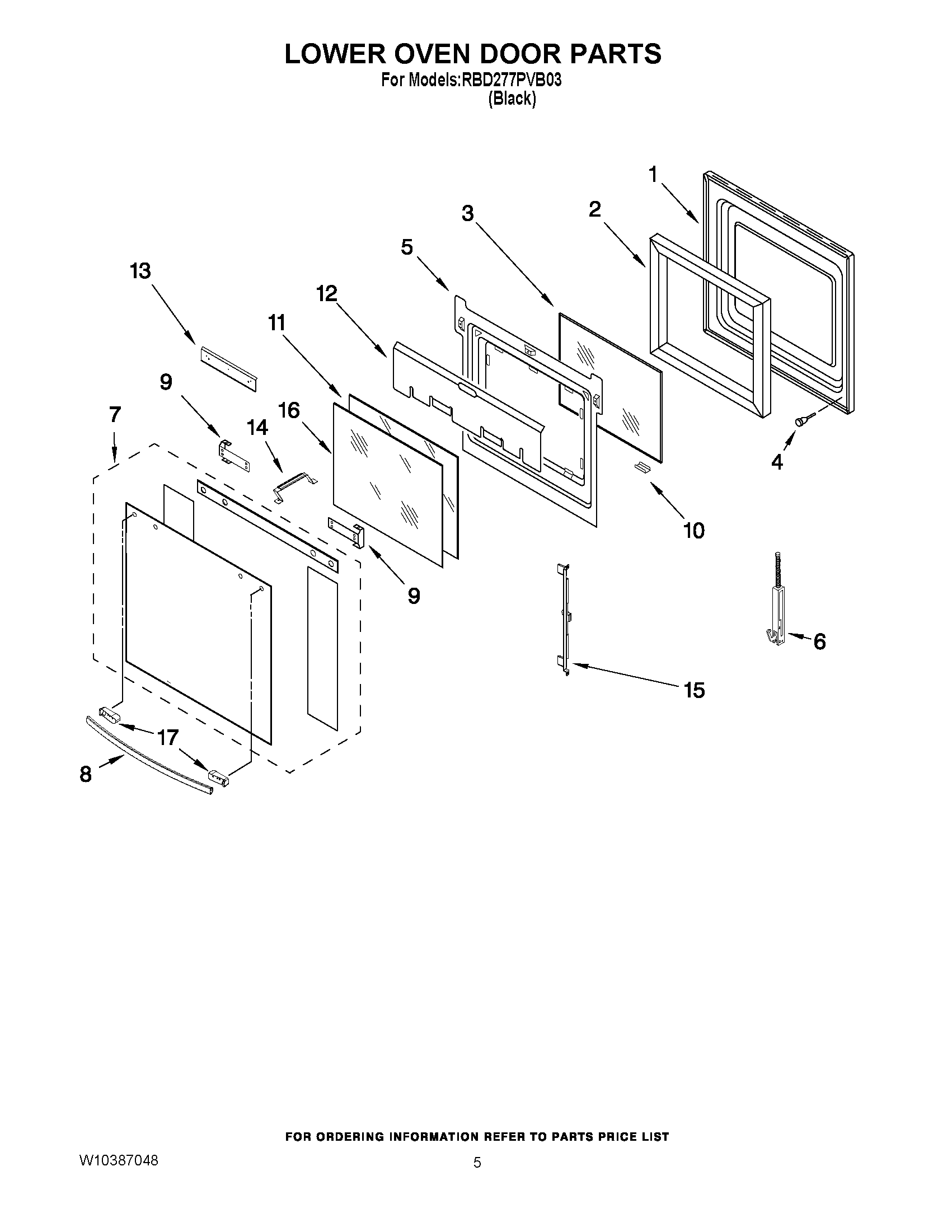

RBD277PVB03 03 – LOWER OVEN DOOR PARTS

RBD277PVB03 03 – LOWER OVEN DOOR PARTS

Written by

in

RBD277PVB03 03 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1Door Liner
2Insulation, Sides
3WP4449253 Whirlpool Glass Window
44448520 Whirlpool Oven Bumper
5Retainer, Glass
5SCREW
6WP4449743 Whirlpool Screw
6WP9760572 Whirlpool Door Hinge
6WP9760571 Whirlpool Door Hinge
7Assembly, Door Glass (Black)
8W10169802 Whirlpool Microwave Door Handle
94455803 Whirlpool Oven Bracket
9Bracket, Handle (L.Hand)
10RETAINER, CLIP (BLACK)
11Glass, Inner
12Shield, Heat
13Shield, Heat (Bottom)
14Bracket (3rd Glsss)
15WP9759229 Whirlpool Mounting Bracket
16WP9759227 Whirlpool Glass Door
17ENDCAP, HANDLE (BLACK)
