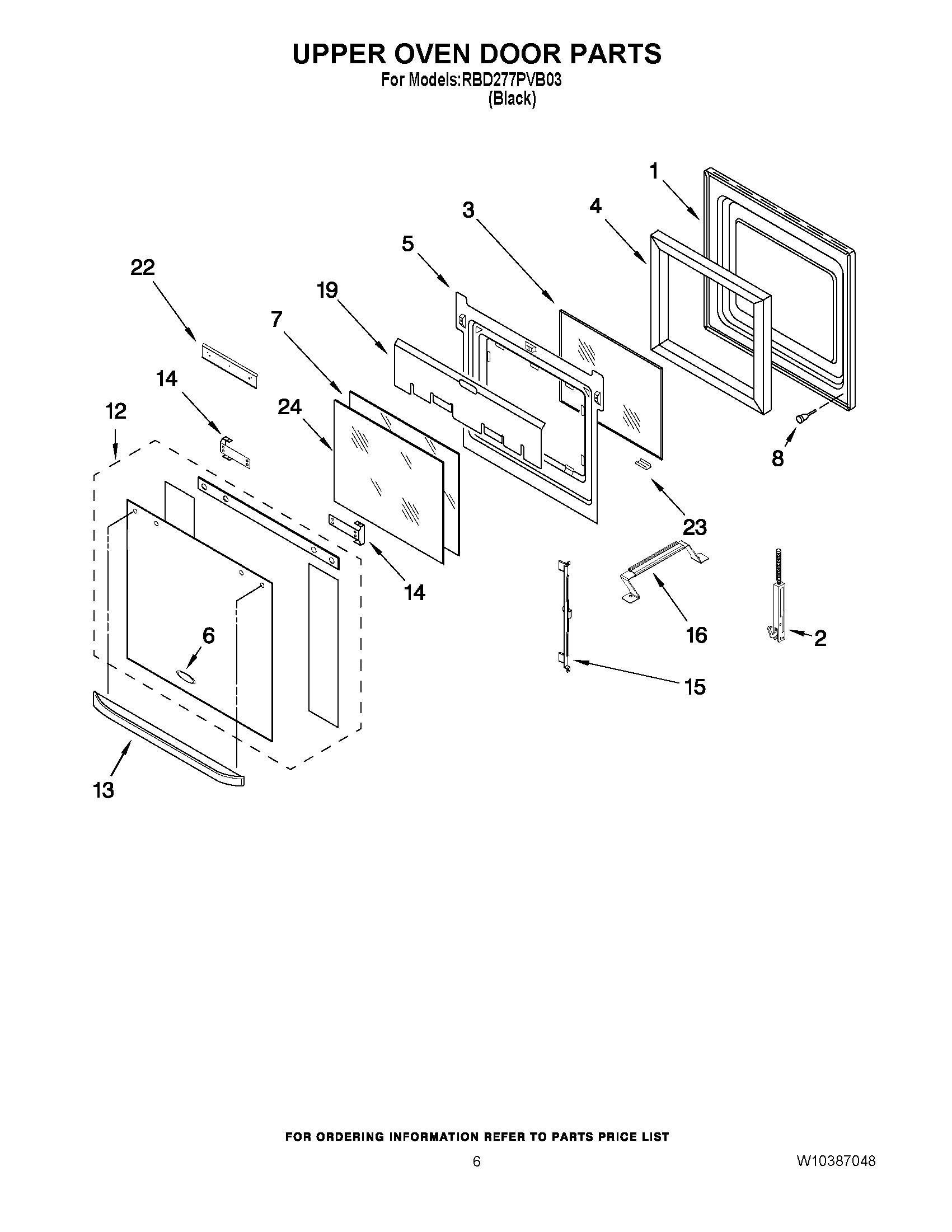

RBD277PVB03 04 – UPPER OVEN DOOR PARTS
Written by
in
RBD277PVB03 04 – UPPER OVEN DOOR PARTS
Products
Position
Product
1
Door Liner
2
WP4449743 Whirlpool Screw
2
WP9760571 Whirlpool Door Hinge
2
WP9760572 Whirlpool Door Hinge
3
WP4449253 Whirlpool Glass Window
4
Insulation, Sides
5
Retainer, Glass
6
NAMEPLATE
7
Glass, Inner
8
4448520 Whirlpool Oven Bumper
12
Assembly, Door Glass (Black)
13
W10169802 Whirlpool Microwave Door Handle
14
4455803 Whirlpool Oven Bracket
14
Bracket, Handle (L.Hand)
15
WP9759229 Whirlpool Mounting Bracket
16
Bracket (3rd Glsss)
19
Shield, Heat
19
SCREW
22
Shield, Heat (Bottom)
23
RETAINER, CLIP (BLACK)
24
WP9759227 Whirlpool Glass Door
←
