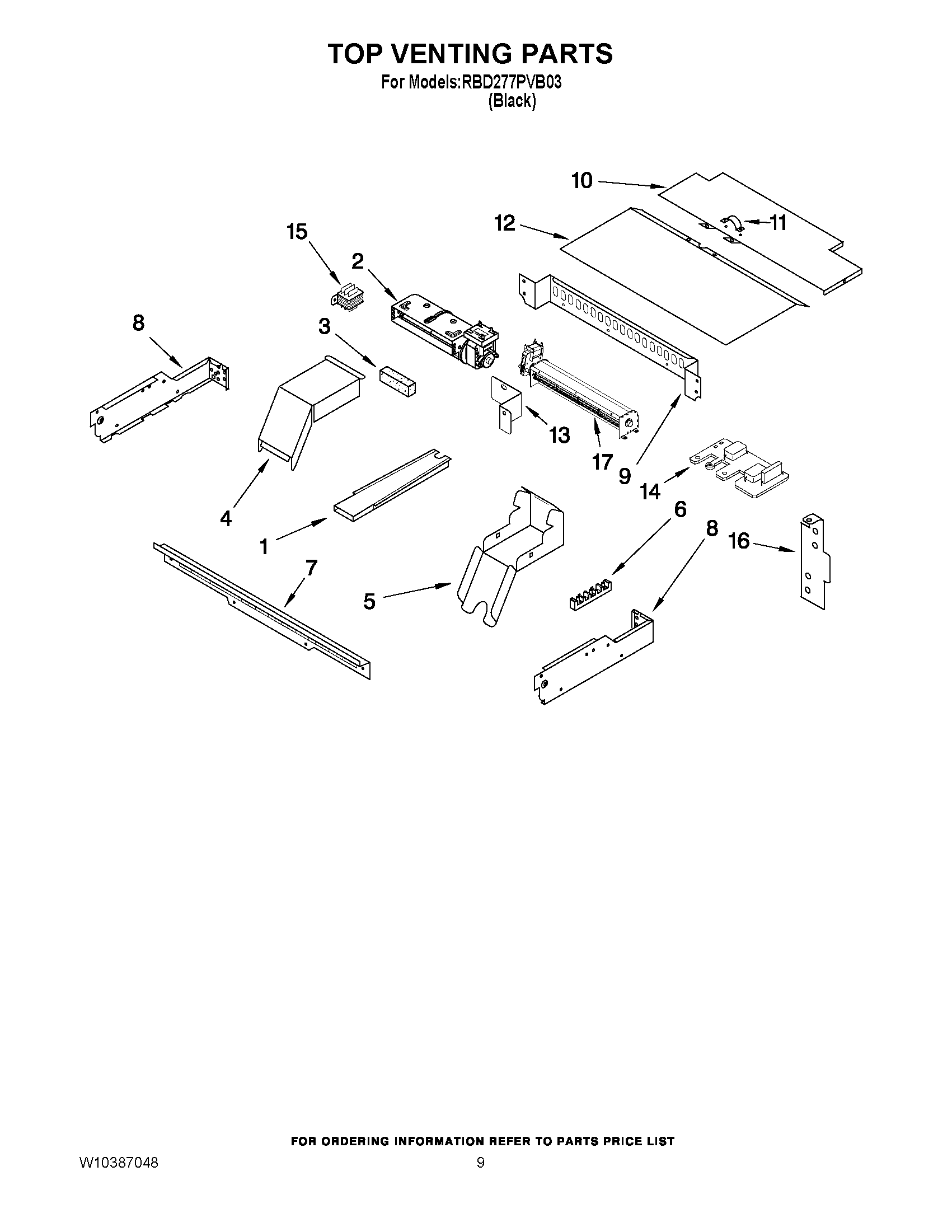

RBD277PVB03 07 – TOP VENTING PARTS
Written by
in
RBD277PVB03 07 – TOP VENTING PARTS
Products
Position
Product
1
4451759 Whirlpool Oven Exhaust Vent
1
Screw
2
WPW10176670 Whirlpool Blower
3
W10491987 Whirlpool Foam Seal
4
4455178 Whirlpool Oven Top Elbow
5
4455177 Whirlpool Oven Bottom Elbow
6
Screw
6
BLOCK, TERMINAL
7
WP4450038 Whirlpool Screw
7
VENT, CONTROL PANEL
8
W10790240 Whirlpool Side Assembly Complete
8
W10755214 Whirlpool Side Complete
9
Back, Control
10
Cover, Top Rear
11
Nut
11
4448664 Whirlpool Oven Mounting Bracket
12
Cover, Top Front
12
SCREW
13
8302390 Whirlpool Support Bracket
14
SUPPRESSOR
15
Transformer
16
4455191 Whirlpool Oven Mounting Plate
17
WPW10016550 Whirlpool Blower Cooling Fan
←
