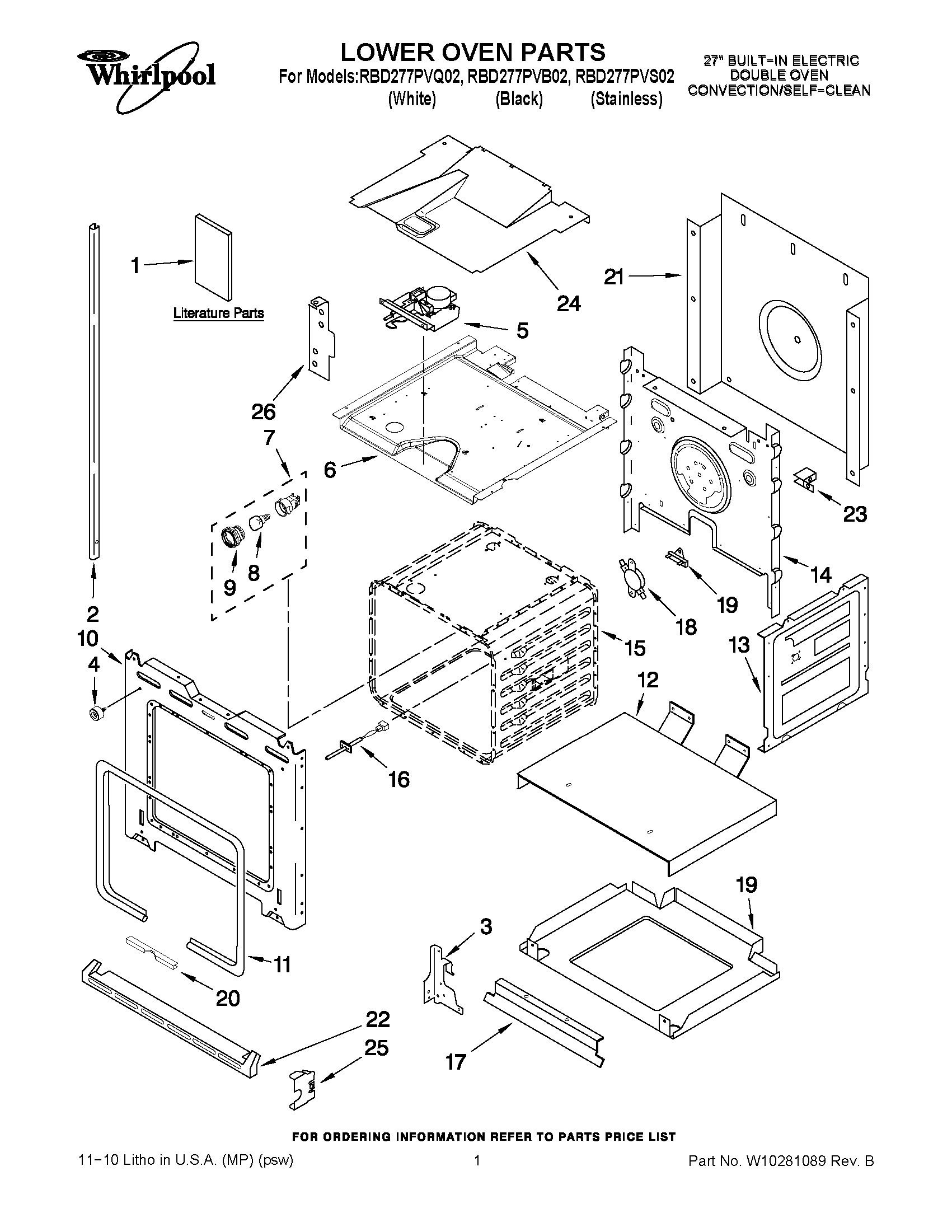

RBD277PVQ02 01 – LOWER OVEN PARTS

RBD277PVQ02 01 – LOWER OVEN PARTS

Written by

in

RBD277PVQ02 01 – LOWER OVEN PARTS

Products

PositionProduct
NIWPL 4450364
NIWPL 4449315
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Tech Sheet (Oven)
1Installation Instructions
1Use & Care Guide
2WPW10339499 Whirlpool Trim Assembly
2Trim, Side Right (White)
2WPW10339500 Whirlpool Trim
2TRIM, SIDELEFT (STAINLESS)
2WPW10339502 Whirlpool Trim Kit
2Trim, Side Right (Stainless)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5WPW10195934 Whirlpool Door Latch
6Top, Chassis
7WPW10734065 Whirlpool Light
8WP4173175 Whirlpool Light Bulb
9Lens, Light (2)
10Screw
10Frame, Front
10WP4450118 Whirlpool Nut
11WP4455381 Whirlpool Door Gasket
12Support, Insulation
13W10782197 Whirlpool Side Panel
14Back, Chassis
15CABINET (NOT A SERVICEABLE PART)
16WPW10131825 Whirlpool Oven Temperature Sensor
17Deflector, Vent
18WP9759242 Whirlpool Thermostat
19Base, Chassis
20WP4449154 Whirlpool Screw
20WP4448933 Whirlpool Retainer
21WP4451747 Whirlpool Rear Cover
22Trim, Bottom Vent (Black)
22WP3400832 Whirlpool Screw
22Trim, Bottom Vent (White)
22Trim, Bottom Vent (Stainless)
23WP4449809 Whirlpool Screw
23WPL 4449845
24Divider, Vent
254452152 Whirlpool Oven Mounting Bracket
264455191 Whirlpool Oven Mounting Plate
