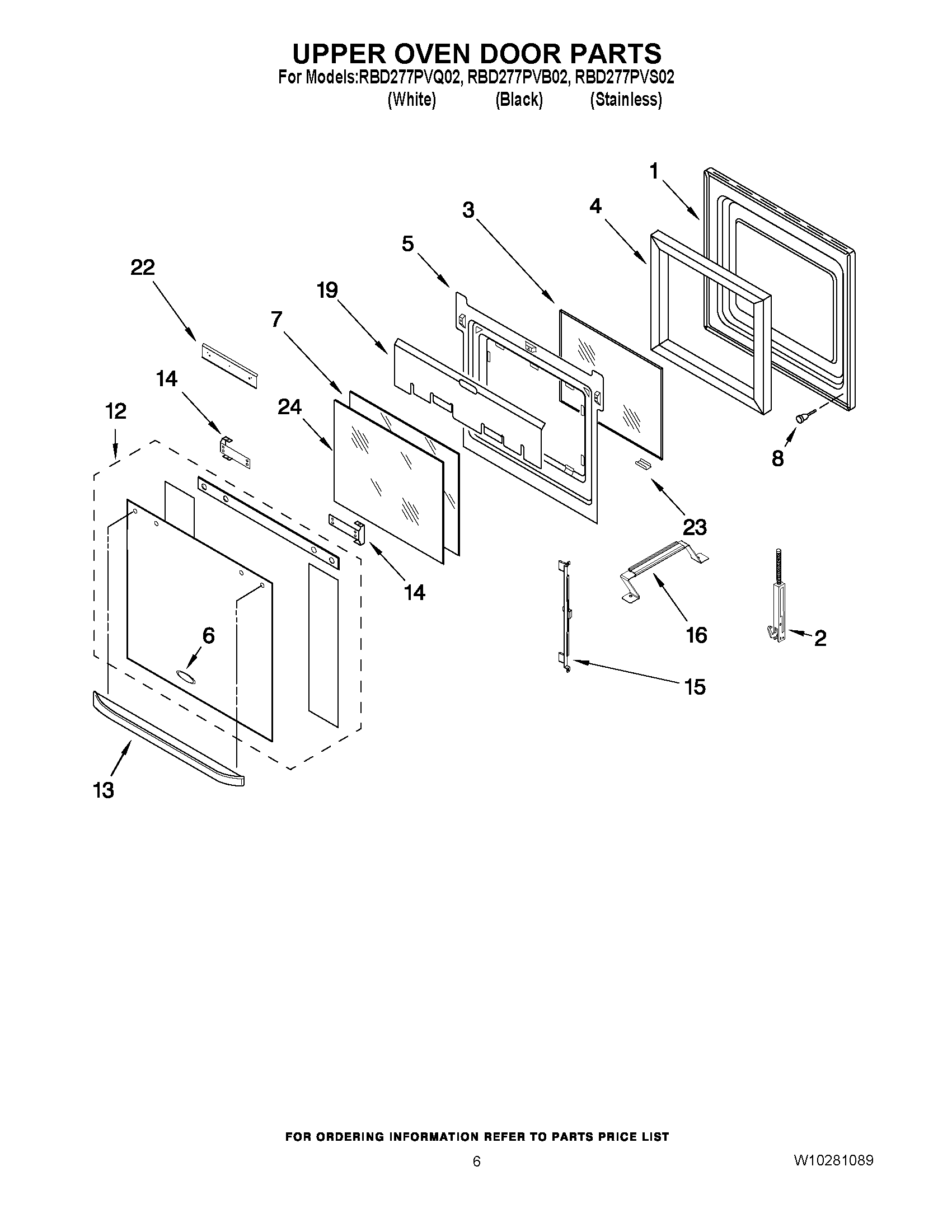

RBD277PVQ02 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	WP9760576 Whirlpool Door Hinge (Left)
2	HINGE-DOOR
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
6	NAMEPLATE
7	Glass, Inner
8	4448520 Whirlpool Oven Bumper
12	Assembly, Door Glass (Black)
12	Assembly, Door Glass (Stainless)
12	Assembly, Door Glass (White)
13	WPW10169800 Whirlpool Door Handle
13	W10169802 Whirlpool Microwave Door Handle
13	Door Handle (White)
14	Bracket, Handle (L.Hand)
14	4455803 Whirlpool Oven Bracket
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	WP4449809 Whirlpool Screw
19	Shield, Heat
22	Shield, Heat (Bottom)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	WP9759227 Whirlpool Glass Door
