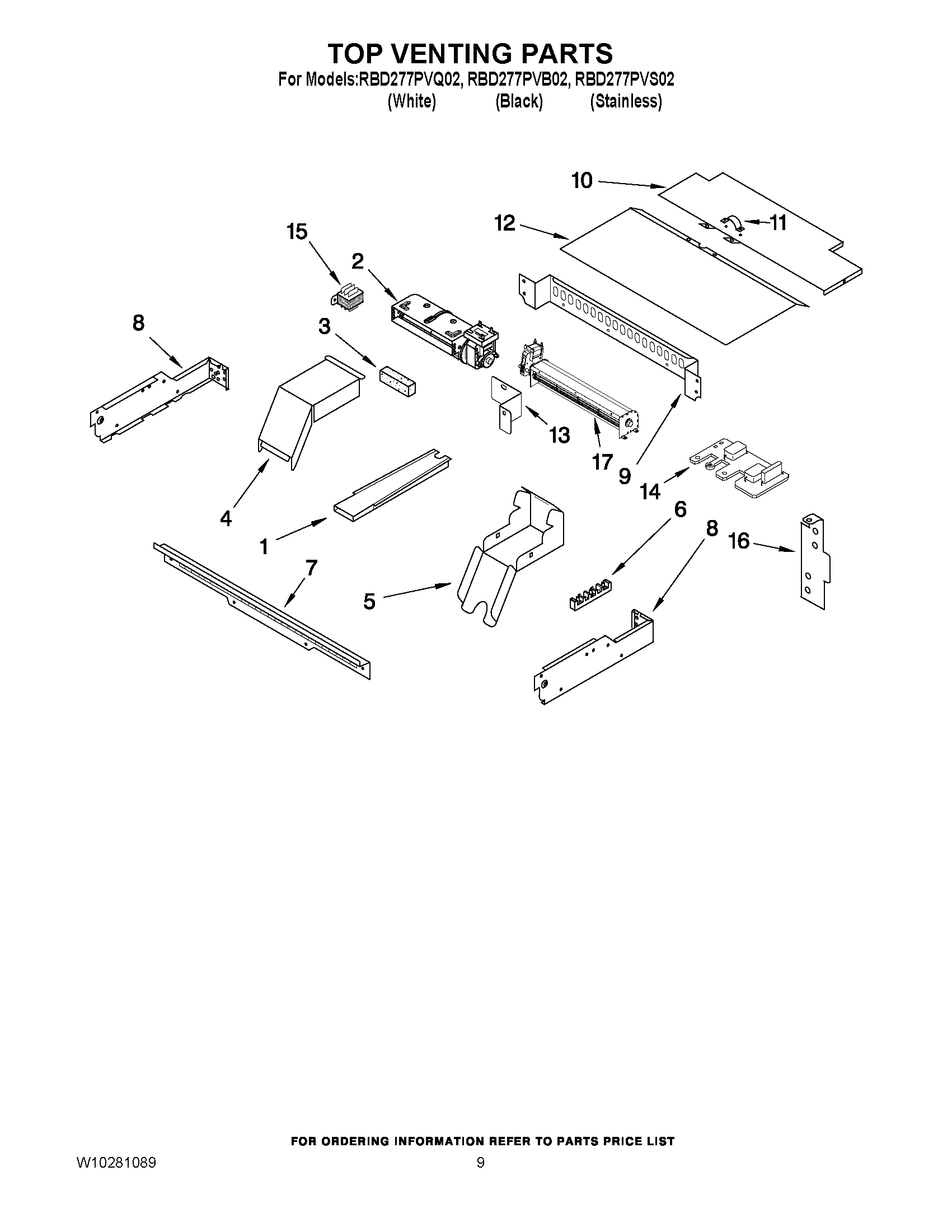

RBD277PVQ02 07 – TOP VENTING PARTS

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
1	Screw
2	WPW10176670 Whirlpool Blower
3	W10491987 Whirlpool Foam Seal
4	4455178 Whirlpool Oven Top Elbow
5	4455177 Whirlpool Oven Bottom Elbow
6	Screw
6	BLOCK, TERMINAL
7	WP4450038 Whirlpool Screw
7	VENT, CONTROL PANEL
8	W10790240 Whirlpool Side Assembly Complete
8	W10755214 Whirlpool Side Complete
9	Back, Control
10	Cover, Top Rear
11	Nut
11	4448664 Whirlpool Oven Mounting Bracket
12	Cover, Top Front
12	WP4449809 Whirlpool Screw
13	8302390 Whirlpool Support Bracket
14	SUPPRESSOR
15	Transformer
16	4455191 Whirlpool Oven Mounting Plate
17	WPW10016550 Whirlpool Blower Cooling Fan
