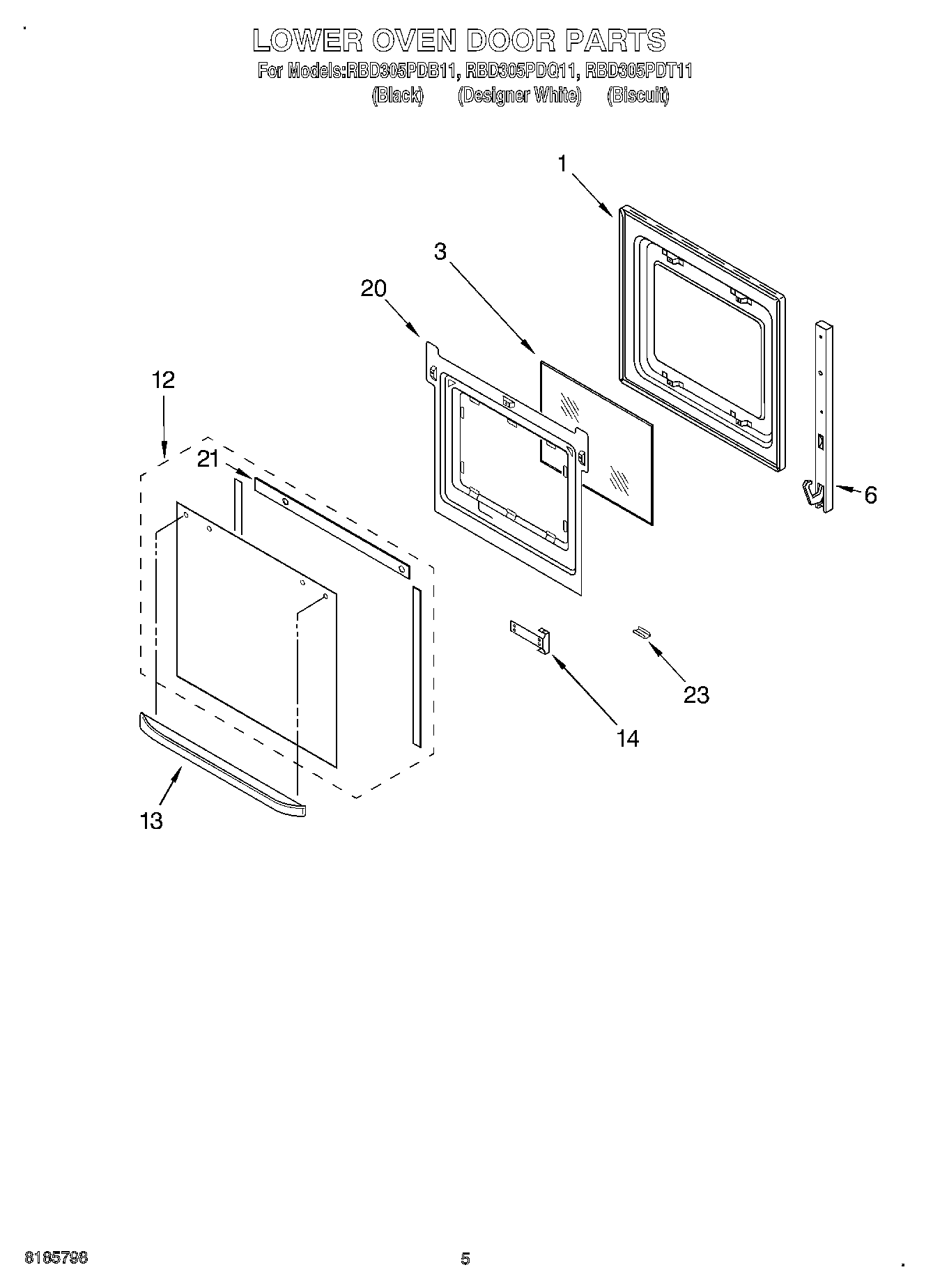

RBD305PDB11 03 – LOWER OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
3	WP4449259 Whirlpool Glass Window
6	WP4455523 Whirlpool Oven Door Hinge
6	WP3400832 Whirlpool Screw
12	Door Glass (Biscuit)
12	Door Glass, Assy (White Model)
12	WP9759641 Whirlpool Outer Door Glass
13	Door Handle (White Model)
13	Door Handle (Black Model)
13	Door Handle (Biscuit)
14	Screw
14	Bracket, Handle
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	RETAINER,GLASS CLIP (BISCUIT)
23	WP4449743 Whirlpool Screw
