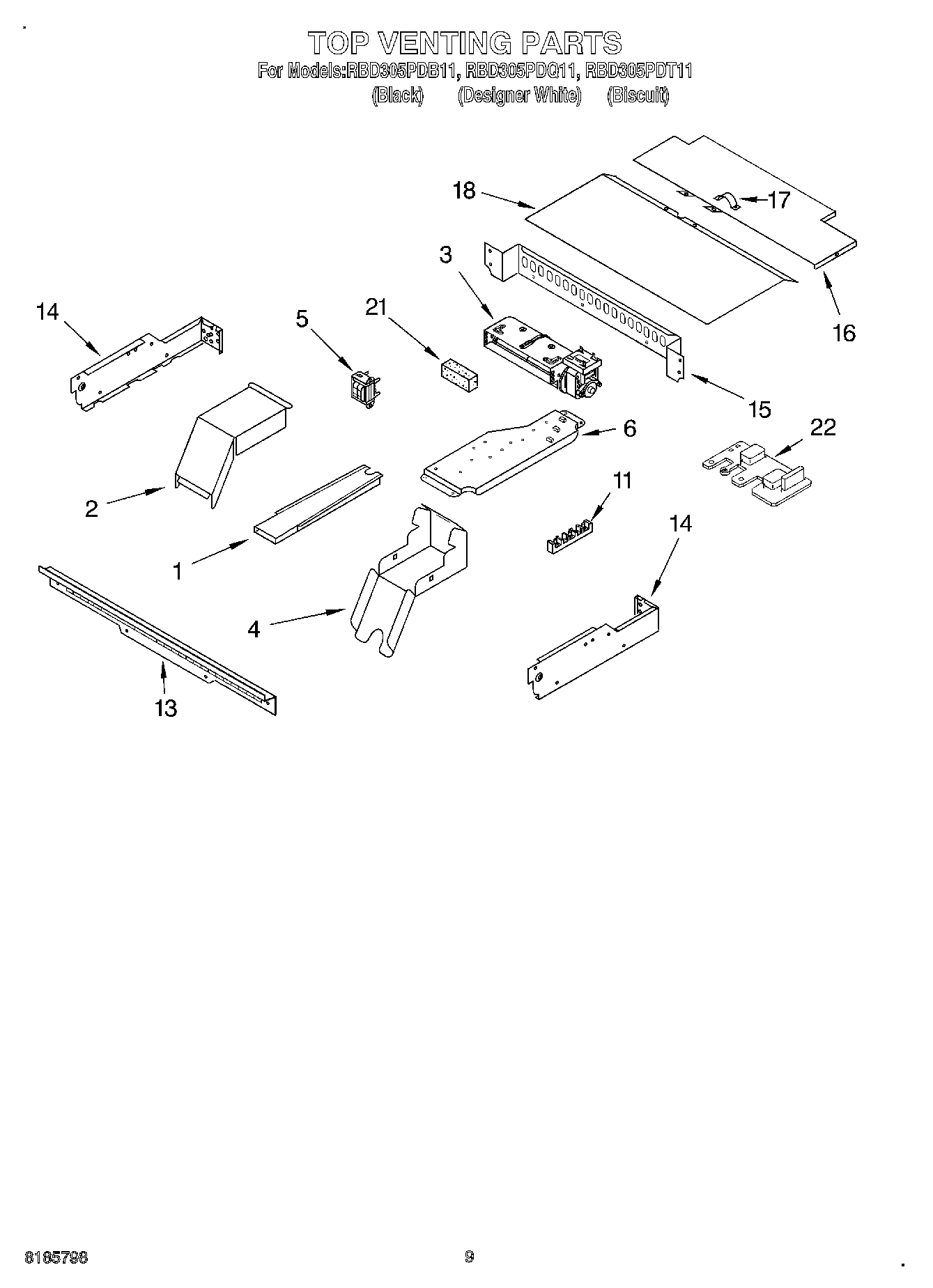

RBD305PDB11 07 – TOP VENTING, OPTIONAL

Products

Position	Product
1	Screw
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WP4455352 Whirlpool Mounting Bracket
3	Blower
4	4455177 Whirlpool Oven Bottom Elbow
5	Transformer, Control
6	Plate, Mounting
11	WP8203546 Whirlpool Terminal Block
11	Screw
13	WP4450038 Whirlpool Screw
13	Vent, Control Panel
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
18	WP4452367 Whirlpool Top Cover
21	W10491987 Whirlpool Foam Seal
22	4451761 Whirlpool Oven Support Bracket
22	261900 Whirlpool Microwave Spray
22	Wire (12 Ga. 150 c Black)
22	18 Ga. 80~c Rating (Red)
22	Wire (14 Ga. 200 c Brown)
22	1
22	WP4451985 Whirlpool Noise Filter Board
22	WPL 591014
22	Roll Tape, Exhaust Duct
22	Harness, Wire STD (Main)
22	Wire (14 Ga. 150 c Yellow)
22	285006 Whirlpool Spray
22	WPW10339879 Whirlpool Wire Tie
22	4450800 Whirlpool Oven Screw
22	4448664 Whirlpool Oven Mounting Bracket
22	Wire, 25“ Roll (White 14 GA.)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25` Roll (Black 14 Ga.)
22	WP112432 Whirlpool Nut Assembly
22	WP4449809 Whirlpool Screw
22	72017 Whirlpool Appliance Touch-Up Paint White
22	72032 Whirlpool Touch Up Paint Black
22	WP482338 Whirlpool Refrigerator Adhesive
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	WP261869 Whirlpool Microwave Paint
22	242831 Whirlpool Oven Wire
22	Spacer, Harness
22	Conduit, Double
22	WP4448950 Whirlpool Screw
22	814381 Whirlpool Pin
22	350930 Whirlpool White Spray Paint
