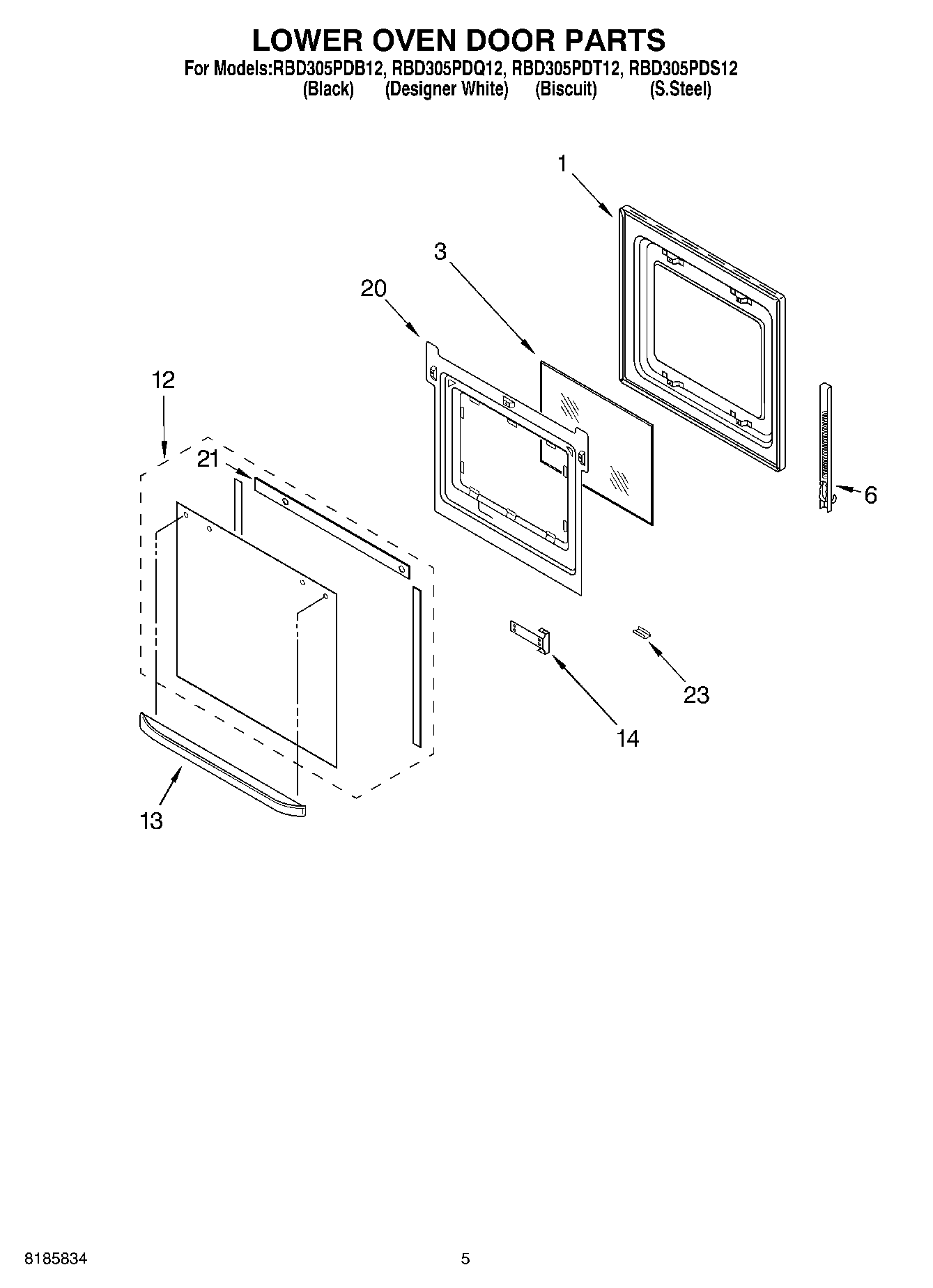

RBD305PDB12 03 – LOWER OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
3	WP4449259 Whirlpool Glass Window
6	Hinge, Door (R.Side (L.Brown))
6	9760570 Whirlpool Door Hinge
6	Hinge, Door (Right Side)
6	Hinge, Door (Left Side)
6	WP3400832 Whirlpool Screw
12	WP9759074 Whirlpool Outer Door Glass
12	Door Glass (Biscuit)
12	Door Glass, Assy (White Model)
12	WP9759641 Whirlpool Outer Door Glass
13	Door Handle (Black Model)
13	Door Handle (White Model)
13	Door Handle (Biscuit)
14	Bracket, Handle
14	Screw
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
23	WP4449743 Whirlpool Screw
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	RETAINER,GLASS CLIP (BISCUIT)
