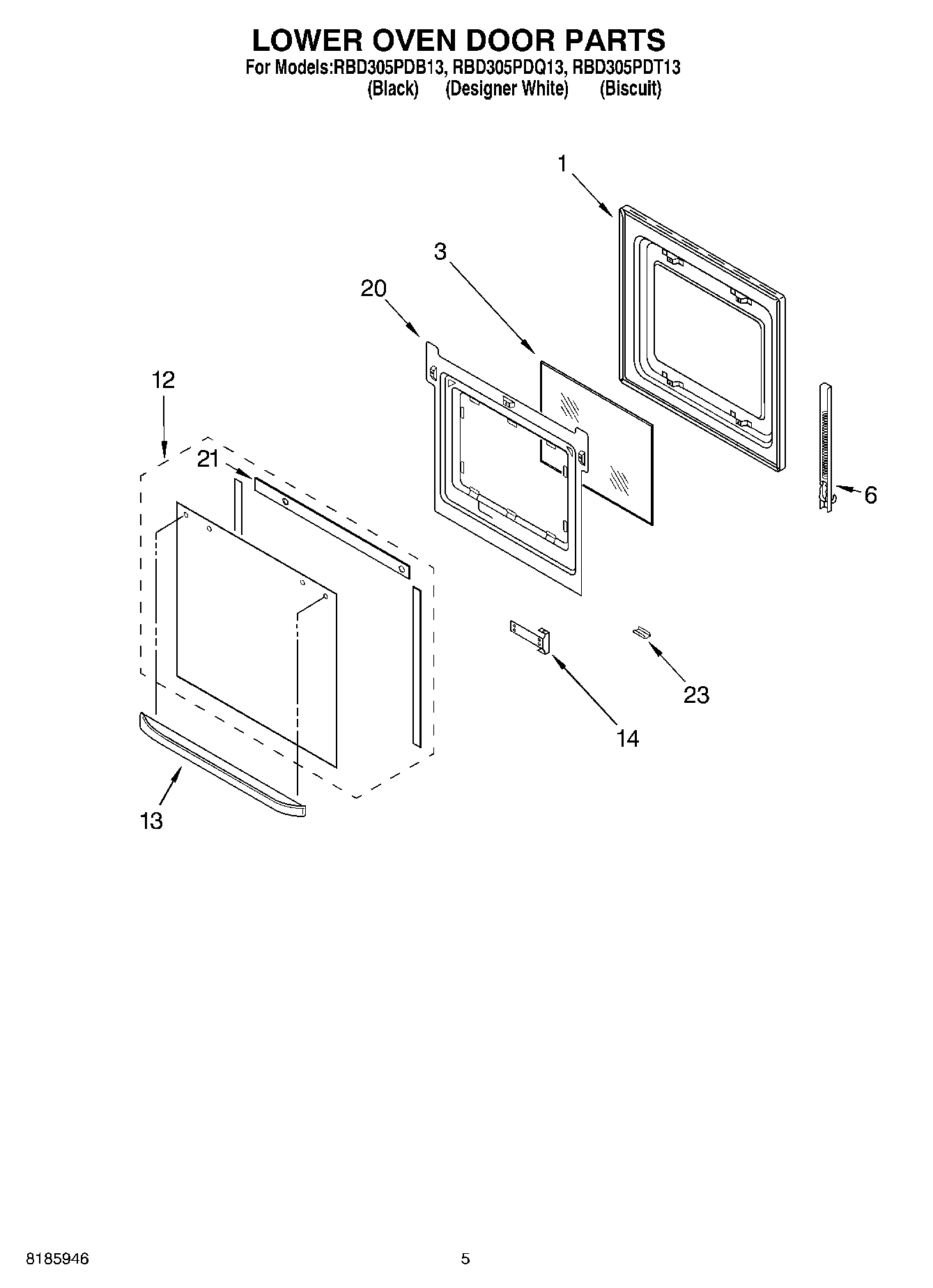

RBD305PDB13 03 – LOWER OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
3	WP4449259 Whirlpool Glass Window
6	Hinge, Door (R.Side (L.Brown))
6	WP3400832 Whirlpool Screw
6	9760570 Whirlpool Door Hinge
12	WP9759641 Whirlpool Outer Door Glass
12	Door Glass (Biscuit)
12	Door Glass, Assy (White Model)
13	Door Handle (Black Model)
13	Door Handle (Biscuit)
13	Door Handle (White Model)
14	Bracket, Handle
14	Screw
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	WP4449743 Whirlpool Screw
23	RETAINER,GLASS CLIP (BISCUIT)
