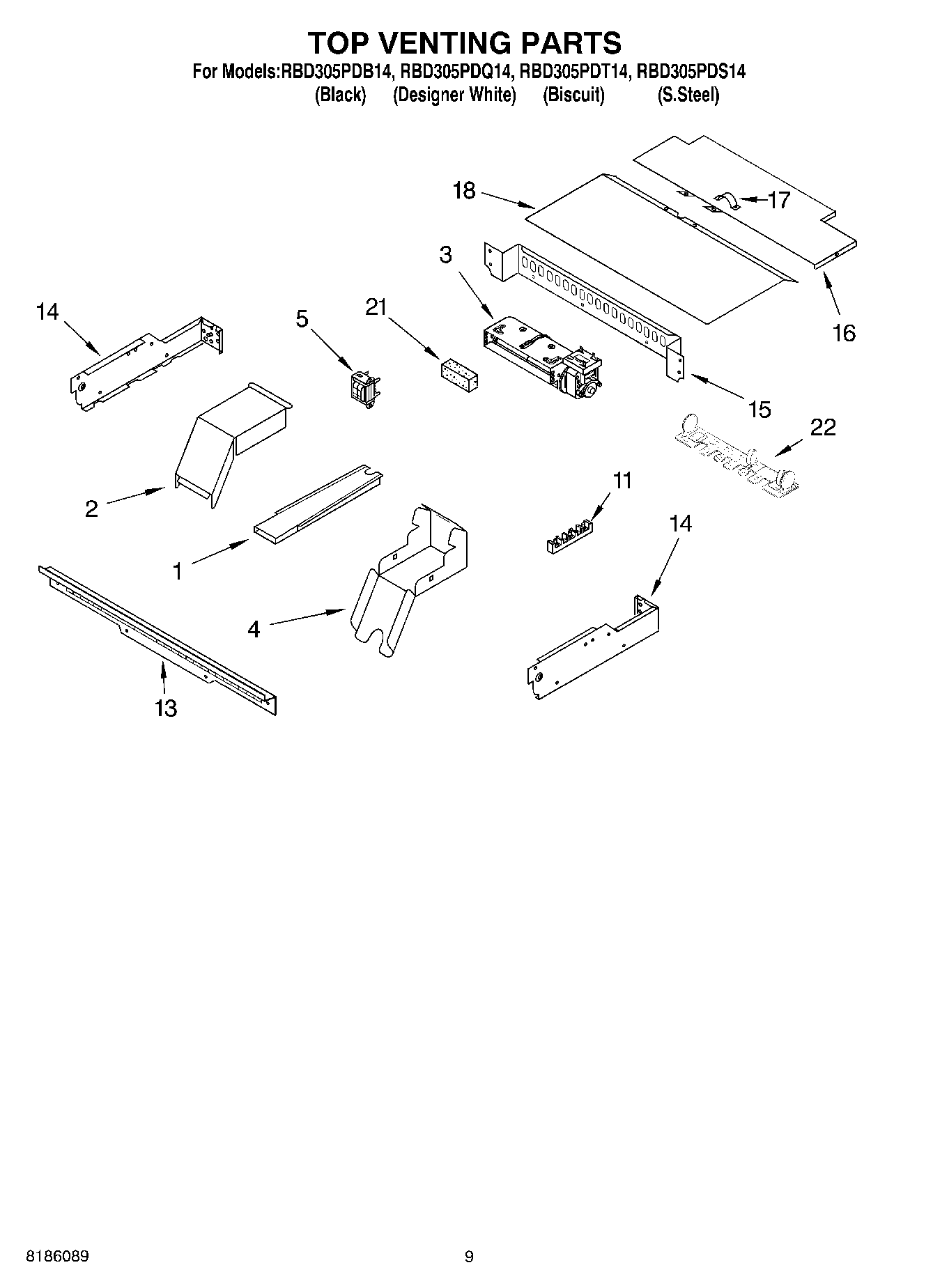

RBD305PDB14 07 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI120243A
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 591014
	Roll Tape, Exhaust Duct
	4451761 Whirlpool Oven Support Bracket
	WPL ARI120244A
	261900 Whirlpool Microwave Spray
	8302154 Whirlpool Oven Wire Harness
	WPL ARI120240A
	WPL ARI120241A
	WPL ARI120242A
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	350930 Whirlpool White Spray Paint
	4450800 Whirlpool Oven Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	4448664 Whirlpool Oven Mounting Bracket
	WP112432 Whirlpool Nut Assembly
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	WPW10339879 Whirlpool Wire Tie
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	Spacer, Harness
	Wire, 25` Roll (Black 14 Ga.)
	Conduit, Double
	WP4448950 Whirlpool Screw
	814381 Whirlpool Pin
	WP482338 Whirlpool Refrigerator Adhesive
1	4451759 Whirlpool Oven Exhaust Vent
1	Screw
2	4455178 Whirlpool Oven Top Elbow
3	WP4455352 Whirlpool Mounting Bracket
3	Blower
4	4455177 Whirlpool Oven Bottom Elbow
5	Transformer, Control
11	Screw
11	WP8203546 Whirlpool Terminal Block
13	Vent, Control Panel
13	WP4450038 Whirlpool Screw
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
18	WP4452367 Whirlpool Top Cover
21	W10491987 Whirlpool Foam Seal
22	SUPPRESSOR
