RBD305PDB2 01 – LOWER OVEN

RBD305PDB2 01 – LOWER OVEN

Written by

in

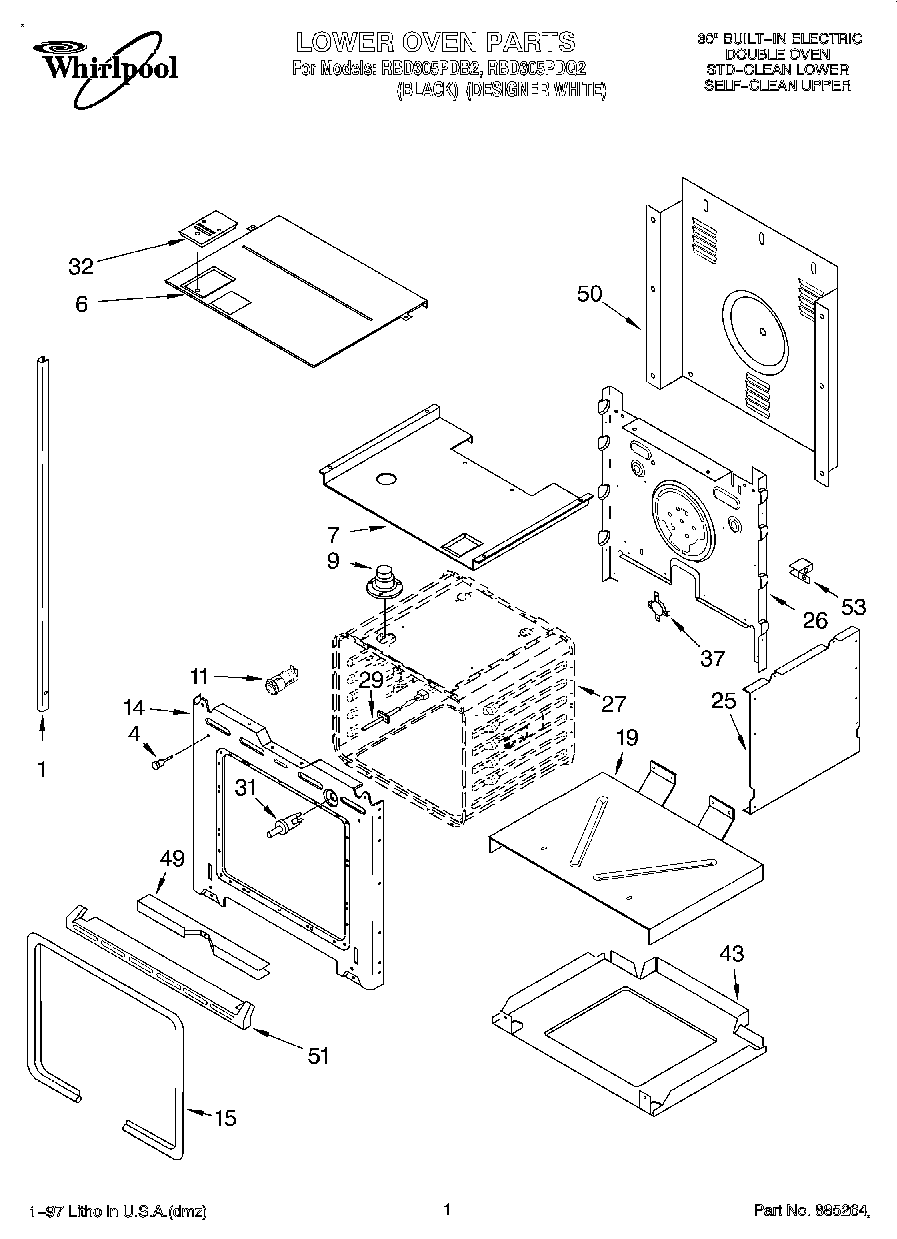

RBD305PDB2 01 – LOWER OVEN

Products

PositionProduct
1Trim, Side (Right Hand) (White Model)
1WP8281236 Whirlpool Screw
1Trim, Side (White)
1Trim, Side (RH Black)
1Trim, Side (Left Hand)) (White Model)
1Trim, Side (LH Black)
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Partition
9Tube, Vent
11WPW10734065 Whirlpool Light
14Frame, Front
14Screw
15Gasket, Door
19Support, Insulation
25Side, Chassis (R.H. & L.H.)
26Back, Module
27Liner, Oven (Not a Serviceable Part)
29Sensor
31Switch, Door
32Vent Box Assy
37WP4450249 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50Cover, Back
51Trim, Bottom (Screw)
51WPL 4448478
51WPL 4448477
53WPL 4449845
53WPL 4450365
53W11684730 Whirlpool Insulation
53WP4449809 Whirlpool Screw
