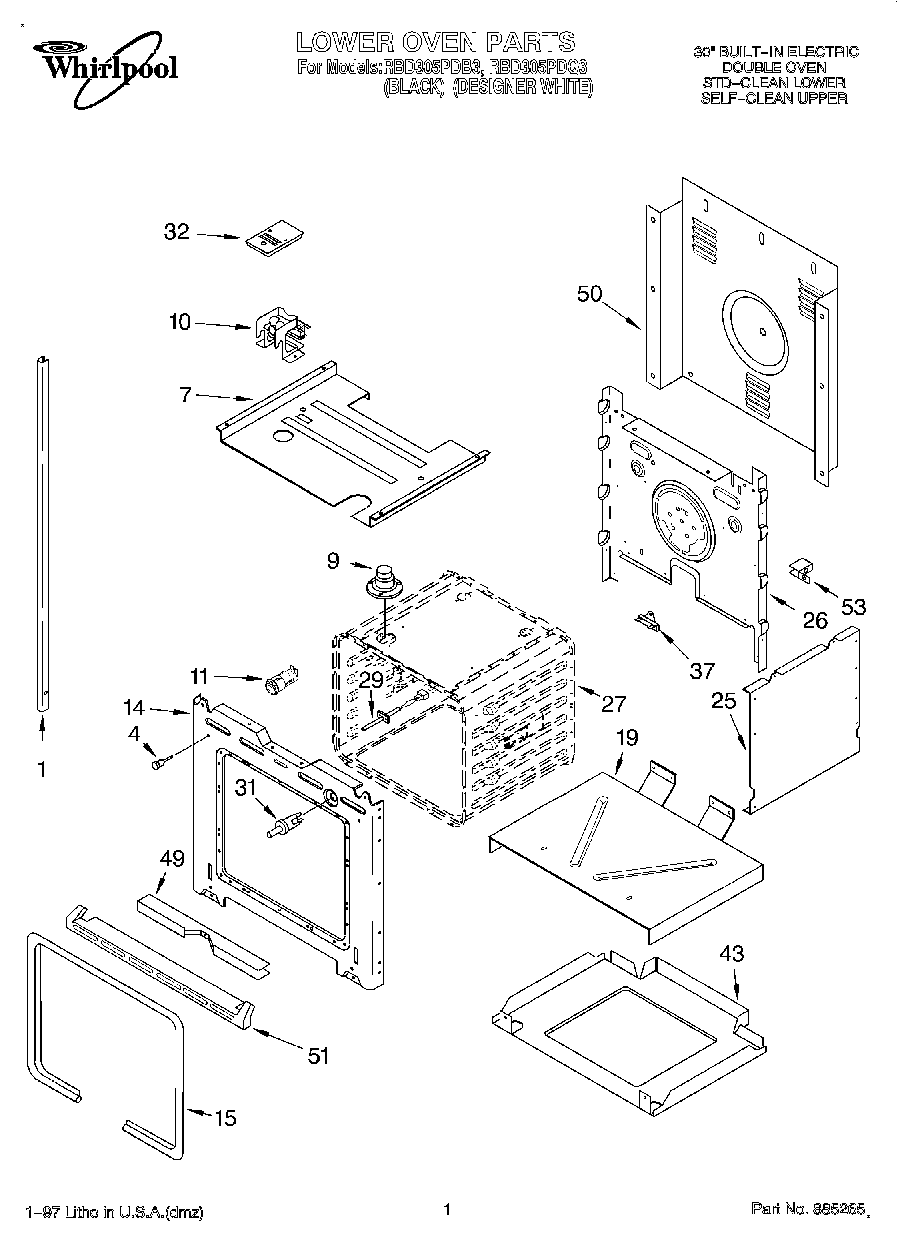

RBD305PDB3 01 – LOWER OVEN

Products

PositionProduct
1Trim, Side (LH Black)
1WP8281236 Whirlpool Screw
1Trim, Side (White)
1Trim, Side (RH Black)
1Trim, Side (Right Hand) (White Model)
1Trim, Side (Left Hand)) (White Model)
44448520 Whirlpool Oven Bumper
7Partition
9Tube, Vent
10Fan & Bracket Assy
11WPW10734065 Whirlpool Light
14Screw
14Frame, Front
15Gasket, Door
19Support, Insulation
25Side, Chassis (R.H. & L.H.)
26Back, Module
27Liner, Oven (Not a Serviceable Part)
29Sensor
31Switch, Door
32Vent Box Assy
37WP4451354 Whirlpool Thermal Fuse Assembly
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50Cover, Back
51WPL 4448477
51WPL 4448478
51Trim, Bottom (Screw)
53W11684730 Whirlpool Insulation
53WPL 4449845
53WPL 4450365
53WP4449809 Whirlpool Screw
