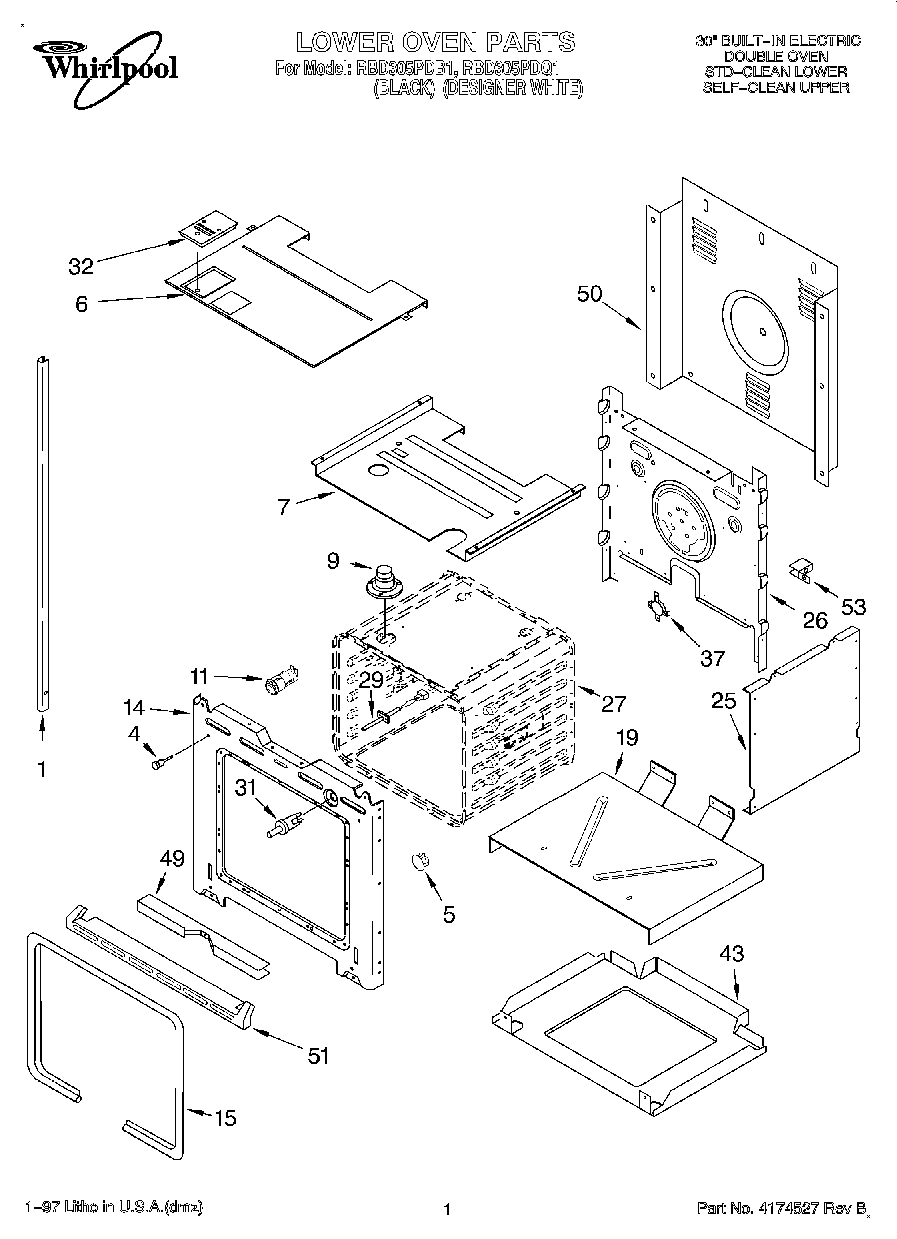

RBD305PDQ1 01 – LOWER OVEN

Products

Position	Product
1	Trim, Side (LH Black)
1	WP8281236 Whirlpool Screw
1	Trim, Side (White)
1	Trim, Side (RH Black)
1	Trim, Side (Right Hand) (White Model)
1	Trim, Side (Left Hand)) (White Model)
4	4448520 Whirlpool Oven Bumper
5	Plug, Button
6	Divider, Vent
7	Partition
9	Tube, Vent
11	WPW10734065 Whirlpool Light
14	Frame, Front
14	Screw
15	Gasket, Door
19	Support, Insulation
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
31	Switch, Door
32	Vent Box Assy
37	WP4450249 Whirlpool Thermostat
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	Cover, Back
51	WPL 4448478
51	WPL 4448477
51	Screw, (2)
53	WPL 4450365
53	WPL 4449845
53	W11684730 Whirlpool Insulation
53	WP4449809 Whirlpool Screw
