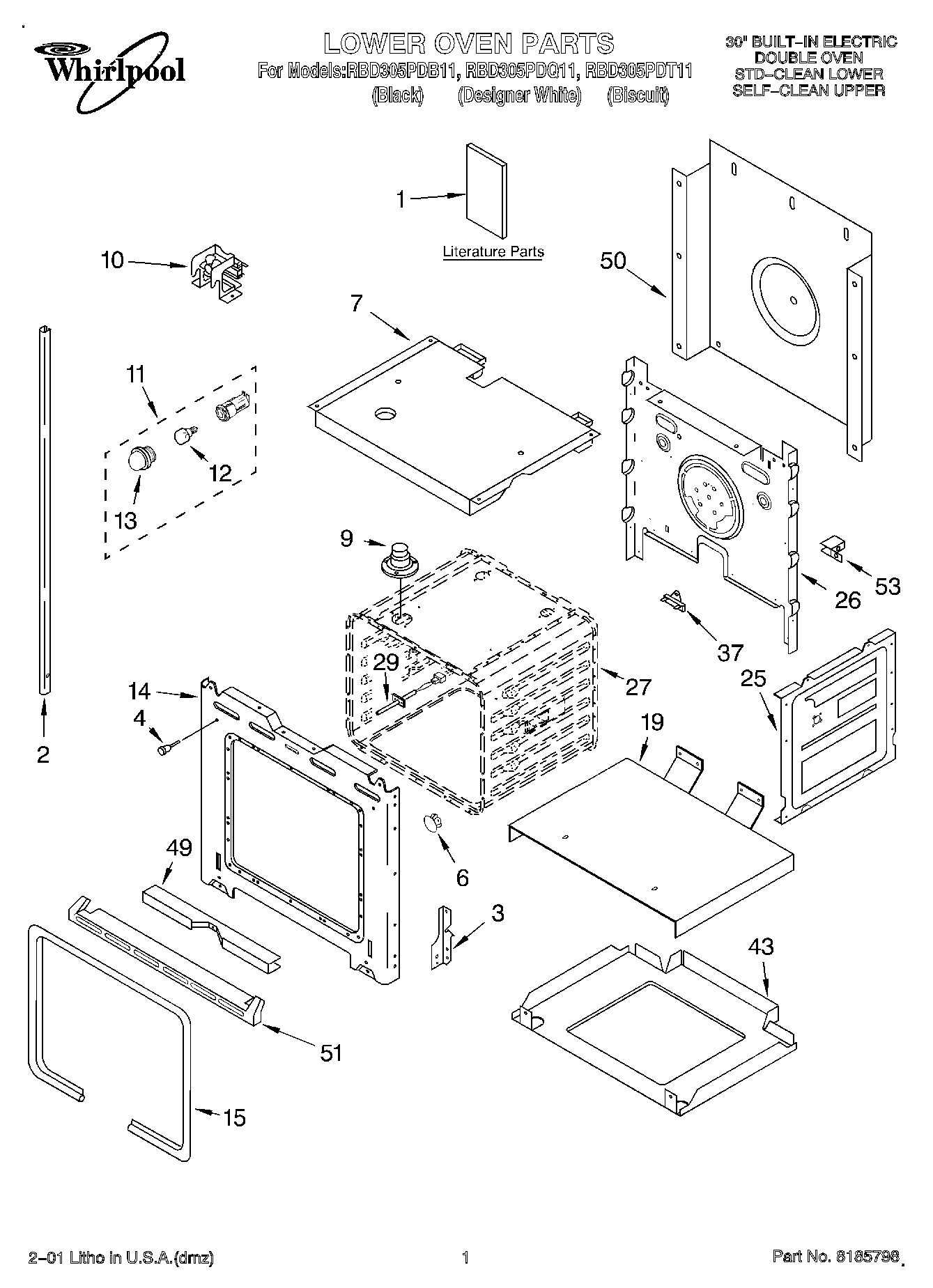

RBD305PDQ11 01 – LOWER OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide (Oven))
1	Literature Parts (Tech Sheet)
2	WP8281236 Whirlpool Screw
2	Trim, Side (LH Black)
2	Trim, Side (Right Hand) (White Model)
2	Trim, Side (RH Black)
2	Trim, Side (Left Hand)) (White Model)
2	Trim, Side (LH Biscuit)
2	Trim, Side (RH Biscuit)
2	Trim, Side (White)
3	Reciever, Hinge (Left Hand)
3	Reciever, Hinge (Right Hand)
4	4448520 Whirlpool Oven Bumper
6	4450935 Whirlpool Oven Door Plug
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
10	Plate, Fan
10	Fan & Bracket Assy
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Lens, Light
14	Frame, Front
14	WP4450118 Whirlpool Nut
14	Screw
15	Gasket, Door
19	Support, Insulation
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	WPW10131825 Whirlpool Oven Temperature Sensor
37	WP4451354 Whirlpool Thermal Fuse Assembly
43	WPL 4455530
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
51	WP3400832 Whirlpool Screw
51	WPL 4452415
51	WPL 4448477
51	WPL 4448478
53	W11684730 Whirlpool Insulation
53	WPL 4449845
53	WPL 4450365
53	WP4449809 Whirlpool Screw
