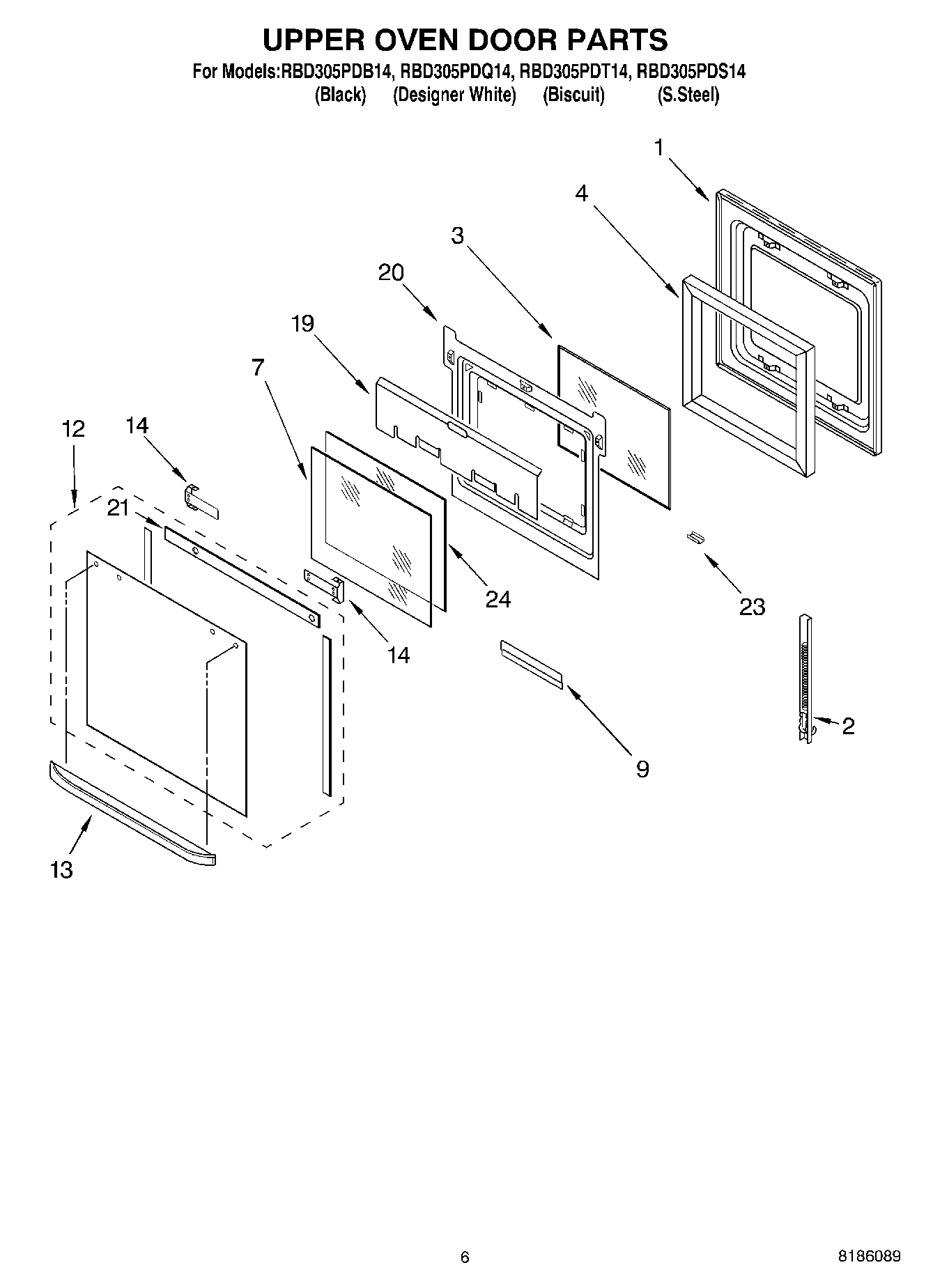

RBD305PDQ14 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	WP9759413 Whirlpool Door Liner
2	Hinge, Door (R.Side)
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
2	WP3400832 Whirlpool Screw
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
12	Door Glass, Assy (White Model)
12	WP9759074 Whirlpool Outer Door Glass
12	WP9759641 Whirlpool Outer Door Glass
12	Door Glass (Biscuit)
13	Door Handle (Biscuit)
13	Door Handle (Black Model)
13	Door Handle (White Model)
14	Screw
14	Bracket, Handle
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	WP4449743 Whirlpool Screw
24	Glass, Inner
