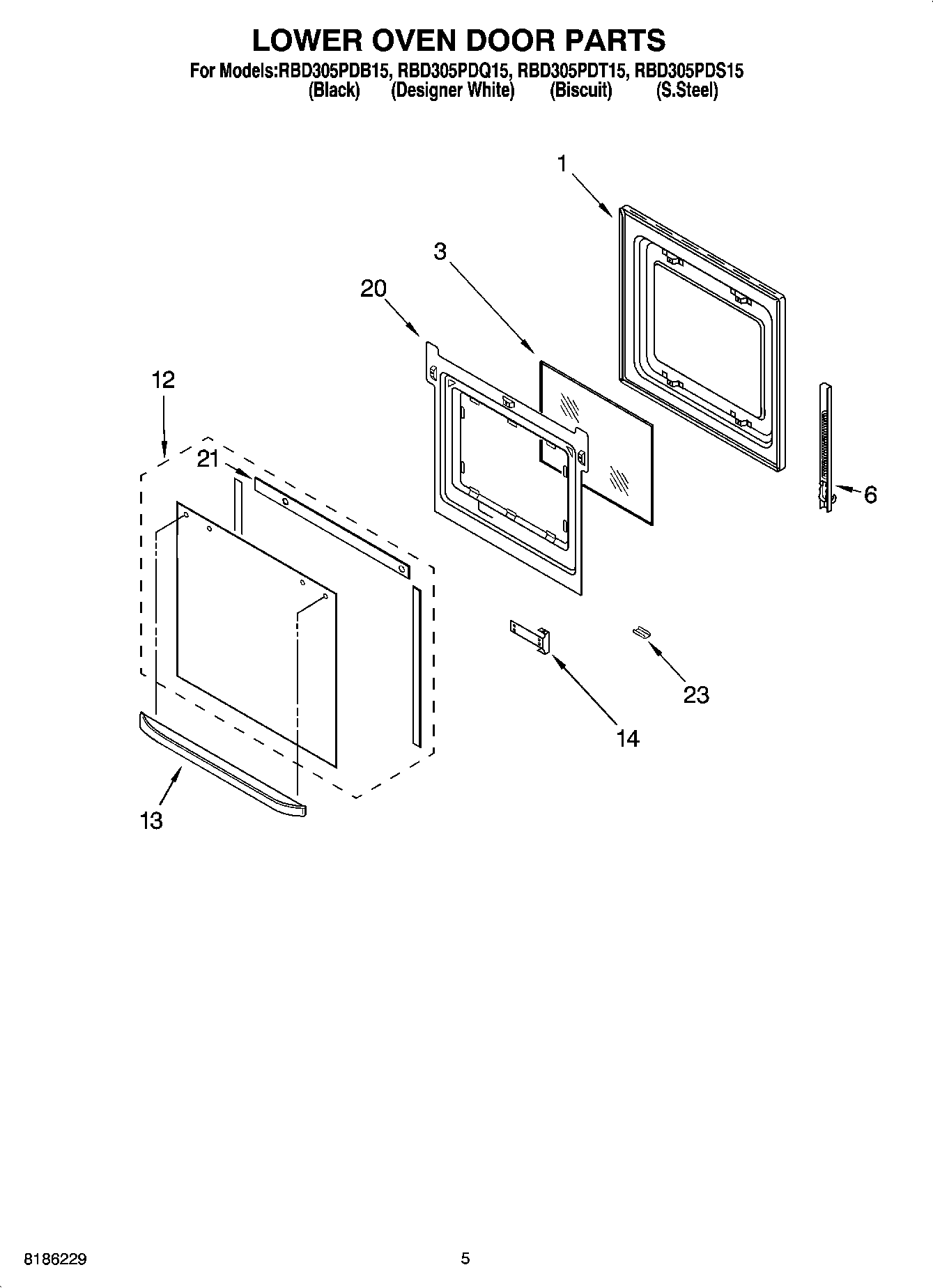

RBD305PDQ15 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
3	WP4449259 Whirlpool Glass Window
6	Hinge, Door (Left)
6	Hinge, Door (For Stainless Model Only) (Right)
6	Hinge, Door (For Stainless Model Only) (Left)
6	WP3400832 Whirlpool Screw
6	Hinge, Door (Right)
12	WP9759074 Whirlpool Outer Door Glass
12	Door Glass (Biscuit)
12	Door Glass (White Model)
12	WP9759641 Whirlpool Outer Door Glass
13	Door Handle (Biscuit)
13	Door Handle (Black Model)
13	Door Handle (White Model)
14	Screw
14	Bracket, Handle
20	WP4449809 Whirlpool Screw
20	Retainer, Door
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	WP4449743 Whirlpool Screw
23	RETAINER,GLASS CLIP (BISCUIT)
