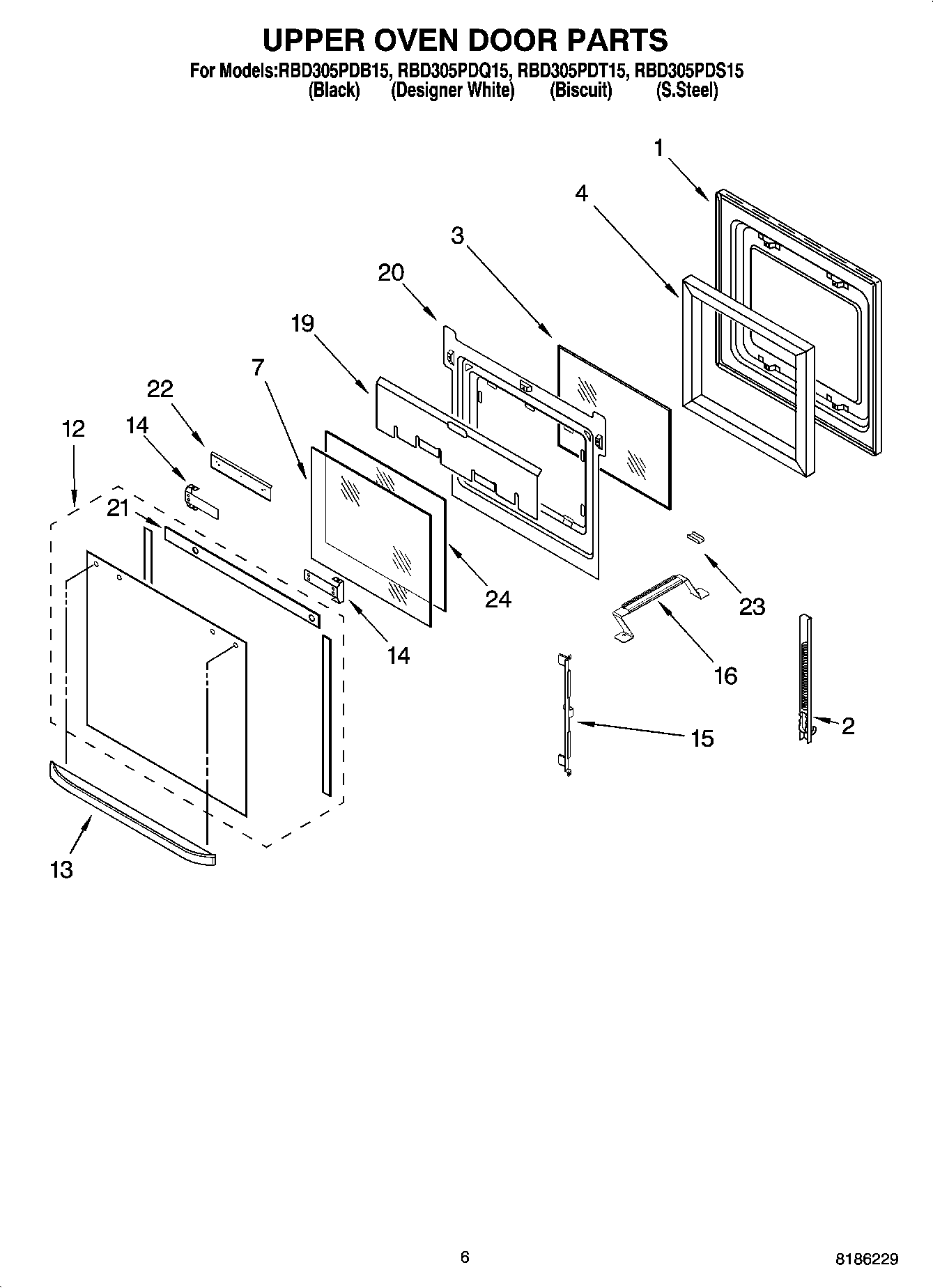

RBD305PDQ15 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	HINGE-DOOR LH/SS DOOR SPRING
2	WP3400832 Whirlpool Screw
2	WP9760571 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
2	Hinge, Door (R.Side)
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
7	WP9759225 Whirlpool Inner Door Glass
12	WP9759074 Whirlpool Outer Door Glass
12	Door Glass (Biscuit)
12	WP9759641 Whirlpool Outer Door Glass
12	Door Glass (White Model)
13	Door Handle (Black Model)
13	Door Handle (Biscuit)
13	Door Handle (White Model)
14	Bracket, Handle
14	Screw
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	WP4457132 Whirlpool Retainer
21	Seal, Door Top
22	4457114 Whirlpool Oven Heat Shield
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	WP4449743 Whirlpool Screw
23	RETAINER,GLASS CLIP (BISCUIT)
24	Glass, Inner
