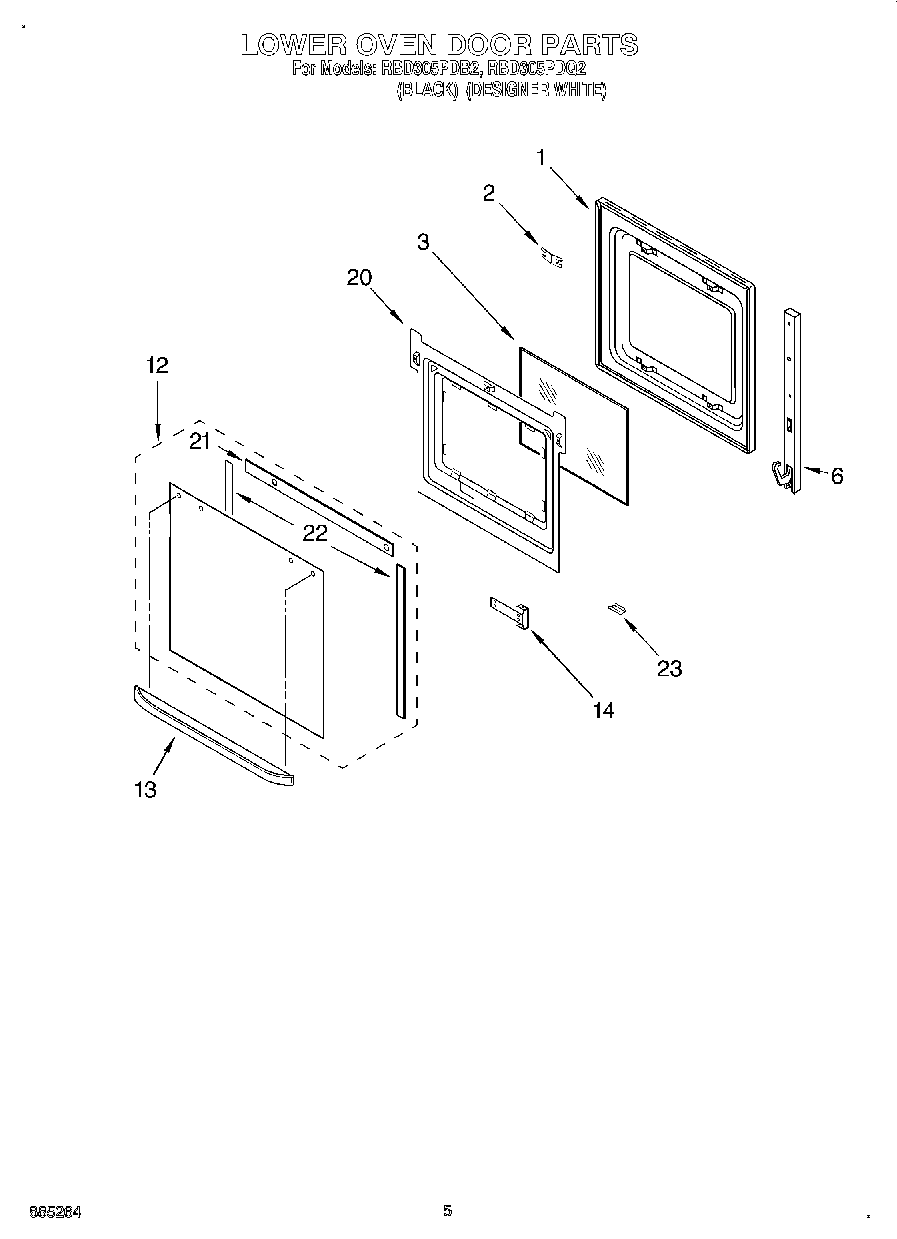

RBD305PDQ2 03 – LOWER OVEN DOOR

Products

Position	Product
1	Door Liner
2	4450935 Whirlpool Oven Door Plug
3	WP4449259 Whirlpool Glass Window
6	WP4455523 Whirlpool Oven Door Hinge
6	WP4449743 Whirlpool Screw
12	Door Glass, Outer (White Model)
12	WP9759641 Whirlpool Outer Door Glass
13	Door Handle (Black Model)
13	Door Handle (White Model)
14	Screw
14	Bracket, Handle
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
22	Seal, Sides
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
