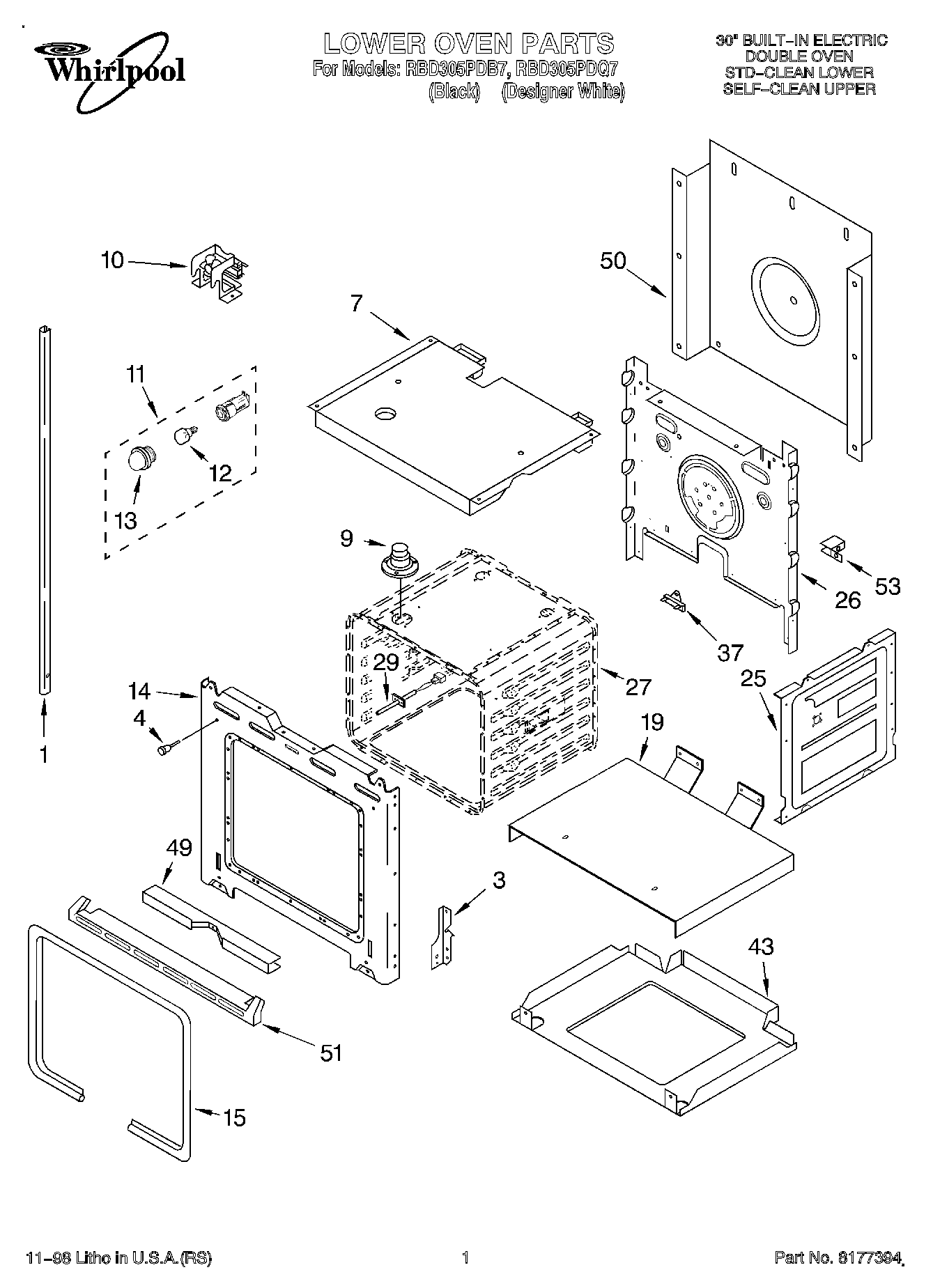

RBD305PDQ7 01 – LOWER OVEN
Written by
in
RBD305PDQ7 01 – LOWER OVEN
Products
Position
Product
1
Trim, Side (LH Black)
1
Trim, Side (Left Hand)) (White Model)
1
Trim, Side (Right Hand) (White Model)
1
Trim, Side (RH Black)
1
WP8281236 Whirlpool Screw
1
Trim, Side (White)
3
Reciever, Hinge (Right Hand)
3
Reciever, Hinge (Left Hand)
4
4448520 Whirlpool Oven Bumper
7
Top, Chassis
9
W10861715 Whirlpool Vent Tube
10
Fan & Bracket Assy
10
Plate, Fan
11
WPW10734065 Whirlpool Light
12
WP4173175 Whirlpool Light Bulb
13
Lens, Light
14
WP4450118 Whirlpool Nut
14
Screw
14
Frame, Front
15
Gasket, Door
19
Support, Insulation
25
Side, Chassis (R.H. & L.H.)
26
Back, Chassis
27
Liner, Oven (Not a Serviceable Part)
29
Sensor
37
WP4451354 Whirlpool Thermal Fuse Assembly
43
Base, Chassis
49
WP4449154 Whirlpool Screw
49
WP4448933 Whirlpool Retainer
50
WP4451747 Whirlpool Rear Cover
51
WPL 4448478
51
WPL 4448477
51
Screw, (2)
53
WPL 4450365
53
W11684730 Whirlpool Insulation
53
WPL 4449845
53
WP4449809 Whirlpool Screw
←
