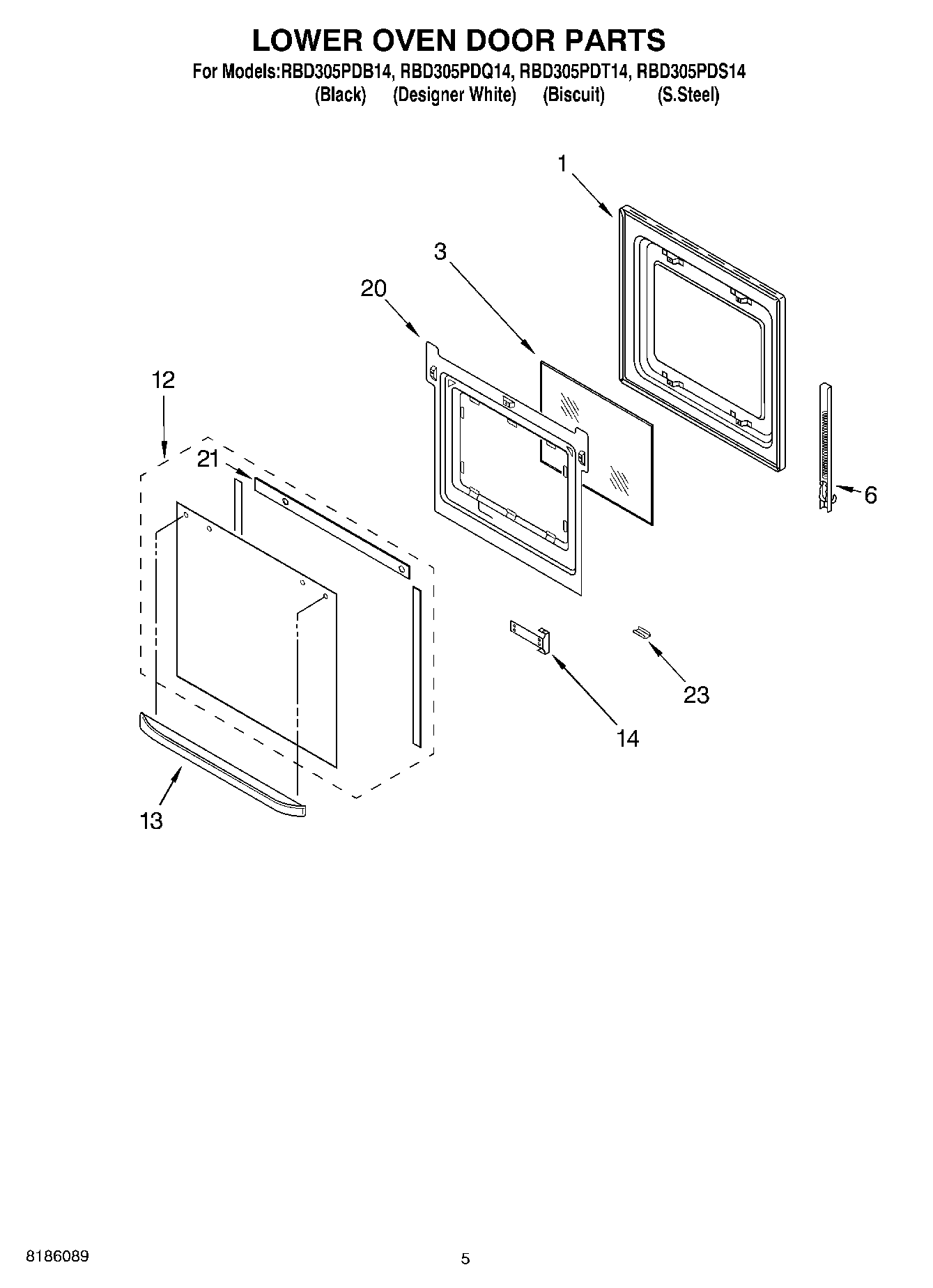

RBD305PDS14 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	WP9759413 Whirlpool Door Liner
3	WP4449259 Whirlpool Glass Window
6	Hinge, Door (Left Side)
6	Hinge, Door (R.Side (L.Brown))
6	WP3400832 Whirlpool Screw
6	Hinge, Door (L.Side (L.Brown))
6	Hinge, Door (Right Side)
12	Door Glass (Biscuit)
12	WP9759074 Whirlpool Outer Door Glass
12	WP9759641 Whirlpool Outer Door Glass
12	Door Glass, Assy (White Model)
13	Door Handle (Biscuit)
13	Door Handle (White Model)
13	Door Handle (Black Model)
14	Bracket, Handle
14	Screw
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	RETAINER,GLASS CLIP (BISCUIT)
23	WP4449743 Whirlpool Screw
23	Clip, Retainer (Black Model)
