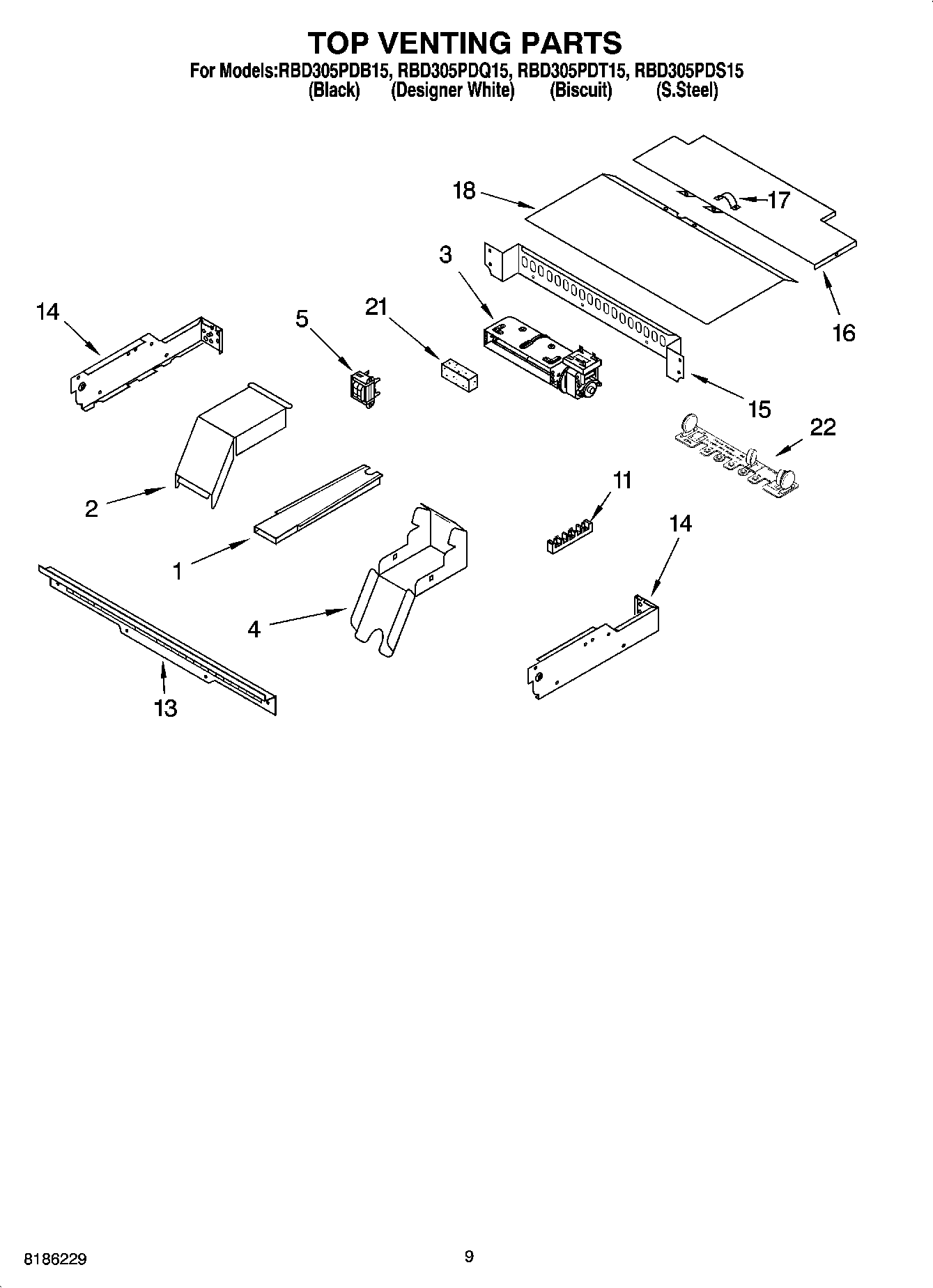

RBD305PDS15 07 – TOP VENTING PARTS, OPTIONAL PARTS
Written by
in
RBD305PDS15 07 – TOP VENTING PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI120337A
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL 591014
Roll Tape, Exhaust Duct
4451761 Whirlpool Oven Support Bracket
WPL ARI120338A
261900 Whirlpool Microwave Spray
8302154 Whirlpool Oven Wire Harness
WPL ARI120335A
WPL ARI120336A
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
4450800 Whirlpool Oven Screw
350930 Whirlpool White Spray Paint
4448664 Whirlpool Oven Mounting Bracket
72017 Whirlpool Appliance Touch-Up Paint White
Wire, 25“ Roll (White 14 GA.)
WP4449809 Whirlpool Screw
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
Spacer, Harness
Conduit, Double
WP112432 Whirlpool Nut Assembly
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
1
Screw
1
4451759 Whirlpool Oven Exhaust Vent
2
4455178 Whirlpool Oven Top Elbow
3
WPW10176670 Whirlpool Blower
4
4455177 Whirlpool Oven Bottom Elbow
5
Transformer, Control
11
Screw
11
WP8203546 Whirlpool Terminal Block
13
WP4450038 Whirlpool Screw
13
Vent, Control Panel
14
W10755214 Whirlpool Side Complete
14
W10790240 Whirlpool Side Assembly Complete
15
Back, Control
16
WP4450551 Whirlpool Top Cabinet
18
WP4452367 Whirlpool Top Cover
21
W10491987 Whirlpool Foam Seal
22
SUPPRESSOR
←
