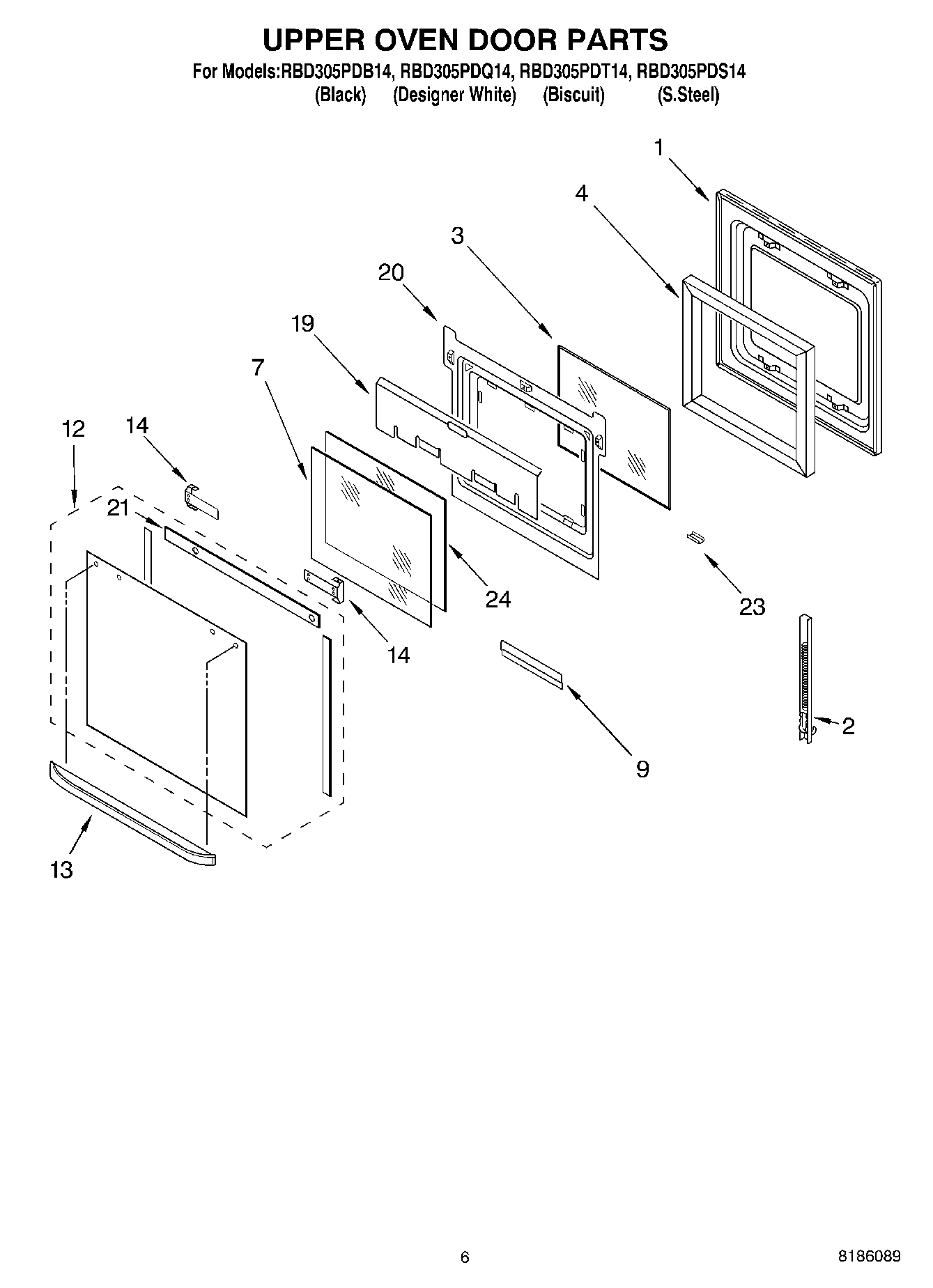

RBD305PDT14 04 – UPPER OVEN DOOR PARTS
Written by
in
RBD305PDT14 04 – UPPER OVEN DOOR PARTS
Products
Position
Product
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1
WP9759413 Whirlpool Door Liner
2
Hinge, Door (R.Side)
2
WP9760572 Whirlpool Door Hinge
2
WP9760571 Whirlpool Door Hinge
2
HINGE-DOOR LH/SS DOOR SPRING
2
WP3400832 Whirlpool Screw
3
WP4449259 Whirlpool Glass Window
4
WP4451722 Whirlpool Door Insulation Assembly
7
WP4449263 Whirlpool Inner Door Glass
9
Retainer, Glass
12
Door Glass, Assy (White Model)
12
WP9759074 Whirlpool Outer Door Glass
12
WP9759641 Whirlpool Outer Door Glass
12
Door Glass (Biscuit)
13
Door Handle (Biscuit)
13
Door Handle (Black Model)
13
Door Handle (White Model)
14
Screw
14
Bracket, Handle
19
Shield, Heat
20
Retainer, Glass
20
WP4449809 Whirlpool Screw
21
Seal, Door Top
23
RETAINER,GLASS CLIP (BISCUIT)
23
Clip, Retainer (White Model)
23
Clip, Retainer (Black Model)
23
WP4449743 Whirlpool Screw
24
Glass, Inner
←
