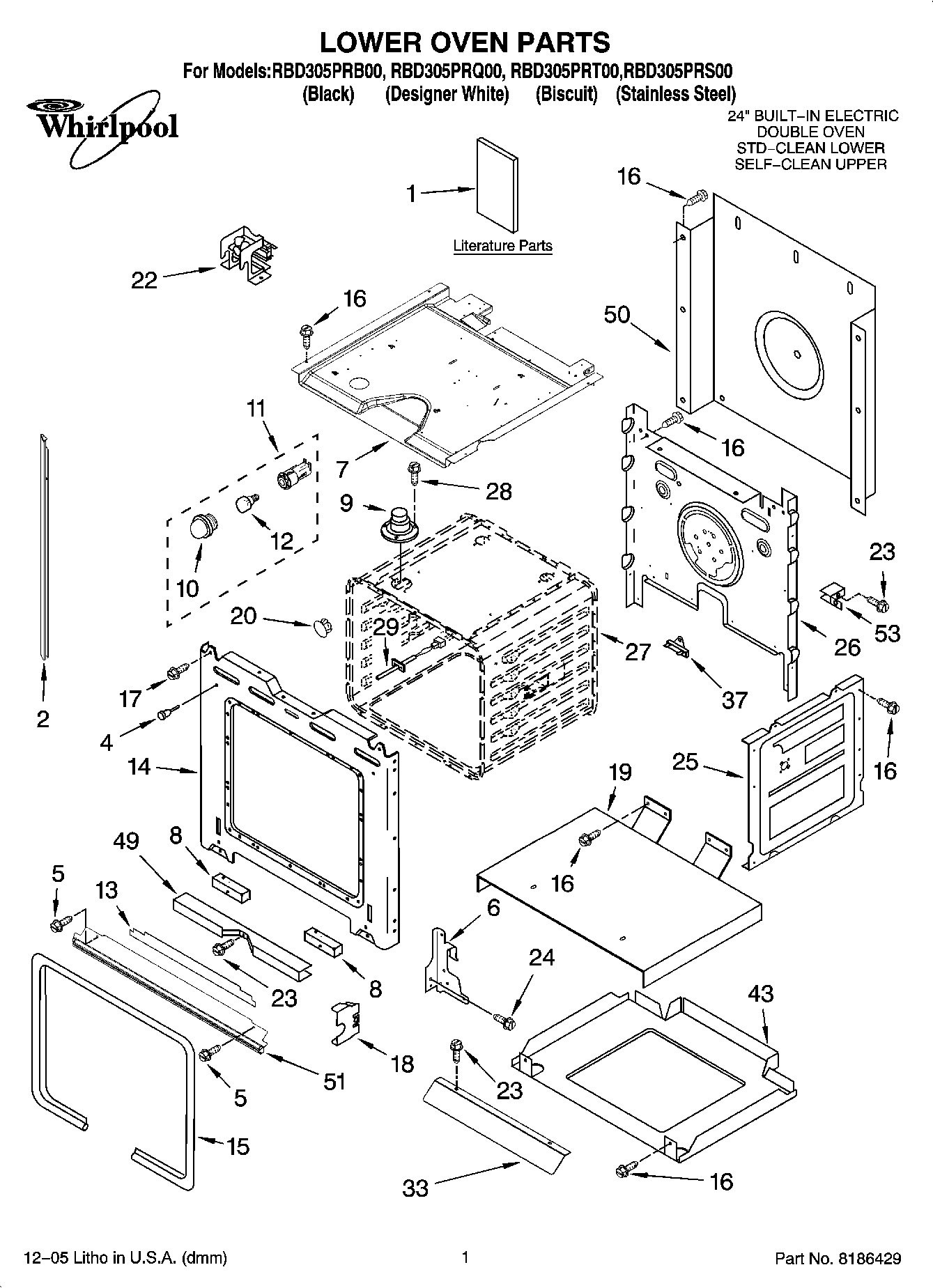

RBD305PRB00 01 – LOWER OVEN PARTS

RBD305PRB00 01 – LOWER OVEN PARTS

Written by

in

RBD305PRB00 01 – LOWER OVEN PARTS

Products

PositionProduct
1Installation Instructions Owners Manual (Sgl/Dbl Oven)
1Tech Sheet (Oven)
1Use & Care Guide (Oven)
1Safe Cooking Tips (French)
1Safe Cooking Tips
2Trim, Side (RH S.Steel)
2Trim, Side (LH S.Steel)
2Trim, Side (LH Biscuit)
2Trim, Side (RH White)
2WPW10339502 Whirlpool Trim Kit
2WPW10339500 Whirlpool Trim
2WPW10339499 Whirlpool Trim Assembly
2W10339503 Whirlpool Trim
44448520 Whirlpool Oven Bumper
5WP3400805 Whirlpool Screw Assembly
5WP3400832 Whirlpool Screw
6WP4455606 Whirlpool Right Hand Hinge
6WP4455605 Whirlpool Left Hand Hinge
7Top Chassis
8Spacer, Foam
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Insulation Bottom Vent
14Frame, Front
15Gasket, Door
16WP4449809 Whirlpool Screw
17Screw
184452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
204450935 Whirlpool Oven Door Plug
22Fan & Bracket Assy
23WP4449154 Whirlpool Screw
24WP4449743 Whirlpool Screw
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28SCREW
29WPW10131825 Whirlpool Oven Temperature Sensor
339760677 Whirlpool Oven Vent Deflector
37WP4451354 Whirlpool Thermal Fuse Assembly
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (S.Steel)
51WPW10207689 Whirlpool Trim Kit
53WPL 4450364
53WPL 4449845
53WPL 4449315
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
