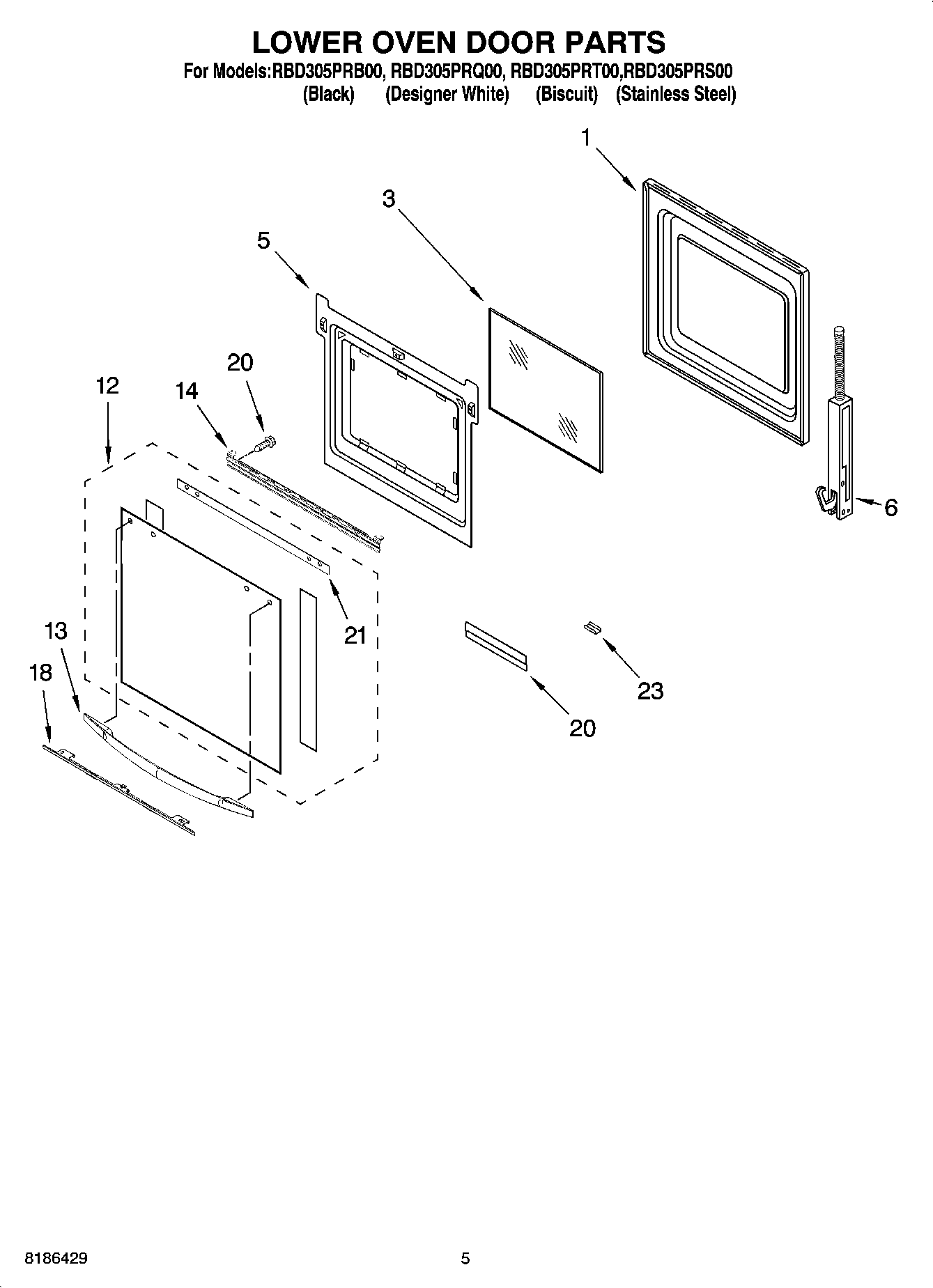

RBD305PRB00 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
3	WP4449259 Whirlpool Glass Window
5	Retainer, Door
6	Hinge, Door (Left)
6	Hinge, Door (For Stainless Model Only) (Left)
6	Hinge, Door (For Stainless Model Only) (Right)
6	Hinge, Door (Right)
12	Assembly, Door Glass (Black)
12	Assembly, Door Glass (Stainless)
12	Door Glass, Assy (White)
12	Assembly, Door Glass (Biscuit)
13	Door Handle (White)
13	Door Handle (Black)
13	Door Handle (Biscuit)
14	Bracket, Handle
18	Clip, Door (White)
18	Clip, Door (Black)
18	Clip, Door (Biscuit)
20	Screw
21	Seal – Door
23	Retainer, Glass-Clip (Stainless Steel)
