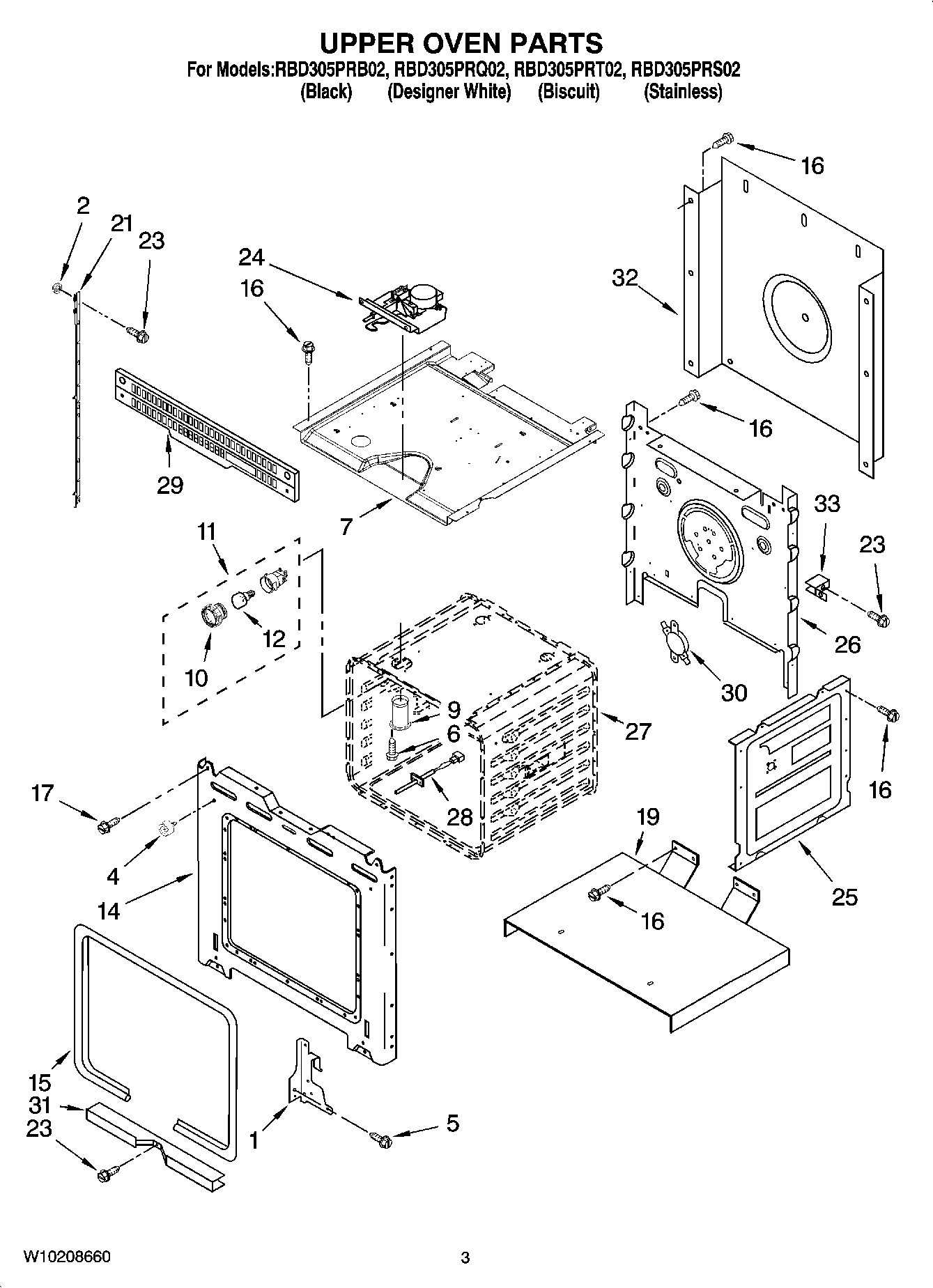

RBD305PRB02 02 – UPPER OVEN PARTS

Products

Position	Product
	Following Parts Not Illustrated
	WPL 4450365
	W11684730 Whirlpool Insulation
	Insulation
1	WP4455606 Whirlpool Right Hand Hinge
1	WP4455605 Whirlpool Left Hand Hinge
2	WP4448444 Whirlpool Grommet
4	W10105790 Whirlpool Bumper
5	WP4449743 Whirlpool Screw
6	SCREW
7	Top Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	WP4449809 Whirlpool Screw
17	Screw
19	Support, Insulation
21	WP8302793 Whirlpool Mounting Rail
21	Rail, Side (Left)
23	WP4449154 Whirlpool Screw
24	WP9760889 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	WPW10131825 Whirlpool Oven Temperature Sensor
29	Vent, Center
30	WP9759243 Whirlpool Thermostat
31	WP4448933 Whirlpool Retainer
32	WP4451747 Whirlpool Rear Cover
33	WPL 4449845
