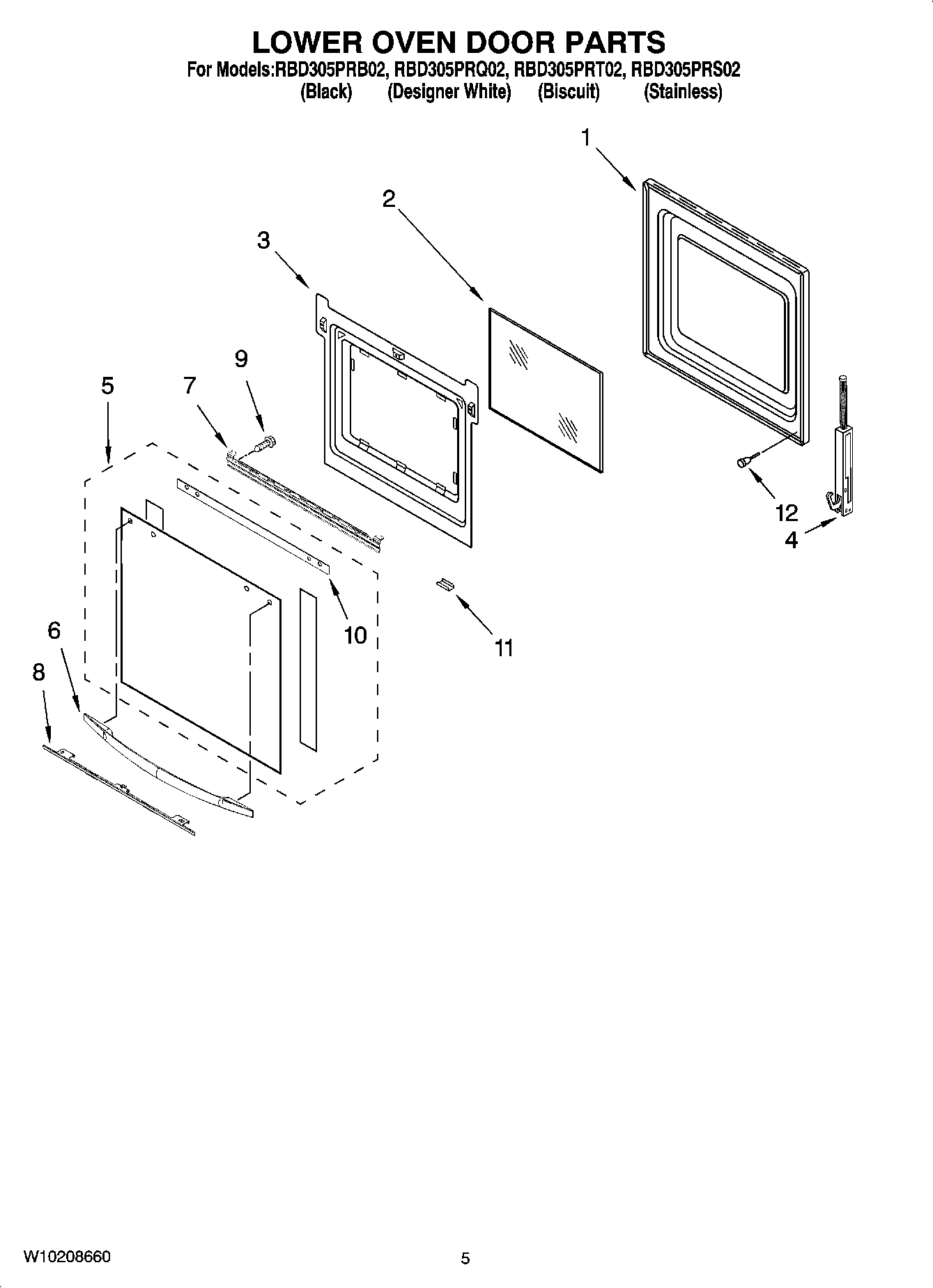

RBD305PRQ02 03 – LOWER OVEN DOOR PARTSadmin2025-04-26T11:39:50+00:00RBD305PRQ02 03 – LOWER OVEN DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WP9759413 Whirlpool Door Liner |
| 2 | WP4449259 Whirlpool Glass Window |
| 3 | Retainer, Door |
| 4 | Hinge, Door (Right) |
| 4 | Hinge, Door (Left) |
| 4 | Hinge, Door (For Stainless Model Only) (Left) |
| 4 | Hinge, Door (For Stainless Model Only) (Right) |
| 5 | Assembly, Door Glass (Stainless) |
| 5 | Assembly, Door Glass (Black) |
| 5 | Door Glass, Assy (White) |
| 5 | Assembly, Door Glass (Biscuit) |
| 6 | Door Handle (Black) |
| 6 | Door Handle (White) |
| 6 | Door Handle (Biscuit) |
| 7 | Bracket, Handle |
| 8 | Clip, Door (Biscuit) |
| 8 | Clip, Door (White) |
| 8 | Clip, Door (Black) |
| 9 | Screw |
| 10 | Seal - Door |
| 11 | Retainer, Glass-Clip (Stainless Steel) |
| 12 | 4448520 Whirlpool Oven Bumper |
