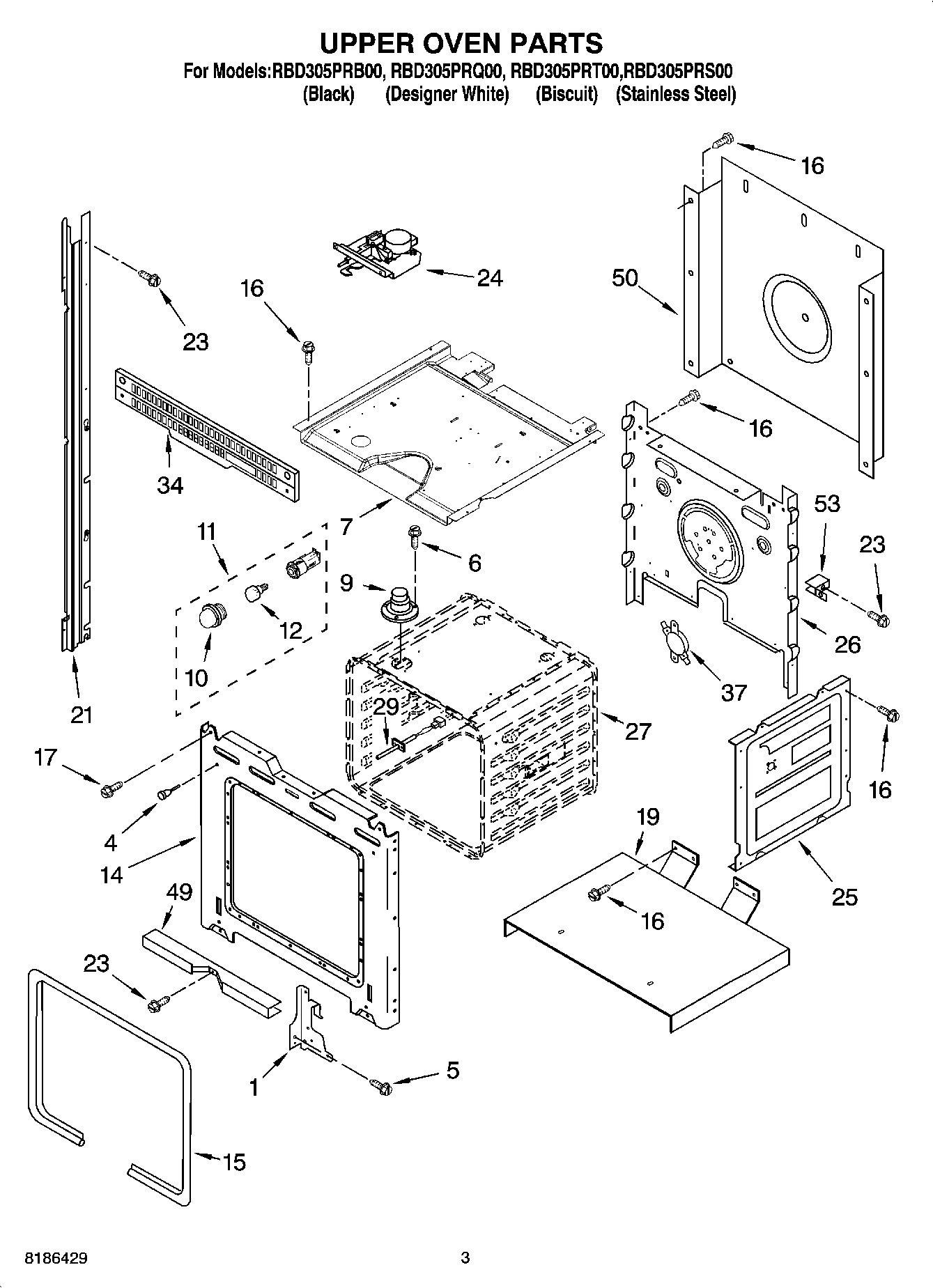

RBD305PRS00 02 – UPPER OVEN PARTS

Products

Position	Product
1	WP4455606 Whirlpool Right Hand Hinge
1	WP4455605 Whirlpool Left Hand Hinge
4	4448520 Whirlpool Oven Bumper
5	WP4449743 Whirlpool Screw
6	SCREW
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	Frame, Front
15	WP4455381 Whirlpool Door Gasket
16	WP4449809 Whirlpool Screw
17	Screw
19	Support, Insulation
21	WP8302793 Whirlpool Mounting Rail
21	Rail, Side (Left)
21	WP4448444 Whirlpool Grommet
23	WP4449154 Whirlpool Screw
24	WP9760889 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
29	Vent, Center
34	Vent, Center
37	WP9759243 Whirlpool Thermostat
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
53	WPL 4450365
53	Insulation, Wrap
53	WPL 4449845
53	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
