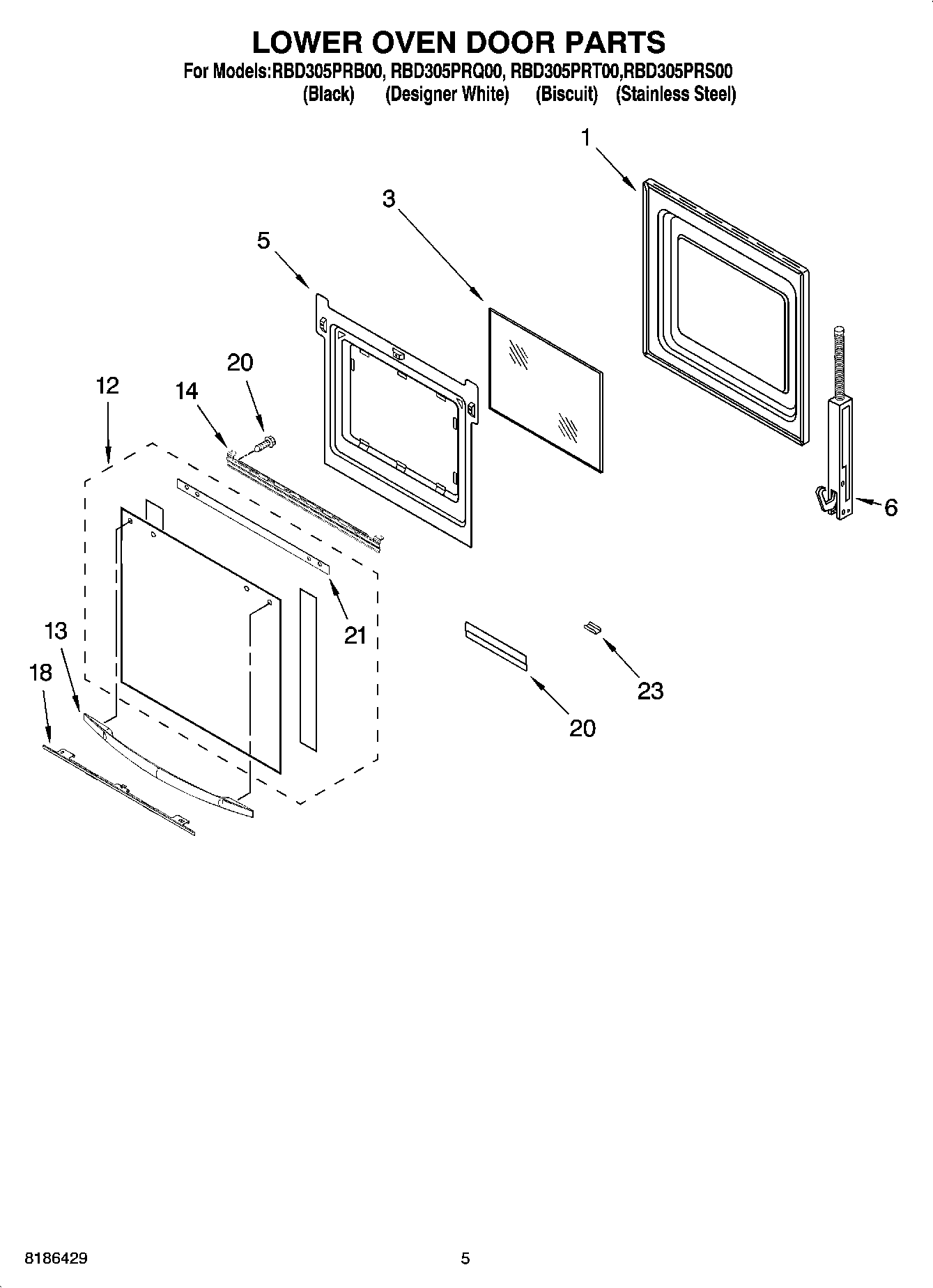

RBD305PRS00 03 – LOWER OVEN DOOR PARTSadmin2025-04-26T11:40:52+00:00RBD305PRS00 03 – LOWER OVEN DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WP9759413 Whirlpool Door Liner |
| 3 | WP4449259 Whirlpool Glass Window |
| 5 | Retainer, Door |
| 6 | Hinge, Door (Left) |
| 6 | Hinge, Door (For Stainless Model Only) (Left) |
| 6 | Hinge, Door (For Stainless Model Only) (Right) |
| 6 | Hinge, Door (Right) |
| 12 | Assembly, Door Glass (Black) |
| 12 | Assembly, Door Glass (Stainless) |
| 12 | Door Glass, Assy (White) |
| 12 | Assembly, Door Glass (Biscuit) |
| 13 | Door Handle (White) |
| 13 | Door Handle (Black) |
| 13 | Door Handle (Biscuit) |
| 14 | Bracket, Handle |
| 18 | Clip, Door (White) |
| 18 | Clip, Door (Black) |
| 18 | Clip, Door (Biscuit) |
| 20 | Screw |
| 21 | Seal - Door |
| 23 | Retainer, Glass-Clip (Stainless Steel) |
