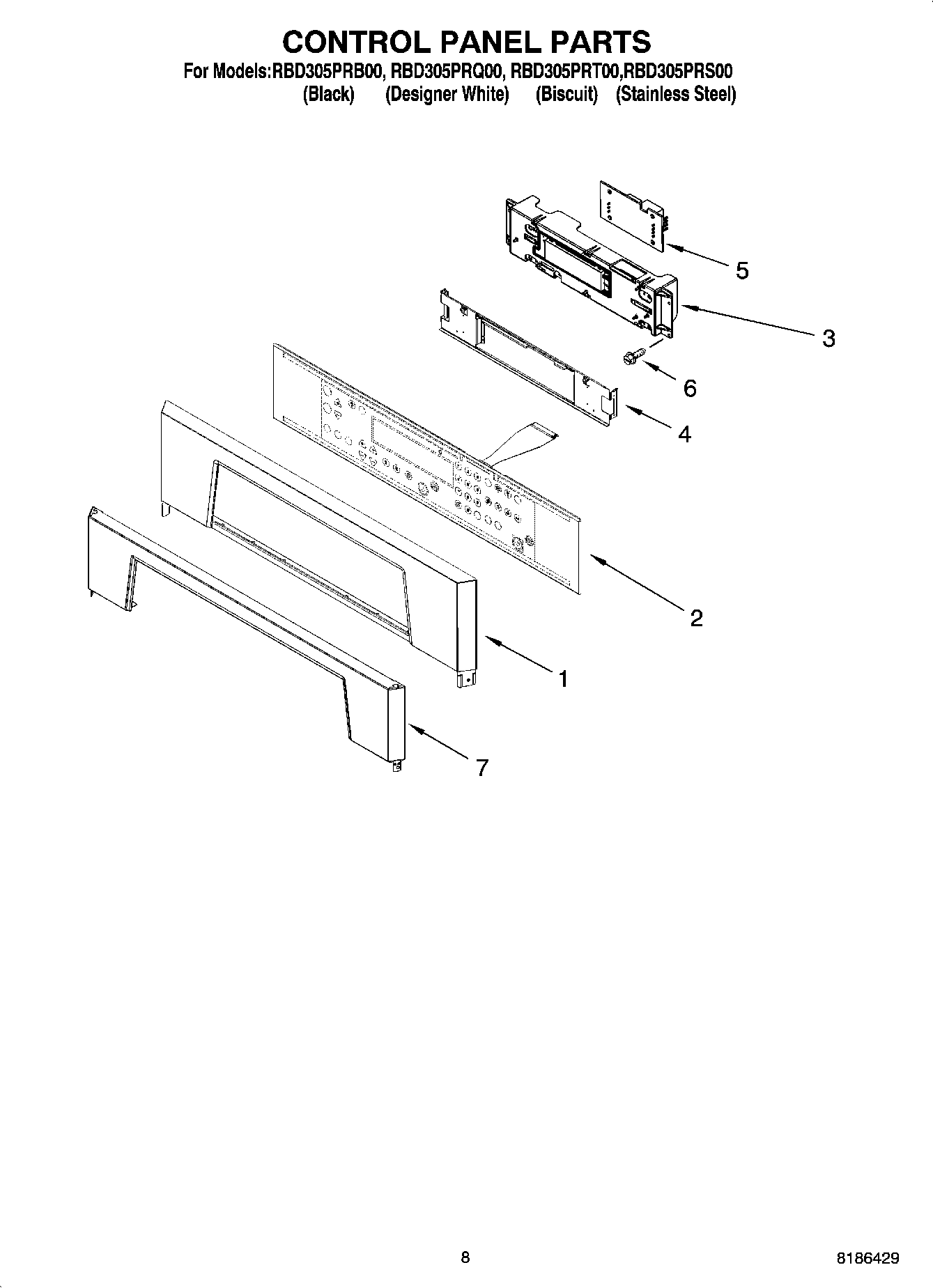

RBD305PRT00 06 – CONTROL PANEL PARTS

RBD305PRT00 06 – CONTROL PANEL PARTS

Written by

in

RBD305PRT00 06 – CONTROL PANEL PARTS

Products

PositionProduct
1WP8302848 Whirlpool Control Panel
1WP8302849 Whirlpool Control Panel
1Control Panel (Biscuit)
2Membrane Switch (Biscuit)
2Membrane Switch (White)
2Membrane Switch (Black)
3Assy, Control
4Control, Basket
5Latch, Sister Board
6WP4449745 Whirlpool Screw
7WPW10172165 Whirlpool Trim Panel
