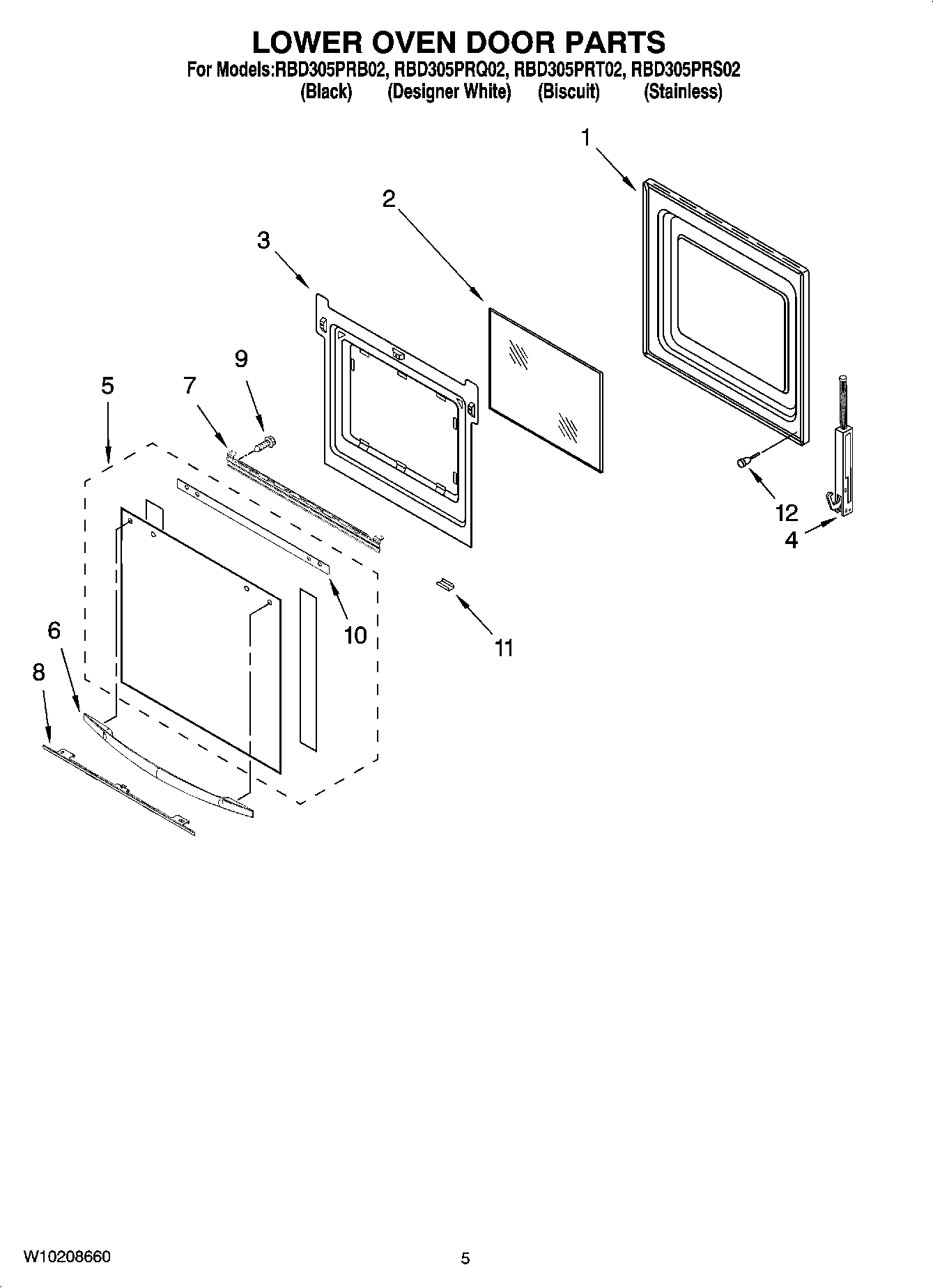

RBD305PRT02 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP4449259 Whirlpool Glass Window
3	Retainer, Door
4	Hinge, Door (Right)
4	Hinge, Door (Left)
4	Hinge, Door (For Stainless Model Only) (Left)
4	Hinge, Door (For Stainless Model Only) (Right)
5	Assembly, Door Glass (Stainless)
5	Assembly, Door Glass (Black)
5	Door Glass, Assy (White)
5	Assembly, Door Glass (Biscuit)
6	Door Handle (Black)
6	Door Handle (White)
6	Door Handle (Biscuit)
7	Bracket, Handle
8	Clip, Door (Biscuit)
8	Clip, Door (White)
8	Clip, Door (Black)
9	Screw
10	Seal – Door
11	Retainer, Glass-Clip (Stainless Steel)
12	4448520 Whirlpool Oven Bumper
