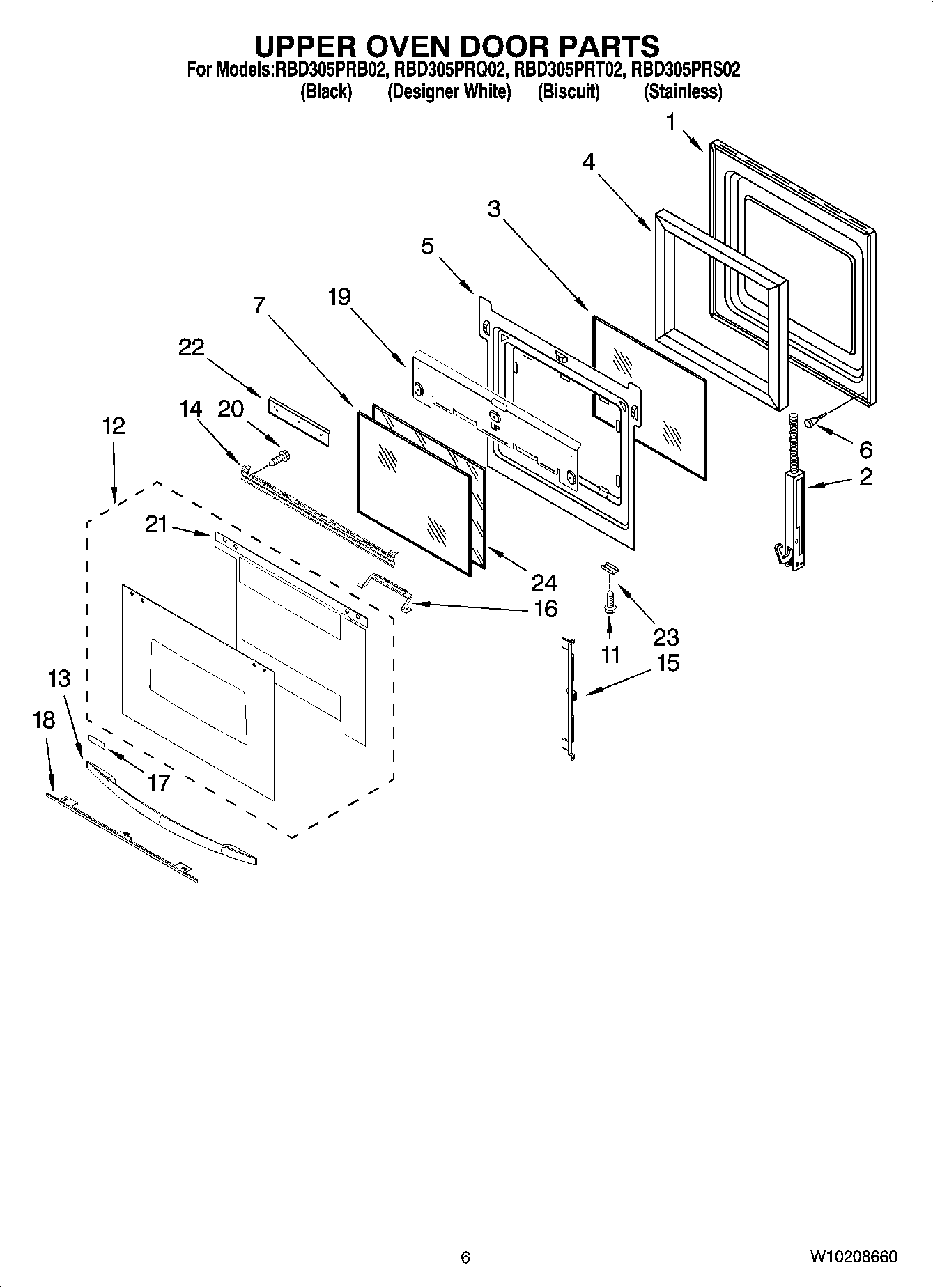

RBD305PRT02 04 – UPPER OVEN DOOR PARTSadmin2025-04-26T11:40:11+00:00RBD305PRT02 04 – UPPER OVEN DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WP9759413 Whirlpool Door Liner |
| 2 | HINGE-DOOR LH/SS DOOR SPRING |
| 2 | Hinge, Door (For Stainless Model Only) (Right) |
| 2 | WP9760571 Whirlpool Door Hinge |
| 2 | WP9760572 Whirlpool Door Hinge |
| 3 | WP4449259 Whirlpool Glass Window |
| 4 | WP4451722 Whirlpool Door Insulation Assembly |
| 5 | WP4457132 Whirlpool Retainer |
| 6 | 4448520 Whirlpool Oven Bumper |
| 7 | WP9759225 Whirlpool Inner Door Glass |
| 11 | WP3400832 Whirlpool Screw |
| 12 | Assembly, Door Glass (Biscuit) |
| 12 | Assembly, Door Glass (Stainless) |
| 12 | Assembly, Door Glass (Black) |
| 12 | Door Glass, Assy (White) |
| 13 | Door Handle (Biscuit) |
| 13 | Door Handle (White) |
| 13 | Door Handle (Black) |
| 14 | Bracket, Handle |
| 15 | WP9759229 Whirlpool Mounting Bracket |
| 16 | Bracket (3rd Glsss) |
| 17 | BADGE |
| 18 | Clip, Door (Biscuit) |
| 18 | Clip, Door (Black) |
| 18 | Clip, Door (White) |
| 19 | Shield, Heat |
| 20 | Screw |
| 21 | Seal - Door |
| 22 | 4457114 Whirlpool Oven Heat Shield |
| 23 | Retainer, Glass-Clip (Stainless Steel) |
| 24 | Glass, Inner |
