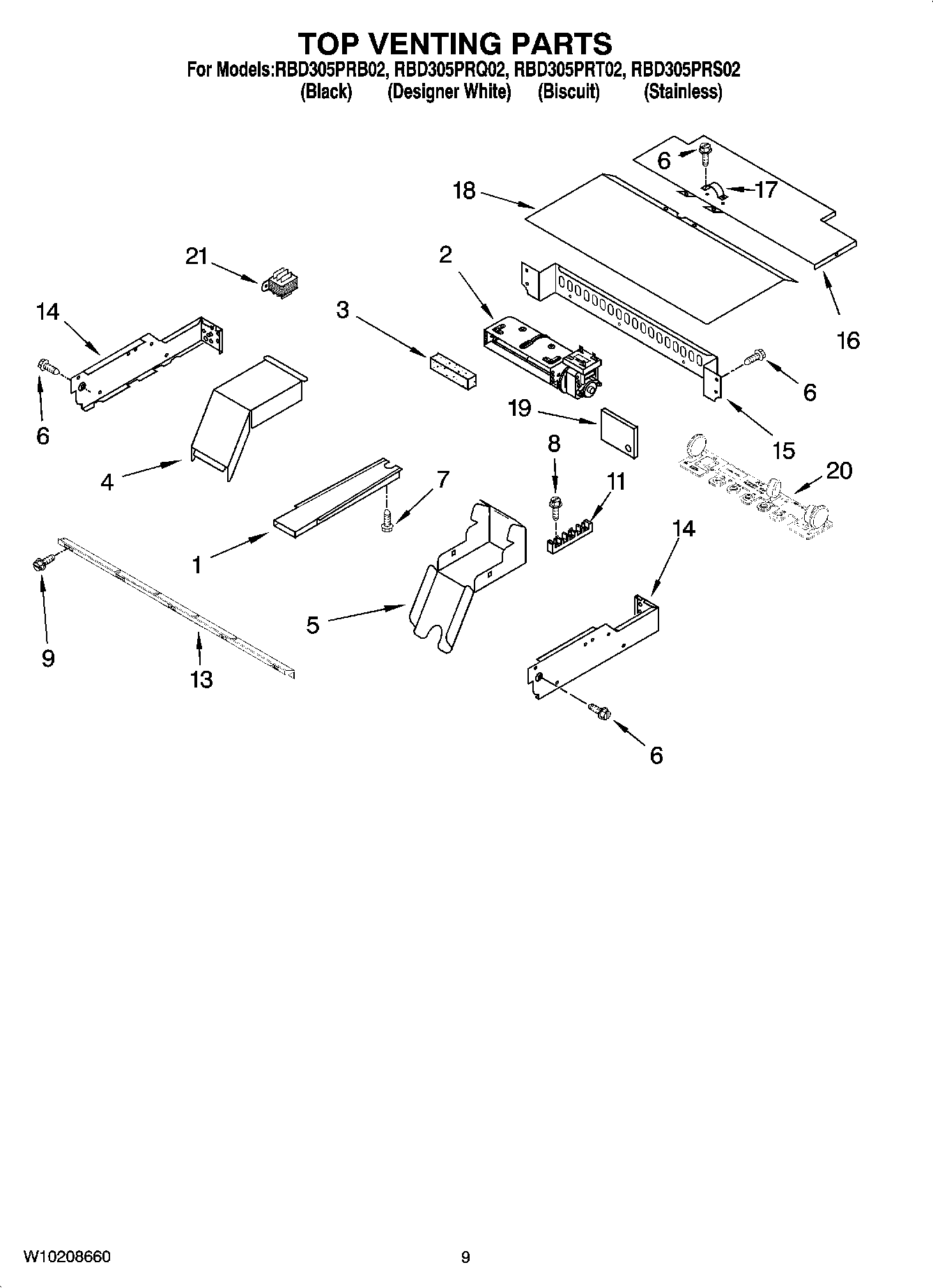

RBD305PRT02 07 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WP261869 Whirlpool Microwave Paint
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	WIRING HARNESS PARTS
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	SPLICING WIRES–25FT. LENGTH
	WPL 591014
	ADHESIVE
	8302154 Whirlpool Oven Wire Harness
	4451761 Whirlpool Oven Support Bracket
	261900 Whirlpool Microwave Spray
	242831 Whirlpool Oven Wire
	4452400 Whirlpool Microwave Wire Harness
	Conduit, Double
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	Nut
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	4448664 Whirlpool Oven Mounting Bracket
	4450800 Whirlpool Oven Screw
	WPW10339879 Whirlpool Wire Tie
	285006 Whirlpool Spray
	WP4448950 Whirlpool Screw
	Miscellaneous
	8528351 Whirlpool Clip
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
1	4451759 Whirlpool Oven Exhaust Vent
2	WPW10176670 Whirlpool Blower
2	WPW10016550 Whirlpool Blower Cooling Fan
3	W10491987 Whirlpool Foam Seal
4	4455178 Whirlpool Oven Top Elbow
5	4455177 Whirlpool Oven Bottom Elbow
7	Screw
8	Screw
9	WP4450038 Whirlpool Screw
11	WP8203546 Whirlpool Terminal Block
13	8303497 Whirlpool Oven Vent Control
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
18	WP4452367 Whirlpool Top Cover
19	Plate, Fan
20	SUPPRESSOR
21	Transformer
