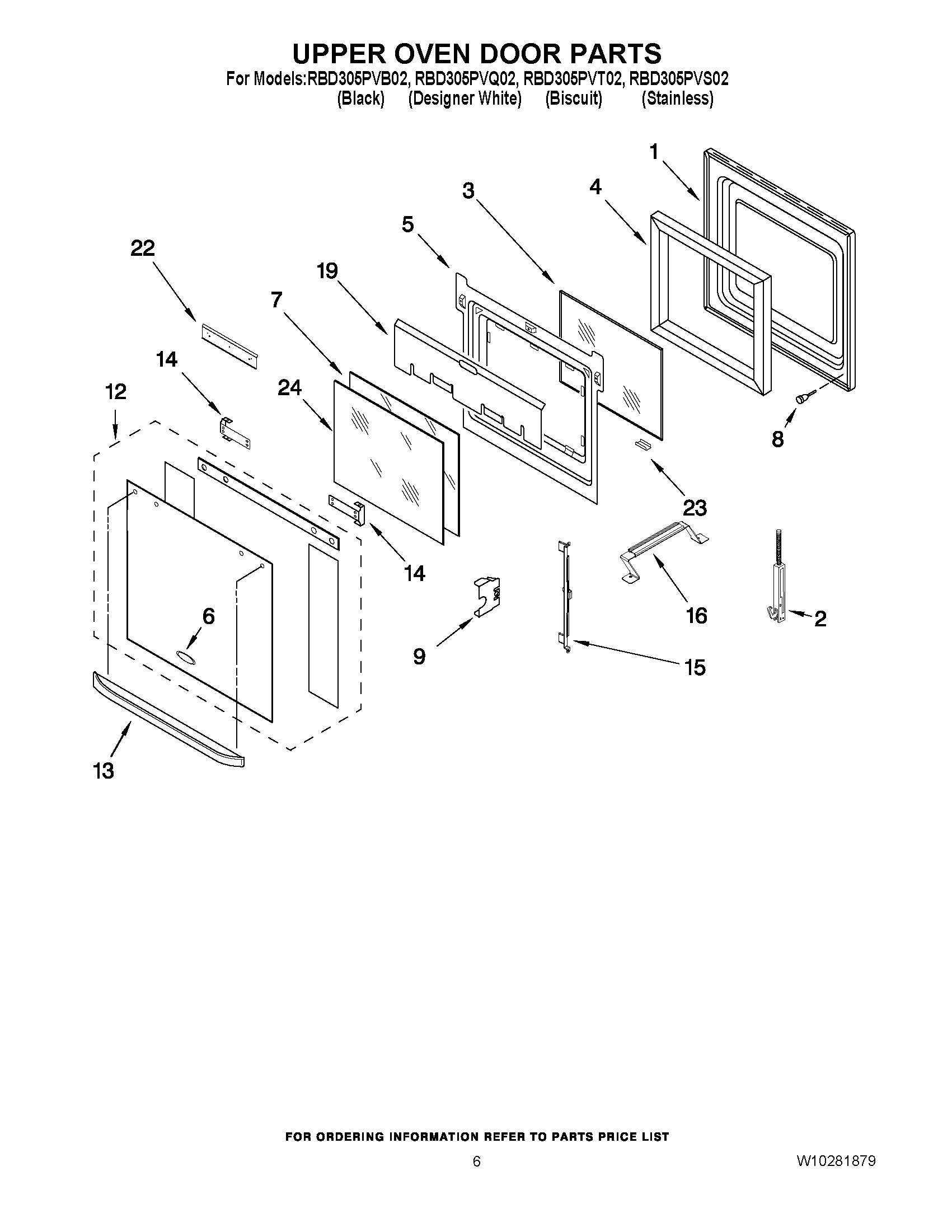

RBD305PVB02 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760576 Whirlpool Door Hinge (Left)
2	WP4449743 Whirlpool Screw
2	Hinge, Door (For Stainless Model Only) (Right)
2	HINGE-DOOR LH/SS DOOR SPRING
2	HINGE-DOOR
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
6	Nameplate
7	WP9759225 Whirlpool Inner Door Glass
8	4448520 Whirlpool Oven Bumper
9	4452152 Whirlpool Oven Mounting Bracket
12	W10401225 Whirlpool Oven Outer Door Glass
12	Assembly, Door Glass (White)
12	Assembly, Door Glass (Biscuit)
12	Assembly, Door Glass (Black)
13	Door Handle (Stainless)
13	Door Handle (Black)
13	Door Handle (White)
13	Door Handle (Biscuit)
14	Bracket, Handle (L.Hand)
14	4455803 Whirlpool Oven Bracket
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	WP4449809 Whirlpool Screw
19	SHIELD, HEAT TOP
22	4457114 Whirlpool Oven Heat Shield
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	RETAINER,GLASS CLIP (BISCUIT)
24	Glass, Inner
