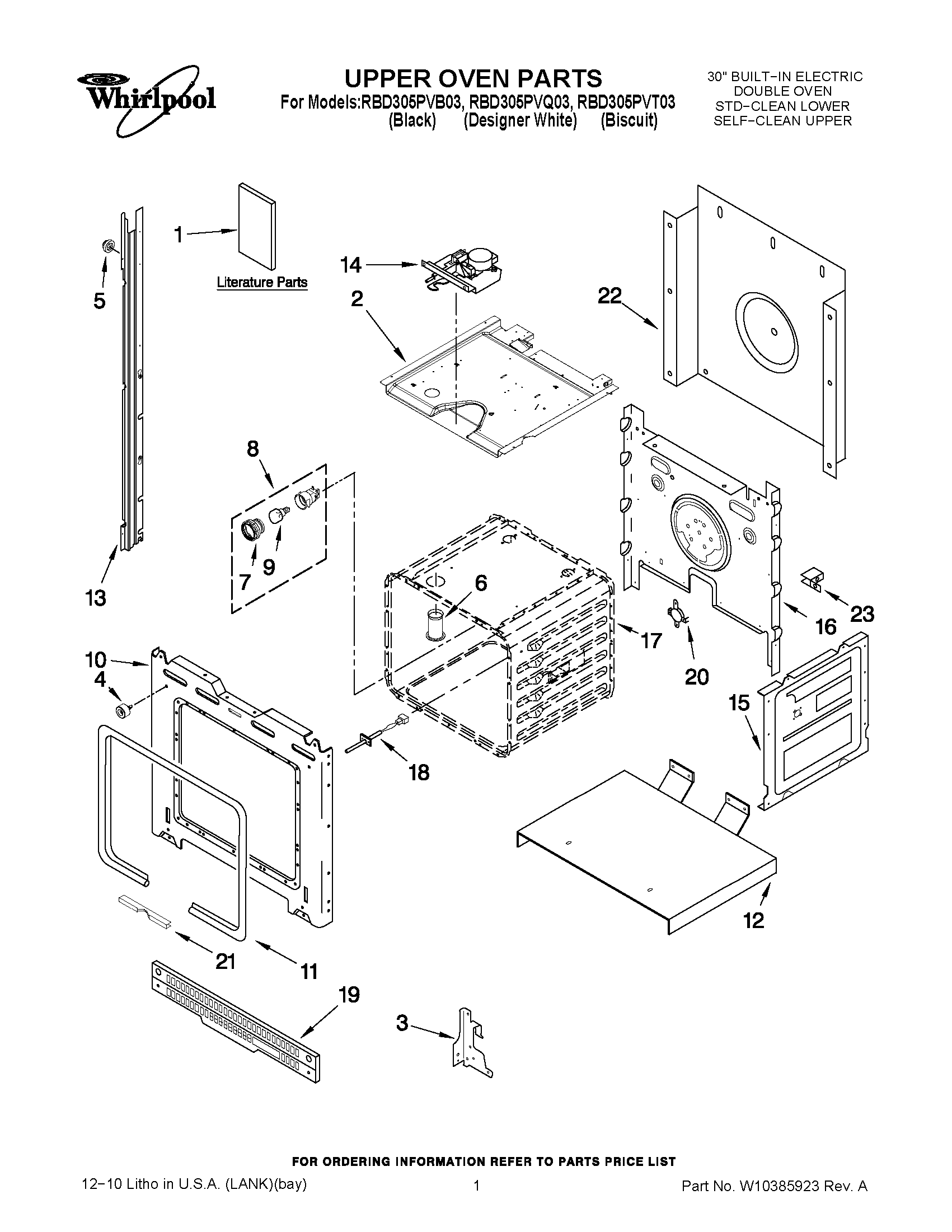

RBD305PVB03 01 – UPPER OVEN PARTS

Products

Position	Product
NI	WPL 4450365
NI	W11684730 Whirlpool Insulation
1	Use & Care Guide
1	Tech Sheet (Oven)
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	Installation Instructions
1	Installation Instructions (Bottom Trim)
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
2	Top Chassis
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	WP4448444 Whirlpool Grommet
6	W10861715 Whirlpool Vent Tube
7	Lens, Light (2)
8	WPW10734065 Whirlpool Light
9	WP4173175 Whirlpool Light Bulb
10	WPW10115831 Whirlpool Front Frame
10	Screw
11	W11675844 Whirlpool Oven Gasket
12	Support, Insulation
13	WP8302793 Whirlpool Mounting Rail
13	Rail, Side (Left)
14	WPW10195934 Whirlpool Door Latch
15	W10782197 Whirlpool Side Panel
16	Back, Chassis
17	CABINET (NOT A SERVICEABLE PART)
18	WPW10131825 Whirlpool Oven Temperature Sensor
19	Vent, Center
20	WP9759243 Whirlpool Thermostat
21	WP4449154 Whirlpool Screw
21	WP4448933 Whirlpool Retainer
22	WP4451747 Whirlpool Rear Cover
23	WPL 4449845
23	SCREW
