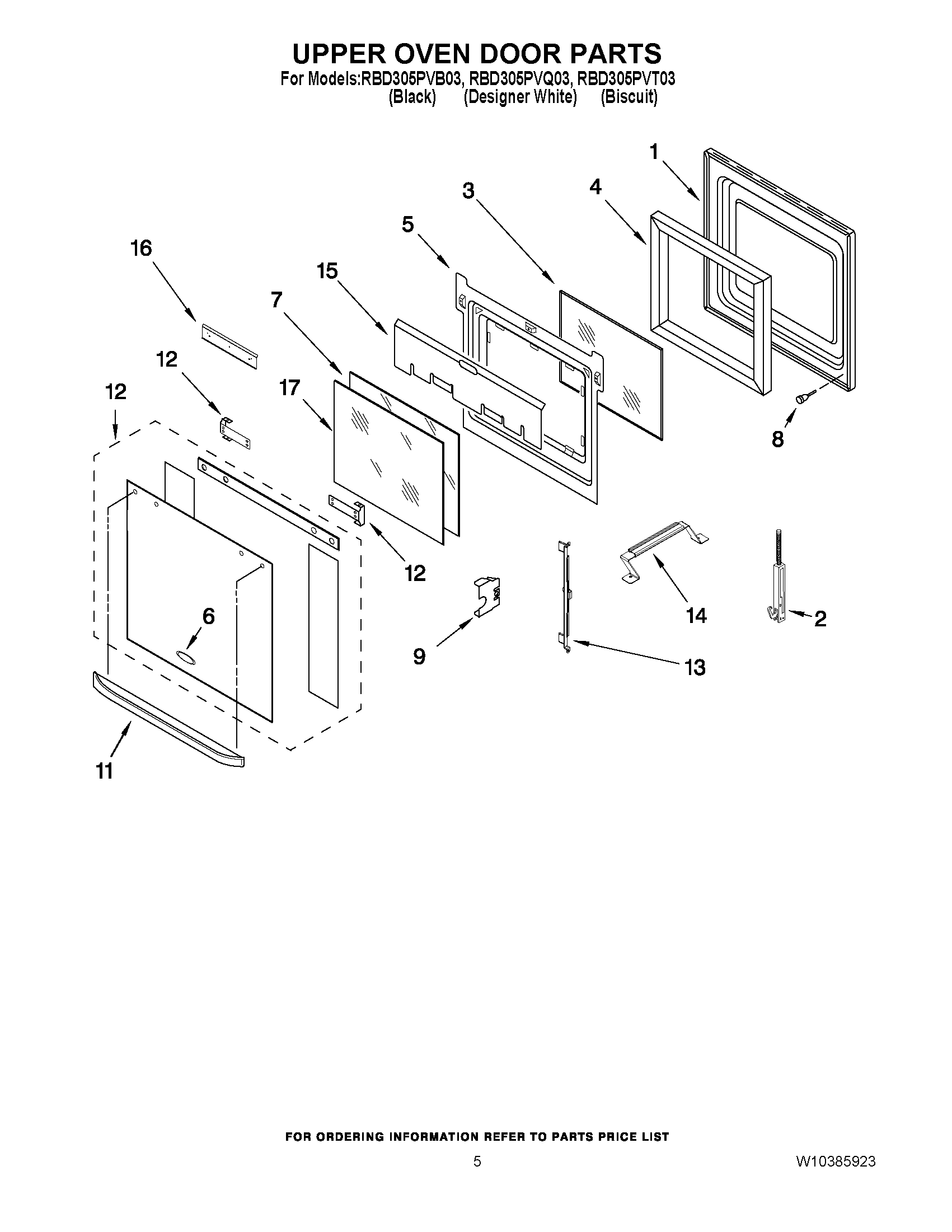

RBD305PVB03 03 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760576 Whirlpool Door Hinge (Left)
2	WP4449743 Whirlpool Screw
2	HINGE-DOOR
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
6	Nameplate
7	WP9759225 Whirlpool Inner Door Glass
8	4448520 Whirlpool Oven Bumper
9	4452152 Whirlpool Oven Mounting Bracket
11	Door Handle (Biscuit)
11	Door Handle (Black)
11	Door Handle (White)
12	Assembly, Door Glass (White)
12	Assembly, Door Glass (Biscuit)
12	Assembly, Door Glass (Black)
12	Bracket, Handle (L.Hand)
12	4455803 Whirlpool Oven Bracket
13	WP9759229 Whirlpool Mounting Bracket
14	Bracket (3rd Glsss)
15	SHIELD, HEAT TOP
15	SCREW
16	4457114 Whirlpool Oven Heat Shield
17	Glass, Inner
