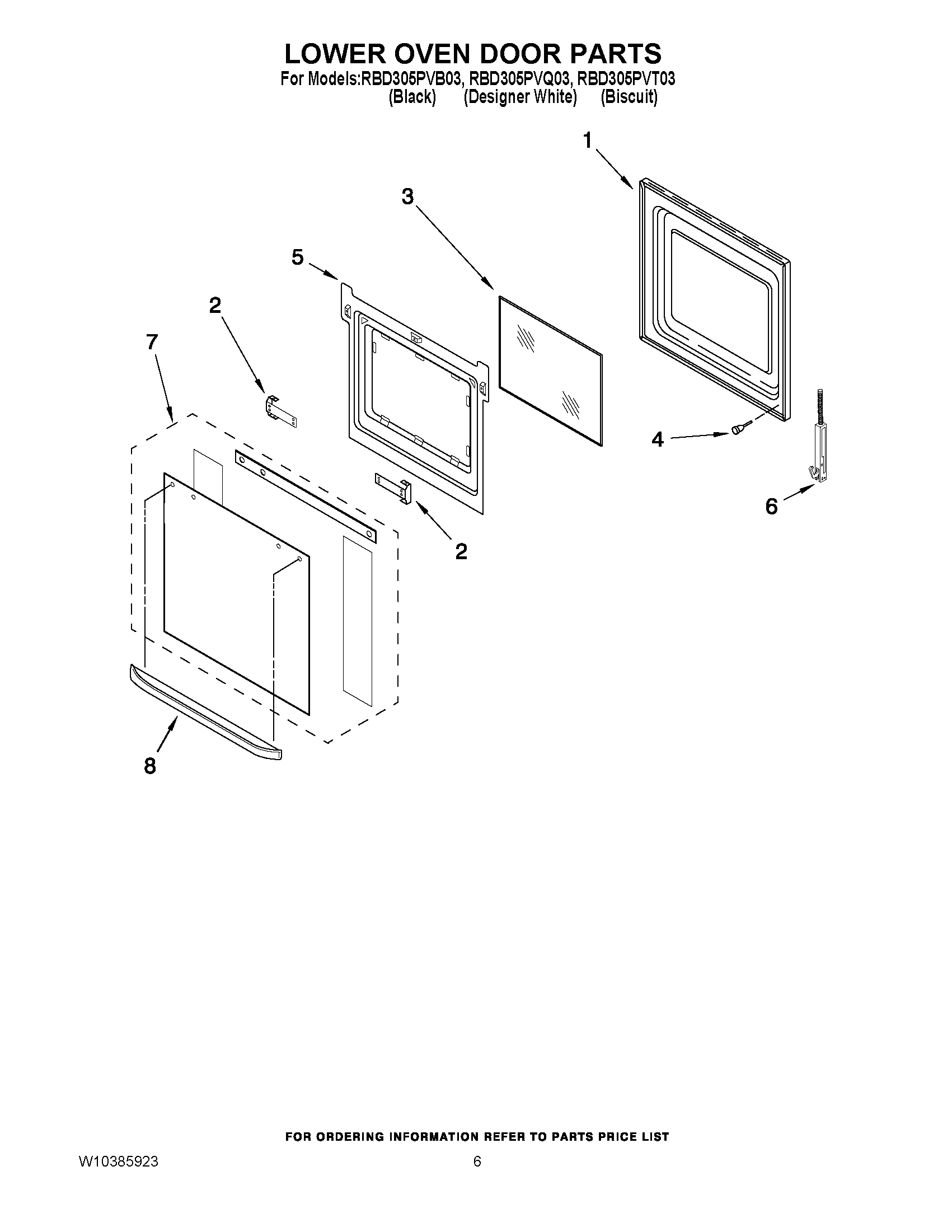

RBD305PVB03 04 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
24455803 Whirlpool Oven Bracket
2Bracket, Handle (L.Hand)
3WP4449259 Whirlpool Glass Window
44448520 Whirlpool Oven Bumper
5SCREW
5WP4457132 Whirlpool Retainer
6Hinge, Door (For Stainless Model Only) (Left)
6Hinge, Door (For Stainless Model Only) (Right)
6WP4449743 Whirlpool Screw
7Assembly, Door Glass (Black)
7Assembly, Door Glass (White)
7Assembly, Door Glass (Biscuit)
8Door Handle (Black)
8Door Handle (White)
8Door Handle (Biscuit)
