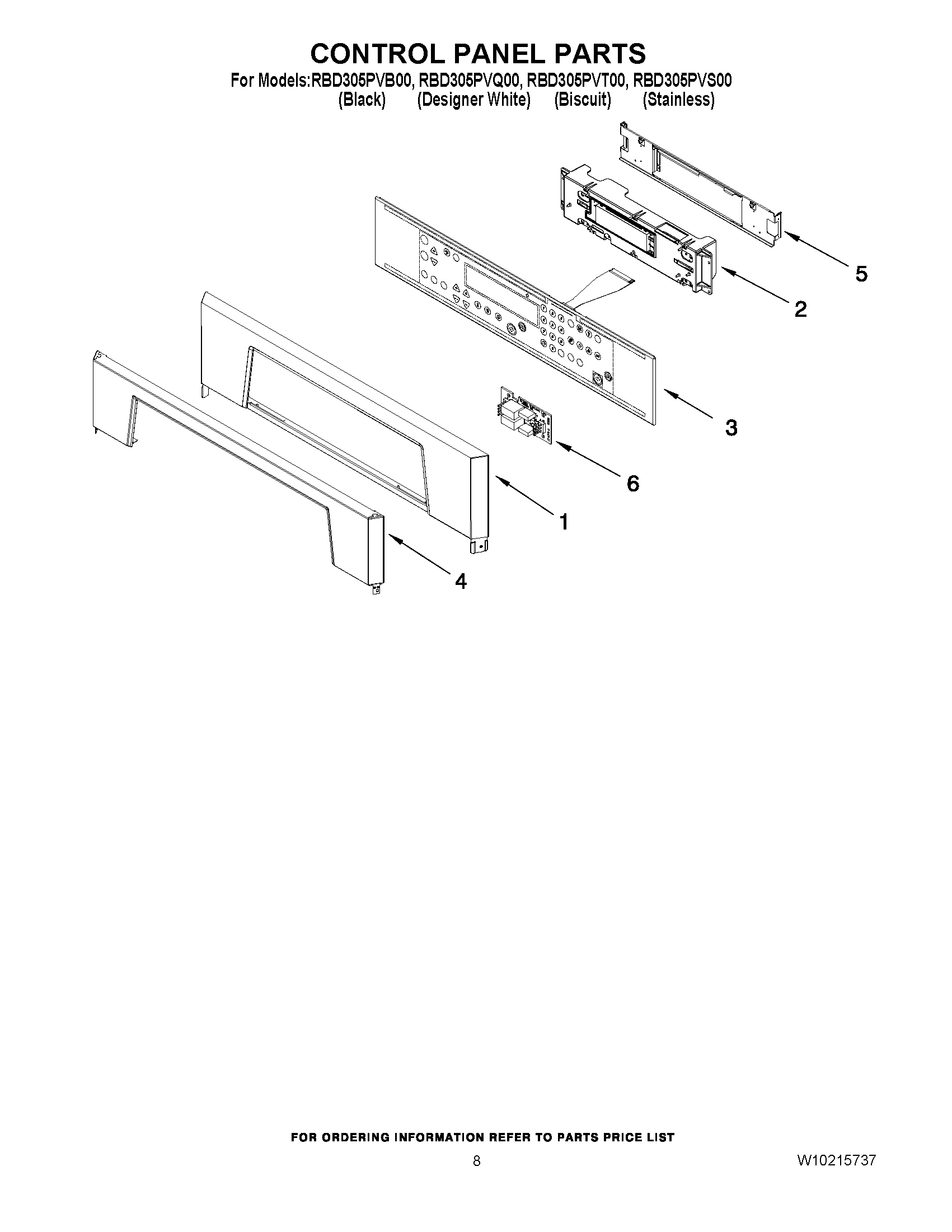

RBD305PVQ00 06 – CONTROL PANEL PARTS

RBD305PVQ00 06 – CONTROL PANEL PARTS

Written by

in

RBD305PVQ00 06 – CONTROL PANEL PARTS

Products

PositionProduct
1WP8302848 Whirlpool Control Panel
1WP8302849 Whirlpool Control Panel
1Control Panel (Biscuit)
2Assy, Control
3Membrane Switch (Biscuit)
3Membrane Switch (White)
3Membrane Switch (Black)
4Trim, Control Panel (Biscuit)
4WPW10172165 Whirlpool Trim Panel
4Trim, Control Panel (White)
4WPW10172167 Whirlpool Trim Panel
5W10222958 Whirlpool Mounting Bracket
6Latch, Sister Board
