RBD305PVQ02 06 – CONTROL PANEL PARTS – Aparts

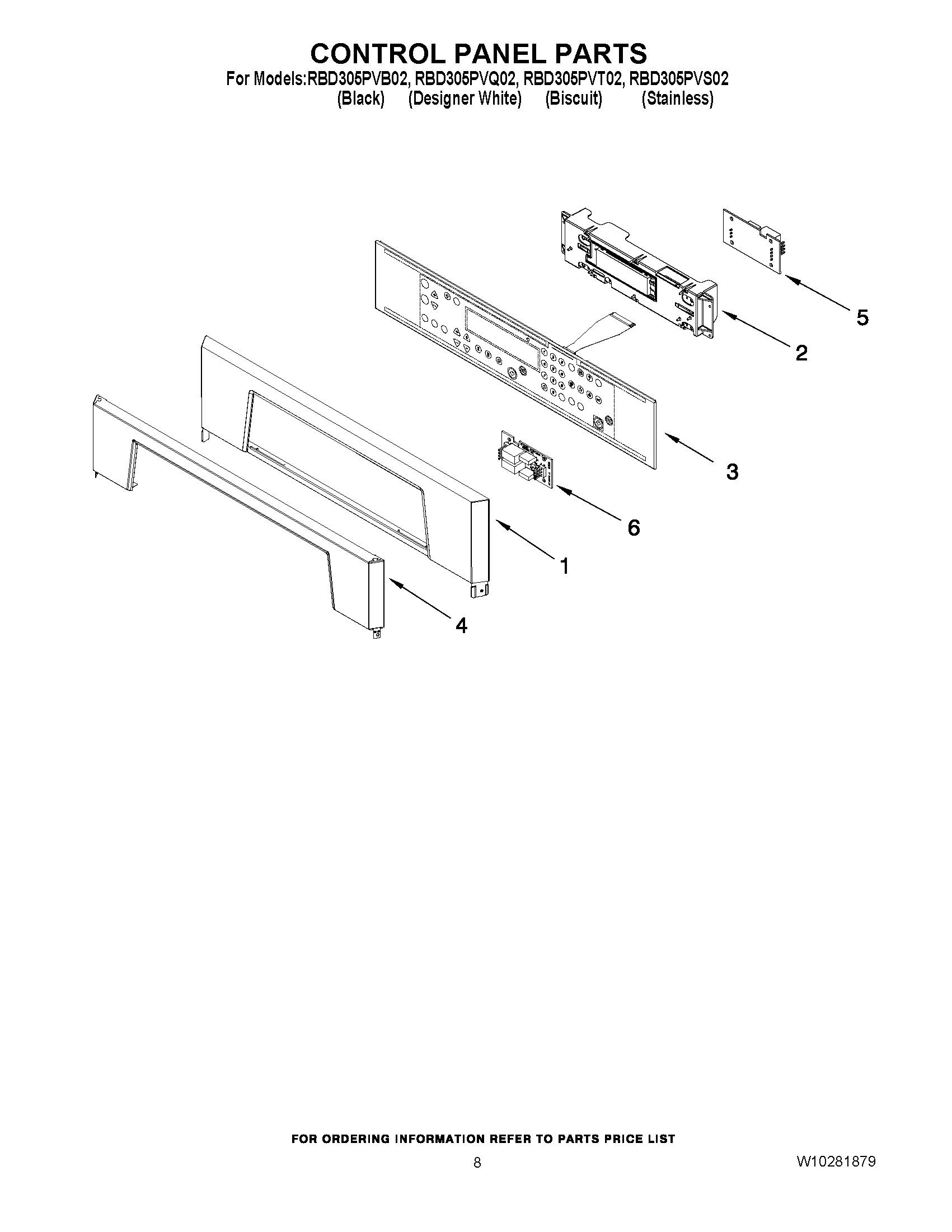

RBD305PVQ02 06 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Panel (Biscuit)
1	WP8302848 Whirlpool Control Panel
1	WP8302849 Whirlpool Control Panel
2	ASSEMBLY, CONTROL ENCLOSURE
3	Membrane Switch (Black)
3	Membrane Switch (White)
3	Membrane Switch (Biscuit)
4	Trim, Control Panel (White)
4	WPW10172165 Whirlpool Trim Panel
4	WPW10172167 Whirlpool Trim Panel
4	Trim, Control Panel (Biscuit)
5	BACKER, CONTROL PANEL
6	Latch, Sister Board
