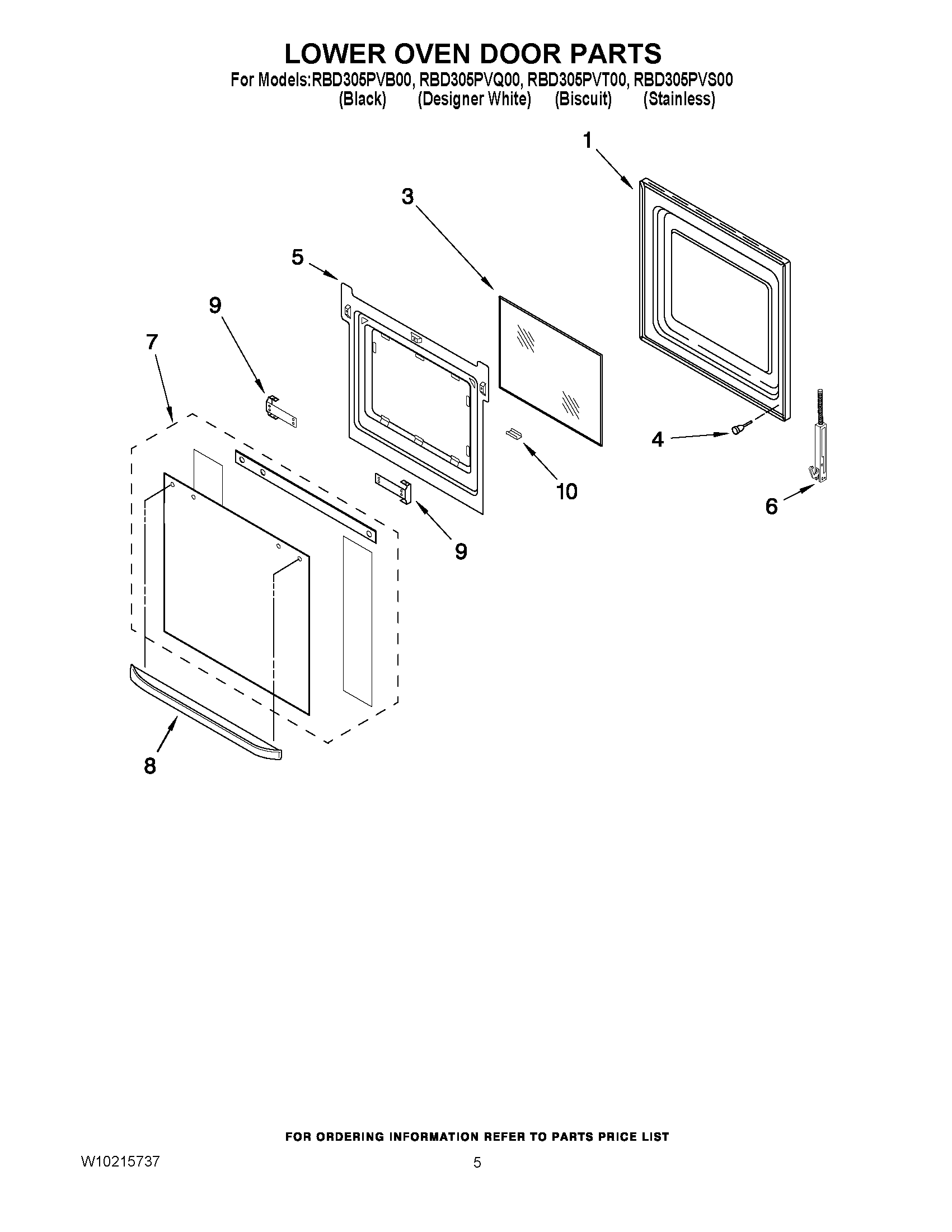

RBD305PVS00 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
3	WP4449259 Whirlpool Glass Window
4	4448520 Whirlpool Oven Bumper
5	WP4449809 Whirlpool Screw
5	WP4457132 Whirlpool Retainer
6	Hinge, Door (Left)
6	Hinge, Door (Right)
6	WP4449743 Whirlpool Screw
6	Hinge, Door (For Stainless Model Only) (Left)
6	Hinge, Door (For Stainless Model Only) (Right)
7	Assembly, Door Glass (Black)
7	W10401225 Whirlpool Oven Outer Door Glass
7	Assembly, Door Glass (Biscuit)
7	Assembly, Door Glass (White)
8	Door Handle (Stainless)
8	Door Handle (Black)
8	Door Handle (White)
8	Door Handle (Biscuit)
9	Bracket, Handle (L.Hand)
9	4455803 Whirlpool Oven Bracket
10	RETAINER,GLASS CLIP (BISCUIT)
10	Clip, Retainer (White Model)
10	Clip, Retainer (Black Model)
10	Retainer, Clip (Stainless)
