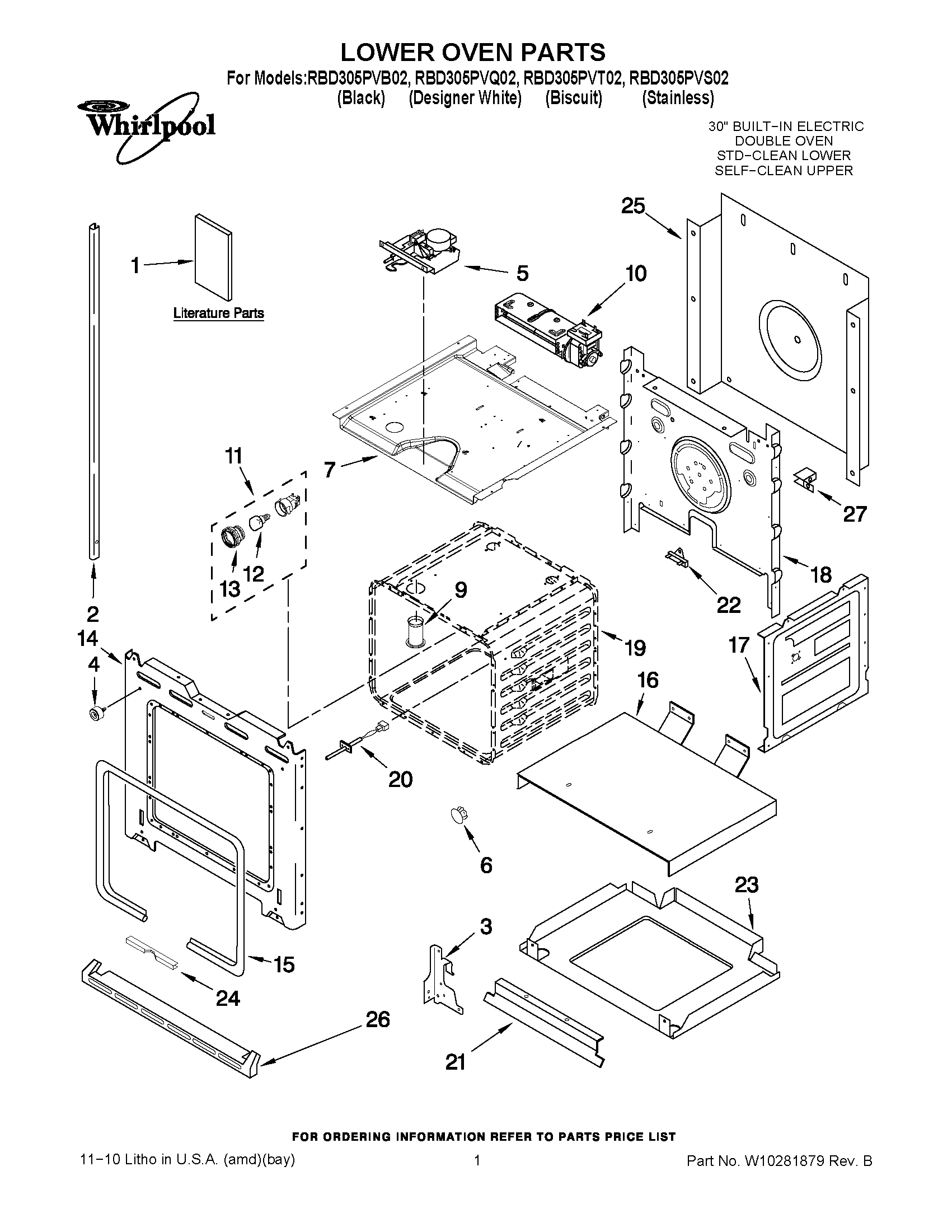

RBD305PVS02 01 – LOWER OVEN PARTS

Products

Position	Product
NI	W11684730 Whirlpool Insulation
NI	WPL 4450365
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	Installation Instructions
1	Tech Sheet (Oven)
1	Use & Care Guide
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	Installation Instructions (Bottom Trim)
2	TRIM, SIDELEFT (STAINLESS)
2	Trim, Side Right (White)
2	WPW10339499 Whirlpool Trim Assembly
2	WPW10339500 Whirlpool Trim
2	WPW10339502 Whirlpool Trim Kit
2	Trim, Side Right (Biscuit)
2	TRIM, SIDELEFT (BISCUIT)
2	Trim, Side Right (Stainless)
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	WPW10195934 Whirlpool Door Latch
6	4450935 Whirlpool Oven Door Plug
7	Top Chassis
9	SCREW
9	W10861715 Whirlpool Vent Tube
10	WPW10016550 Whirlpool Blower Cooling Fan
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Lens, Light (2)
14	WPW10115831 Whirlpool Front Frame
14	Screw
14	WP4450118 Whirlpool Nut
15	GASKET, DOOR
16	Support, Insulation
17	W10782197 Whirlpool Side Panel
18	Back, Chassis
19	CABINET (NOT A SERVICEABLE PART)
20	WPW10131825 Whirlpool Oven Temperature Sensor
21	9760677 Whirlpool Oven Vent Deflector
22	WP4451354 Whirlpool Thermal Fuse Assembly
23	Base, Chassis
24	WP4449154 Whirlpool Screw
24	WP4448933 Whirlpool Retainer
25	WP4451747 Whirlpool Rear Cover
26	WPW10207689 Whirlpool Trim Kit
26	WP3400832 Whirlpool Screw
26	Trim, Bottom Vent (Stainless)
27	WPL 4449845
27	WP4449809 Whirlpool Screw
