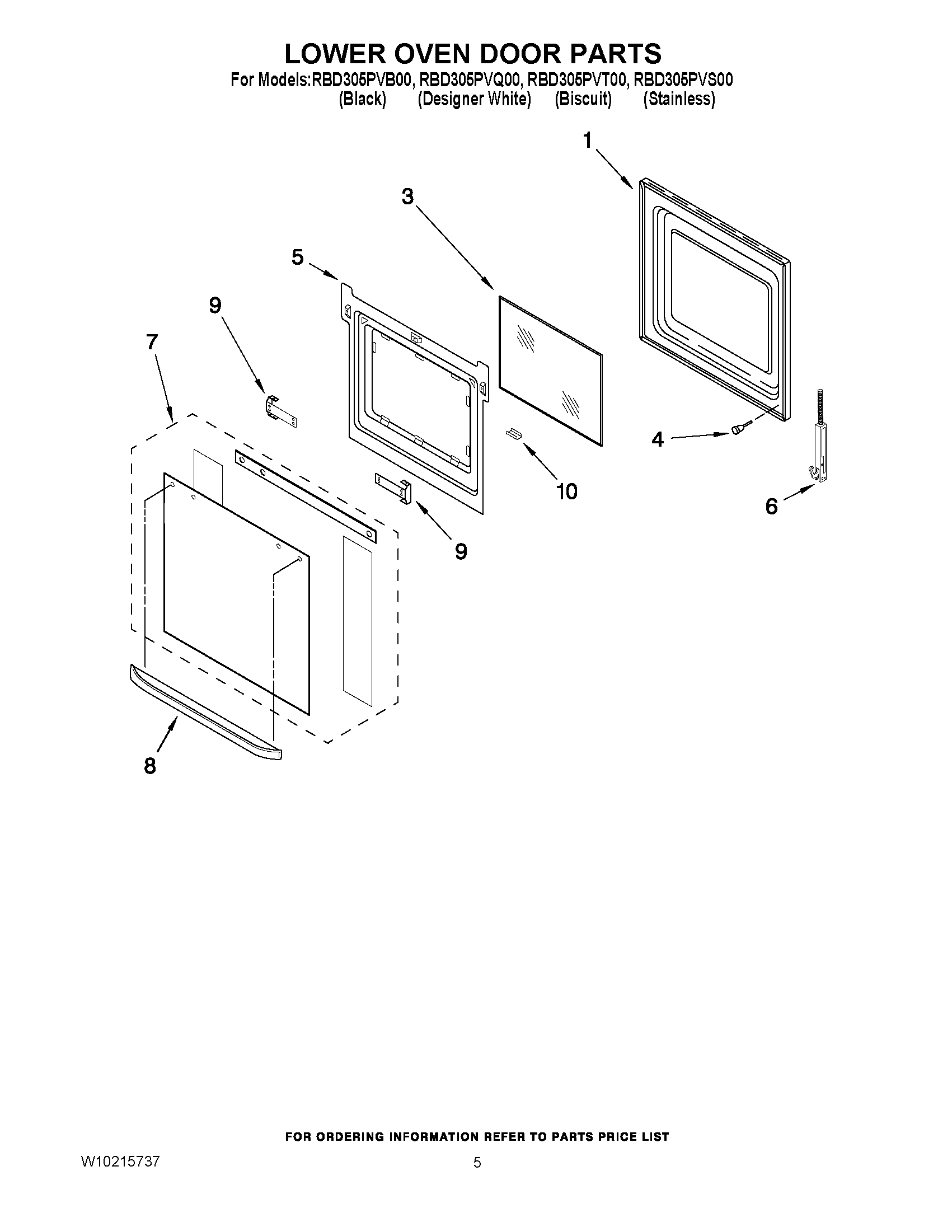

RBD305PVT00 03 – LOWER OVEN DOOR PARTSadmin2025-04-26T11:40:39+00:00RBD305PVT00 03 – LOWER OVEN DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WP9759413 Whirlpool Door Liner |
| 3 | WP4449259 Whirlpool Glass Window |
| 4 | 4448520 Whirlpool Oven Bumper |
| 5 | WP4449809 Whirlpool Screw |
| 5 | WP4457132 Whirlpool Retainer |
| 6 | Hinge, Door (Left) |
| 6 | Hinge, Door (Right) |
| 6 | WP4449743 Whirlpool Screw |
| 6 | Hinge, Door (For Stainless Model Only) (Left) |
| 6 | Hinge, Door (For Stainless Model Only) (Right) |
| 7 | Assembly, Door Glass (Black) |
| 7 | W10401225 Whirlpool Oven Outer Door Glass |
| 7 | Assembly, Door Glass (Biscuit) |
| 7 | Assembly, Door Glass (White) |
| 8 | Door Handle (Stainless) |
| 8 | Door Handle (Black) |
| 8 | Door Handle (White) |
| 8 | Door Handle (Biscuit) |
| 9 | Bracket, Handle (L.Hand) |
| 9 | 4455803 Whirlpool Oven Bracket |
| 10 | RETAINER,GLASS CLIP (BISCUIT) |
| 10 | Clip, Retainer (White Model) |
| 10 | Clip, Retainer (Black Model) |
| 10 | Retainer, Clip (Stainless) |
