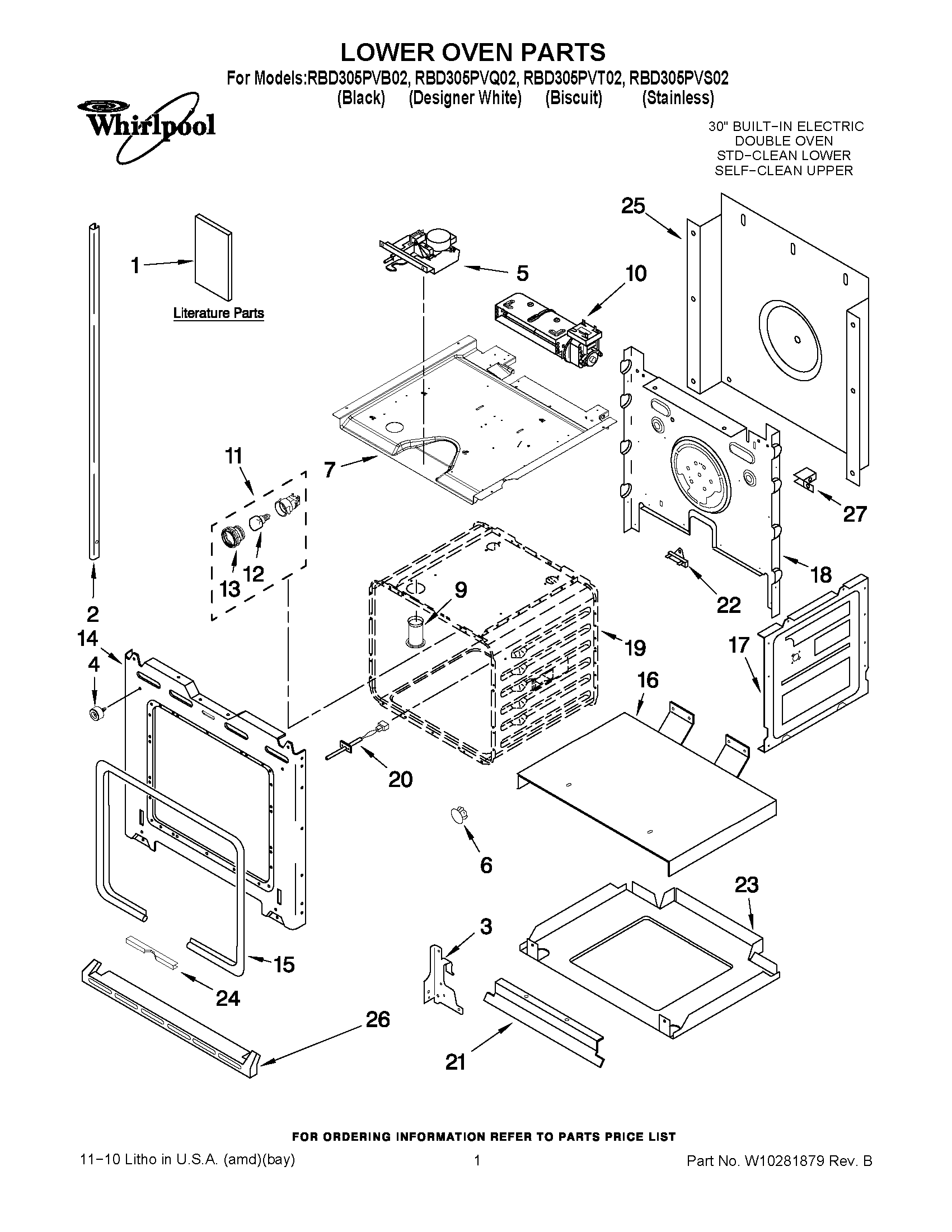

RBD305PVT02 01 – LOWER OVEN PARTS

RBD305PVT02 01 – LOWER OVEN PARTS

Written by

in

RBD305PVT02 01 – LOWER OVEN PARTS

Products

PositionProduct
NIW11684730 Whirlpool Insulation
NIWPL 4450365
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Installation Instructions
1Tech Sheet (Oven)
1Use & Care Guide
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
1Installation Instructions (Bottom Trim)
2TRIM, SIDELEFT (STAINLESS)
2Trim, Side Right (White)
2WPW10339499 Whirlpool Trim Assembly
2WPW10339500 Whirlpool Trim
2WPW10339502 Whirlpool Trim Kit
2Trim, Side Right (Biscuit)
2TRIM, SIDELEFT (BISCUIT)
2Trim, Side Right (Stainless)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
4W10105790 Whirlpool Bumper
5WPW10195934 Whirlpool Door Latch
64450935 Whirlpool Oven Door Plug
7Top Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10WPW10016550 Whirlpool Blower Cooling Fan
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Lens, Light (2)
14WPW10115831 Whirlpool Front Frame
14Screw
14WP4450118 Whirlpool Nut
15GASKET, DOOR
16Support, Insulation
17W10782197 Whirlpool Side Panel
18Back, Chassis
19CABINET (NOT A SERVICEABLE PART)
20WPW10131825 Whirlpool Oven Temperature Sensor
219760677 Whirlpool Oven Vent Deflector
22WP4451354 Whirlpool Thermal Fuse Assembly
23Base, Chassis
24WP4449154 Whirlpool Screw
24WP4448933 Whirlpool Retainer
25WP4451747 Whirlpool Rear Cover
26WPW10207689 Whirlpool Trim Kit
26WP3400832 Whirlpool Screw
26Trim, Bottom Vent (Stainless)
27WPL 4449845
27WP4449809 Whirlpool Screw
