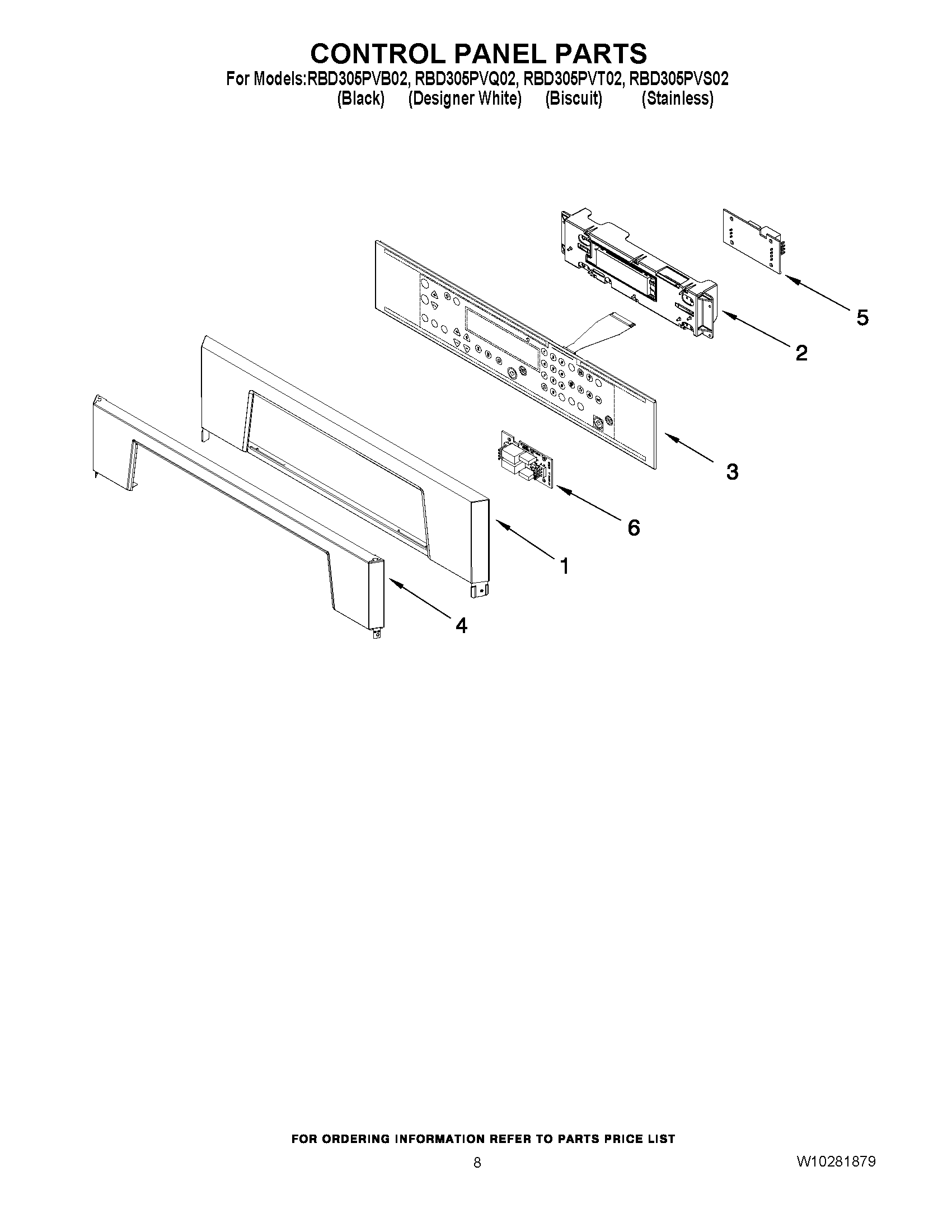

RBD305PVT02 06 – CONTROL PANEL PARTS

RBD305PVT02 06 – CONTROL PANEL PARTS

Written by

in

RBD305PVT02 06 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (Biscuit)
1WP8302848 Whirlpool Control Panel
1WP8302849 Whirlpool Control Panel
2ASSEMBLY, CONTROL ENCLOSURE
3Membrane Switch (Black)
3Membrane Switch (White)
3Membrane Switch (Biscuit)
4Trim, Control Panel (White)
4WPW10172165 Whirlpool Trim Panel
4WPW10172167 Whirlpool Trim Panel
4Trim, Control Panel (Biscuit)
5BACKER, CONTROL PANEL
6Latch, Sister Board
