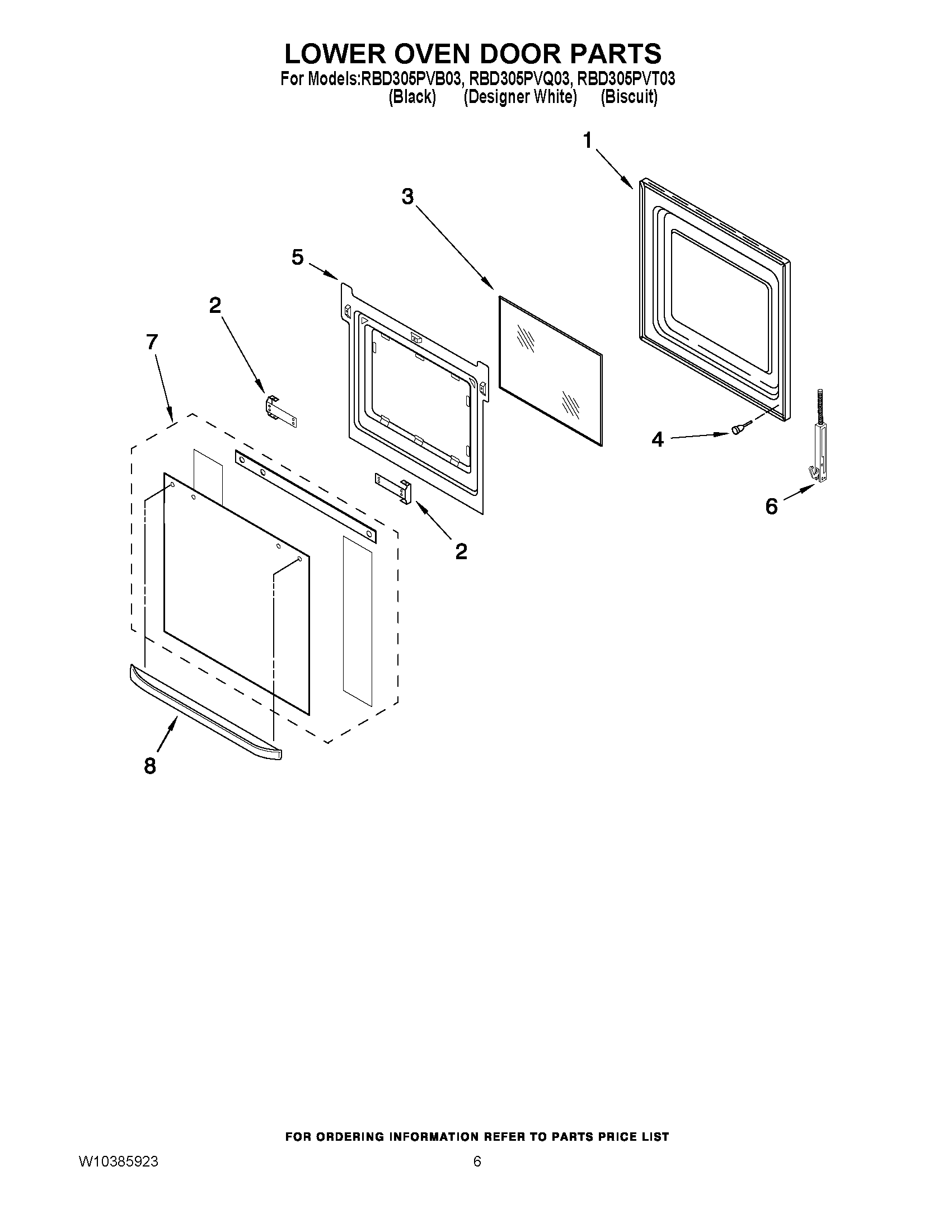

RBD305PVT03 04 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	4455803 Whirlpool Oven Bracket
2	Bracket, Handle (L.Hand)
3	WP4449259 Whirlpool Glass Window
4	4448520 Whirlpool Oven Bumper
5	SCREW
5	WP4457132 Whirlpool Retainer
6	Hinge, Door (For Stainless Model Only) (Left)
6	Hinge, Door (For Stainless Model Only) (Right)
6	WP4449743 Whirlpool Screw
7	Assembly, Door Glass (Black)
7	Assembly, Door Glass (White)
7	Assembly, Door Glass (Biscuit)
8	Door Handle (Black)
8	Door Handle (White)
8	Door Handle (Biscuit)
