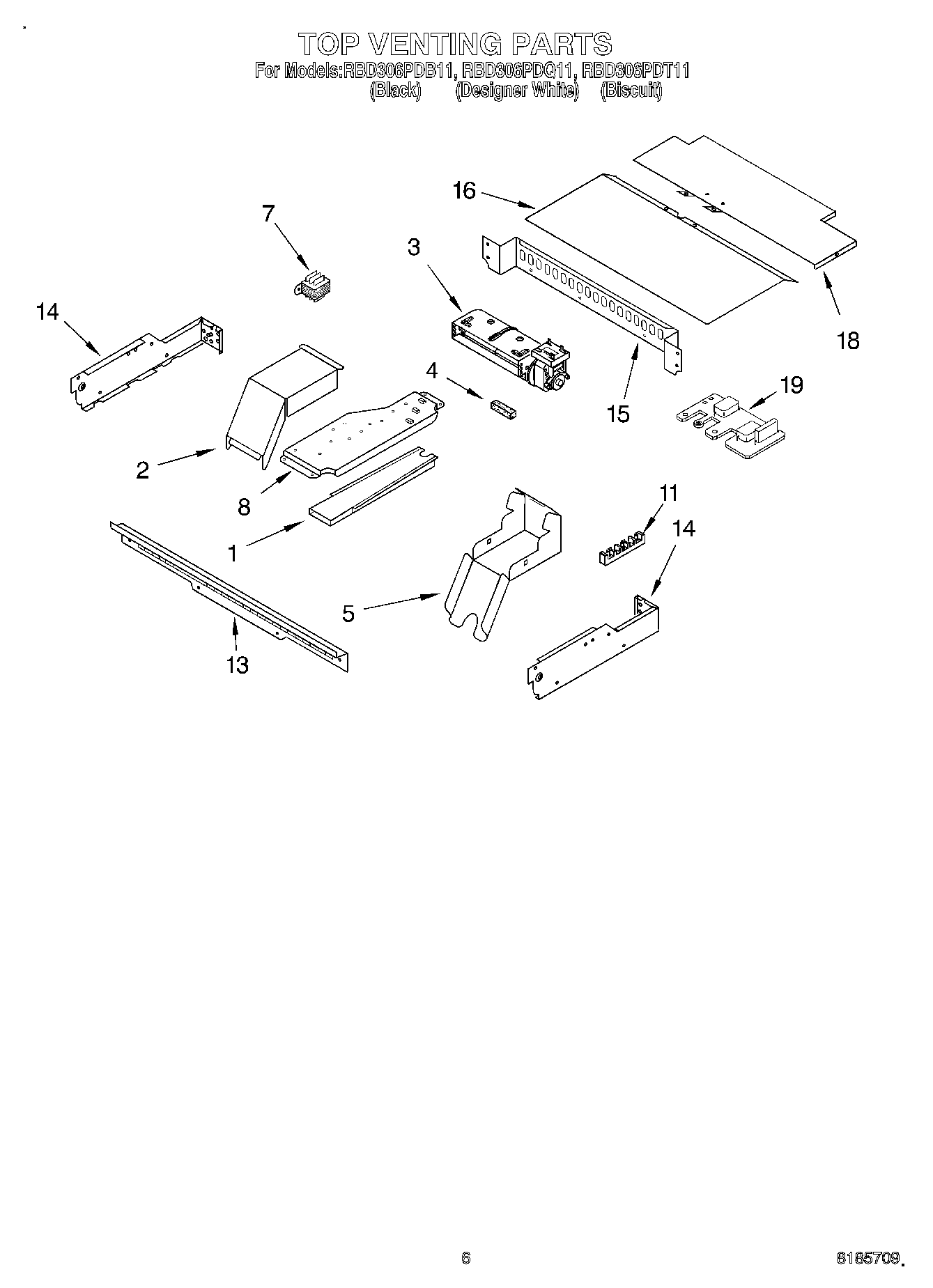

RBD306PDB11 05 – TOP VENTING, OPTIONAL

RBD306PDB11 05 – TOP VENTING, OPTIONAL

Written by

in

RBD306PDB11 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
1Screw
24455178 Whirlpool Oven Top Elbow
3WP4455352 Whirlpool Mounting Bracket
3Blower
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
7Transformer, Control
8Plate, Mounting
11WP8203546 Whirlpool Terminal Block
11Screw
13WP4450038 Whirlpool Screw
13Vent, Control Panel
14WP4449154 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
19WPL 591014
194451761 Whirlpool Oven Support Bracket
19Wire (12 Ga. 150 c Black)
19261900 Whirlpool Microwave Spray
19Harness, Wire (Latch)
1918 Ga. 80~c Rating (Red)
19Wire (14 Ga. 200 c Brown)
191
19WP4451985 Whirlpool Noise Filter Board
19Harness, Wire (Main)
19Wire (14 Ga. 150 c Yellow)
1972032 Whirlpool Touch Up Paint Black
19285006 Whirlpool Spray
19WPW10339879 Whirlpool Wire Tie
194450800 Whirlpool Oven Screw
194448664 Whirlpool Oven Mounting Bracket
19Wire, 25“ Roll (White 14 GA.)
19Wire, 25` Roll (Red 14 Ga.)
19Wire, 25` Roll (Black 14 Ga.)
19WP112432 Whirlpool Nut Assembly
19WP4449809 Whirlpool Screw
1972017 Whirlpool Appliance Touch-Up Paint White
19WP482338 Whirlpool Refrigerator Adhesive
19814381 Whirlpool Pin
19Wire (14 Ga. 150 c Orange)
19Wire (14 Ga. 150 c Green)
19Wire (14 Ga. 150 c Brown)
19Wire (14 Ga. 150 c Blue)
19WP261869 Whirlpool Microwave Paint
19242831 Whirlpool Oven Wire
19Spacer, Harness
1916515 Whirlpool Clip
19Conduit, Double
194455191 Whirlpool Oven Mounting Plate
19WP4448950 Whirlpool Screw
19350930 Whirlpool White Spray Paint
