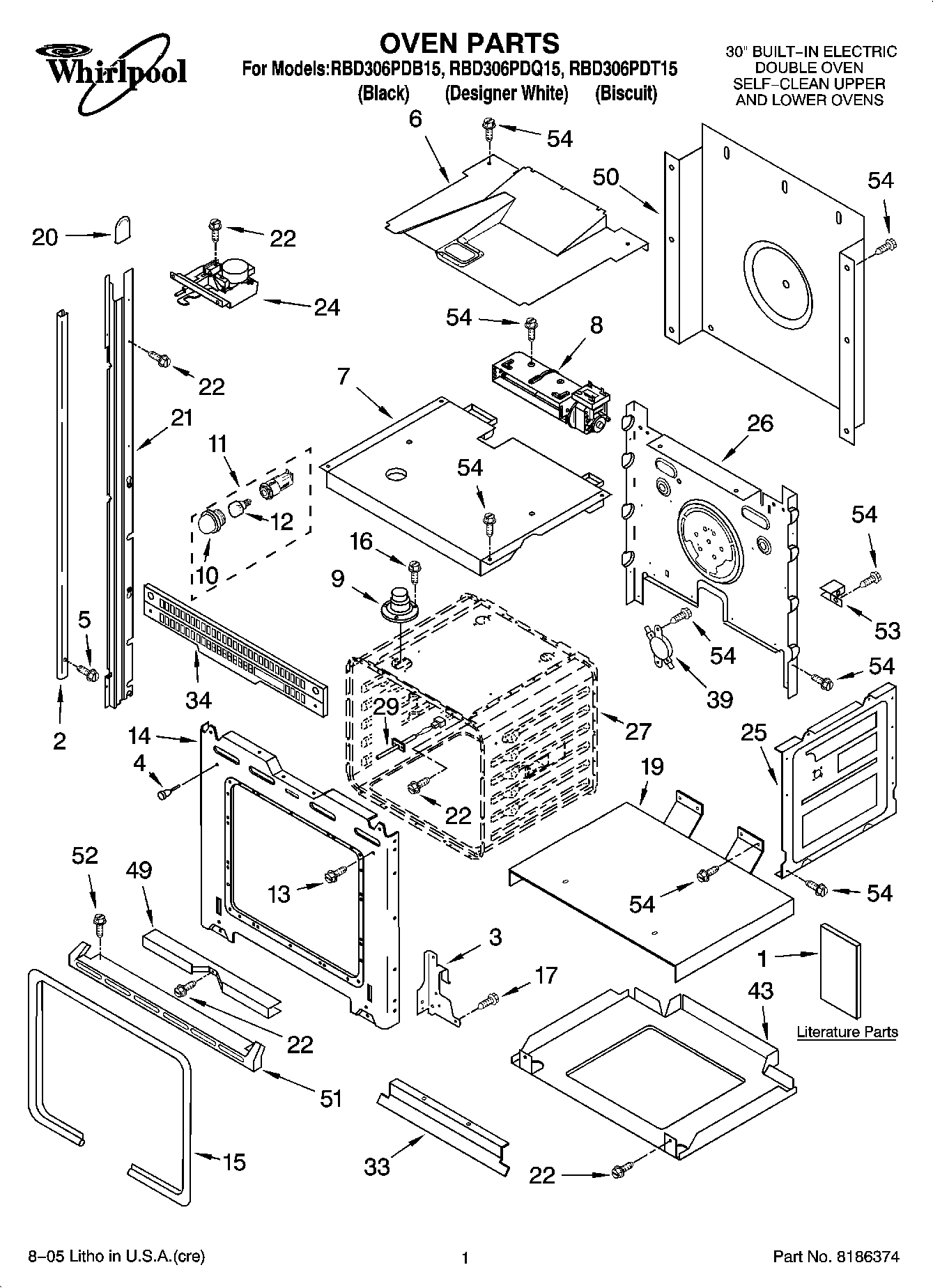

RBD306PDQ15 01 – OVEN PARTS

Products

PositionProduct
1Tech Sheet (Oven)
1Use & Care Guide (Oven)
1Installation Instructions
1Safe Cooking Tips (French)
1Safe Cooking Tips
2Trim, Side (RH Black)
2Trim, Side (Right Hand) (White Model)
2Trim, Side (LH Black)
2Trim, Side (Left Hand)) (White Model)
2Trim, Side (RH Biscuit)
2Trim, Side (LH Biscuit)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
5WP8281236 Whirlpool Screw
5WP694091 Whirlpool Screw
6Divider, Vent
7Top, Chassis
8WPW10016550 Whirlpool Blower Cooling Fan
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16SCREW
17WP4449743 Whirlpool Screw
19Support, Insulation
20Cap, Spacer
21814374 Whirlpool Oven Rail Mount
21814373 Whirlpool Oven Rail Mount
22WP4449154 Whirlpool Screw
24WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
33Deflector, Vent
34Vent, Center
39WP9759243 Whirlpool Thermostat
39WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPL 4448477
51WPL 4448478
51WPL 4452415
52WP3400832 Whirlpool Screw
53WPL 4449845
54WPL 4450365
54W11684730 Whirlpool Insulation
54WP4449809 Whirlpool Screw
54FOLLOWING PARTS NOT ILLUSTRATED INSULATION
